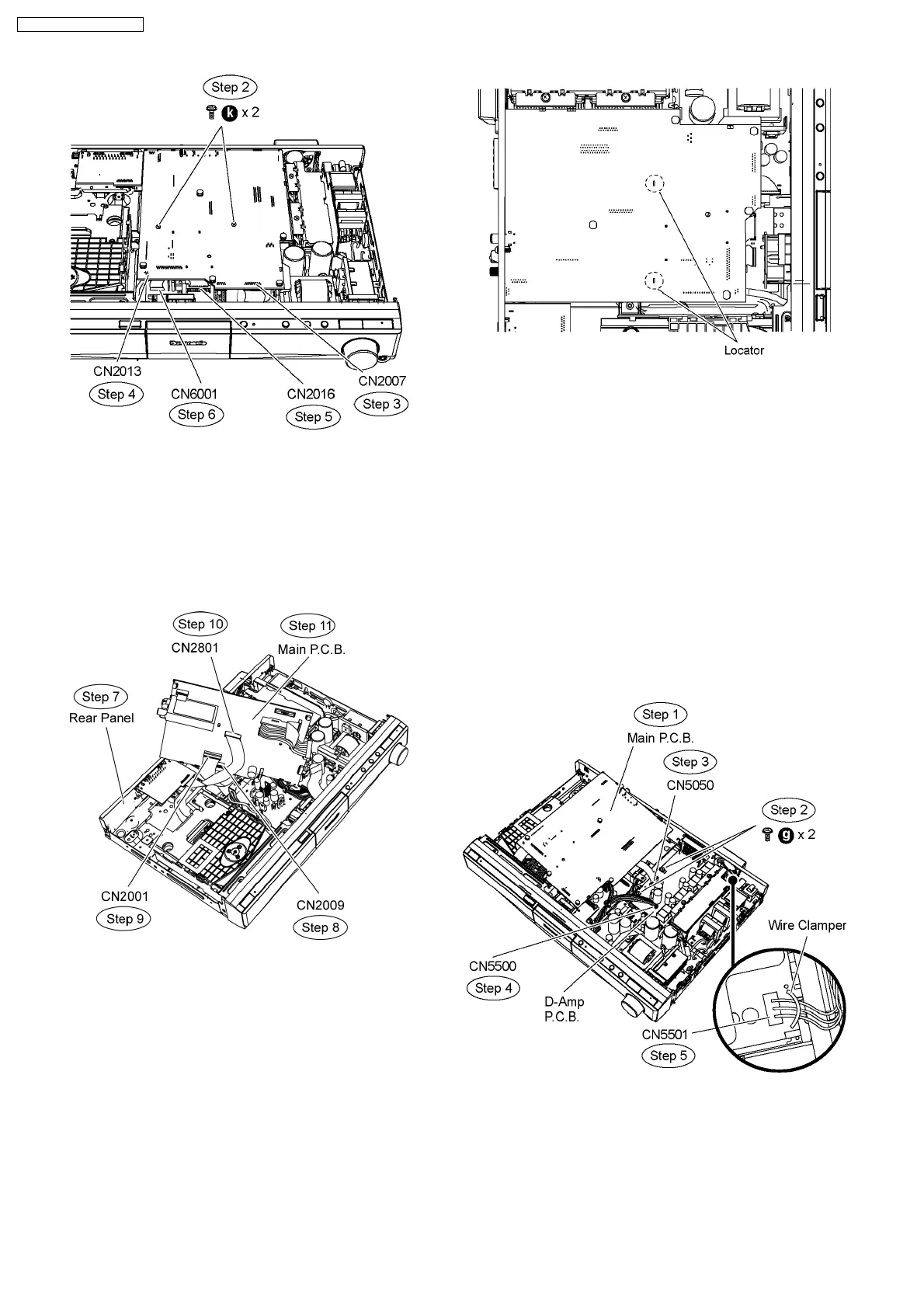

Step 7 Detach Main P.C.B. from the rear panel.
Step 8 Turn over Main P.C.B. to detach 17P FFC cable at the
connector (CN2009) on the Main P.C.B.
Step 9 Detach 50P FFC cable at the connector (CN2001) on
the Main P.C.B.
Step 10 Detach 22P FFC cable at the connector (CN2801) on
the Main P.C.B.
Step 11 Remove Main P.C.B.
Special Note: During reassembling procedures, ensure the
P.C.B. is seated properly at the locators.
9.16. Disassembly of D-Amp P.C.B.
•
• •
• Follow (Step 1) to (Step 3) of Item 9.3.
•
• •
• Follow (Step 1) to (Step 4) of Item 9.14.
•
• •
• Follow (Step 1) to (Step 5) of Item 9.15.
Step 1 Move aside Main P.C.B. and position it according to the
diagram shown.
Step 2 Remove 2 screws on D-Amp P.C.B.
Step 3 Detach 17P cable at the connector (CN5050) on D-Amp
P.C.B.
Step 4 Detach 8P cable at the connector (CN5500) on D-Amp
P.C.B.
Step 5 Twist the wire clamper to detach 3P cable at the
connector (CN5501) on D-Amp P.C.B.
Step 6 Remove 2 screws at the rear panel.
Step 7 Release the tab of the rear panel in the direction of
arrow.
Step 8 Remove D-Amp P.C.B.
