Panasonic SA-PT460 - 10 Assembling and Disassembling of DVD Mechanism Unit; 10.1. Disassembling Procedures

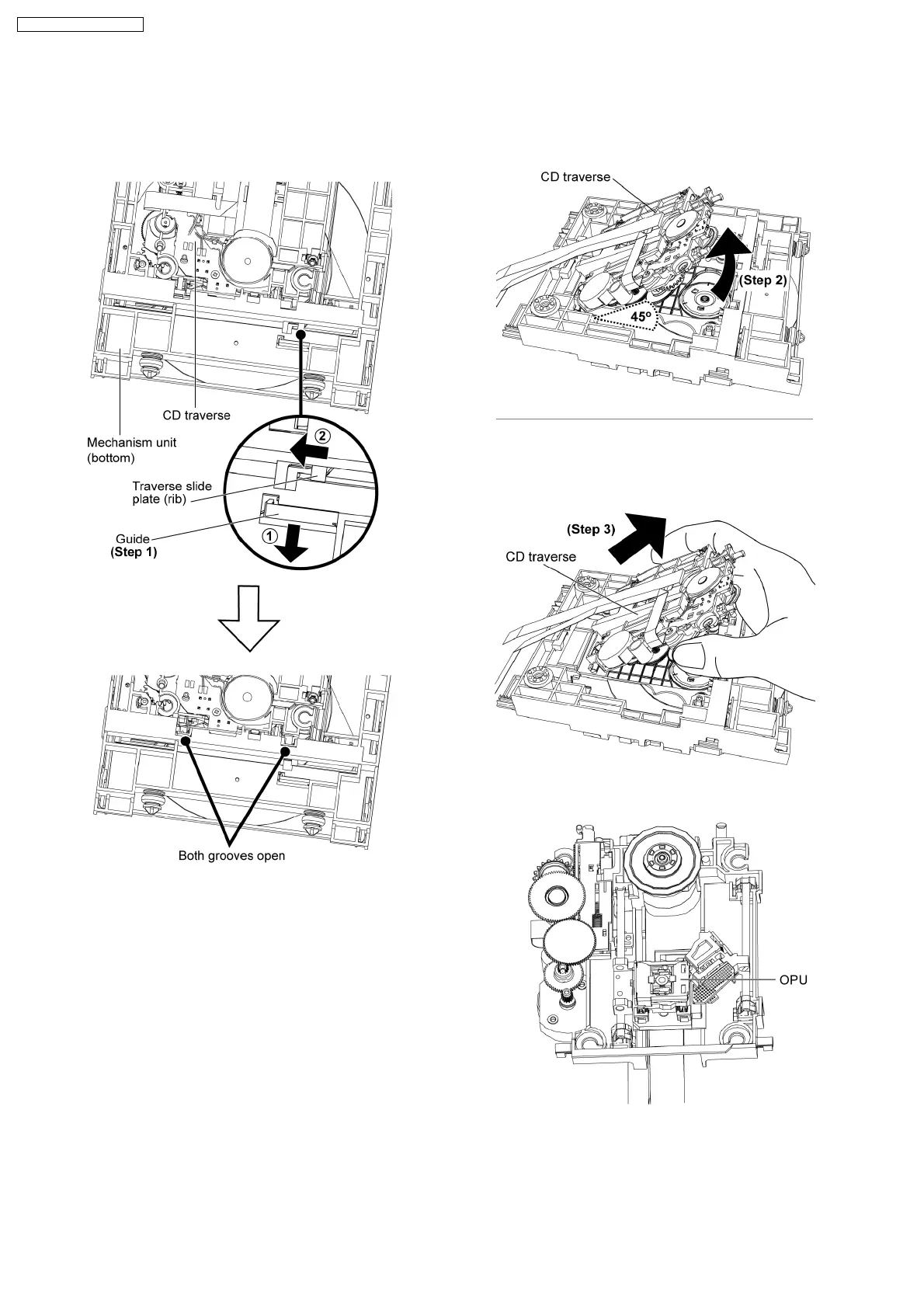

10.1.1. Disassembly of CD traverse
Step 1: Release the guide and slide the traverse
slide plate (rib) as arrows shown.
Step 2: Lift up the CD traverse approximately 45°
as shown.
Step 3: Slide out the CD traverse as arrow shown.
Caution: Do not touch the surface of the CD
traverse and place it so that the OPU is on top.
