Panasonic SA-VK81DEE - Electrical Parts List

Ref. No. Part No. Part Name & Description Remarks
CABINET AND CHASSIS
1 ENG07802QF TUNER PACK [M]
2 L6FALEFH0020 FAN COVER UNIT [M]
3 L6FALEFH0023 FAN [M]
4 REEX0202 10P FFC [M]
5 REEX0370 30P FFC WIRE [M]
6 REEX0371 14P FFC WIRE [M]
7 REEX0380 50P FFC WIRE [M]
8 REEX0381 14P FFC PANEL-DECK [M]
9 REEX0382 28P FFC (PANEL-MAIN) [M]
10 REXX0315 2P FLAT WIRE (PANEL [M]
11 RGKX0274-S CD LID [M]
12 RGKX0275-S1 CONTROL PANEL [M]
13 RGLX0095-Q POWER LIGHT CHIP [M]
14 RGLX0096-Q CONTROL PANEL LIGHT [M]
15 RGPX0160A1S4 FRONT PANEL [M]
16 RGRX0037C-B REAR PANEL [M]
17 RGUX0583-S POWER BUTTON [M]
18 RGUX0584-S CD CONTROL BUTTON [M]
19 RGUX0585-1S FUNCTION BUTTON [M]
20 RGWX0056-S MIC VOL KNOB [M]
21 RGWX0072-S VOLUME KNOB [M]
22 RHD30004-2S SCREW [M]
23 RKA0072-KJ LEG CUSHION [M]
24 RKFX0093-K CASS. HOLDER (L) [M]
25 RKFX0094-K CASS. HOLDER (R) [M]
26 RKFX0123-1S CASS LID (L) [M]
Ref. No. Part No. Part Name & Description Remarks
PRINTED CIRCUIT BOARD
REP3654Q DVD MODULE P.C.B. (SIDE:
A)
[M](RTL)
REP3654Q DVD MODULE P.C.B. (SIDE:B) [M](RTL)
REPX0433A MAIN P.C.B. [M](RTL)
REPX0434G PANEL P.C.B. [M](RTL)
REPX0434G MIC P.B.C. [M](RTL)
REPX0434G TACT P.C.B. [M](RTL)
REPX0432E POWER SUPPLY P.C.B. [M](RTL)
REPX0432E POWER AMP P.C.B. [M](RTL)
REPX0432E POWER P.C.B. [M](RTL)
REPX0331C DECK P.C.B. [M](RTL)
REPX0321B DECK MECHANISM P.C.B. [M](RTL)
REPX0431C TRANSFORMER P.C.B. [M](RTL)
REPX0431C AC INLET P.C.B. [M](RTL)
REP3569A CD LOADING P.C.B. [M](RTL)
INTEGRATED CIRCUITS
IC11 C0GAG0000007 IC UP/DOWN MOTOR DRIVE [M]
IC21 C0GAG0000007 IC LOADING MOTOR DRIVE [M]
IC951 CNB13030R2AU IC PHOTO INTERRUPTOR [M]
IC971 CNB13030R2AU IC PHOTO INTERRUPTOR [M]
IC1001 AN7348S-E1 IC P.B. EQ/REC AMP/ALC/TPS
AMP
[M]
IC1004 C1AA00000612 IC R/P SELECT [M]
IC2801 C0CBADG00005 IC 5V REGULATOR [M]
IC2802 C0DBAZG00033 IC DC TO DC CONVERTER [M]
IC2803 C0DBAZG00033 IC DC TO DC CONVERTER [M]
IC2806 C0CBADG00005 IC 5V REGULATOR [M]
IC2807 C0DBEFG00003 IC REGULATOR [M]
IC2808 C0CBADG00005 IC 5V REGULATOR [M]
IC2809 C9ZB00000377 IC VIDEO BUFFER [M]
IC2811 C0AABB000117 IC HP AMP [M]
IC2812 KIA4558FEL IC DUAL OP-AMP [M]
IC2813 C1BB00000801 IC KARAOKE [M]
IC2815 C1BB00000845 IC ASP [M]
IC2816 C0ABCB000052 IC QUAD OP-AMP [M]
IC2817 C0ABCB000052 IC QUAD OP-AMP [M]
Ref. No. Part No. Part Name & Description Remarks
27 RKFX0124-1S CASS LID (R) [M]
28 RKMX0077E-S TOP CABINET (BENT) [M]
29 RKWX0236-H3 FL WINDOW [M]
30 RKWX0238-S REMOTE SENSOR WINDOW [M]
31 RMBX0021 CASS OPEN SPRING [M]
32 RMBX0033 CD LID OPEN SPRING [M]
33 RMCX0020 REGMATOR IC CLIP [M]
34 RMKX0062 BOTTOM CHASSIS [M]
35 RMKX0096 DVD CHASSIS [M]
36 RMNX0019 PCB HOLDER [M]
37 RMNX0029C-A SUB TRANS HOLDER [M]
38 RMNX0133 MIC JACK HOLDER [M]
39 RMNX0134 FL HOLDER [M]
40 RUS757ZAA CASS HALF SPRING [M]
41 RXGX0002 DAMPER GEAR [M]
42 RXXX0035-2J HEAT SINK UNIT [M]
43 SHE187-5J PCB SUPPORT [M]
44 XTB3+10J SCREW [M]
45 XTB3+10JFZ SCREW [M]
46 XTB3+20J SCREW [M]
47 XTBS26+10J SCREW [M]
48 XTBS3+8JFZ1 SCREW [M]
49 XTW3+15T SCREW [M]
50 XTW3+8T SCREW [M]
51 RMG0547-K CUSHION [M]
52 RMC0158-S2 TR-FIXTURE [M]
53 RYQX0131A-S1 CD LID COVER UNIT [M]
54 RMAX0068 CD LID SUPPORT [M]
Ref. No. Part No. Part Name & Description Remarks
IC2818 C0JBAR000292 IC ANALOG SW [M]
IC2819 KIA4558FEL IC DUAL OP-AMP [M]
IC5801 RSN309W44B IC POWER HIC [M]
IC5802 C5BA00000113 IC VOLTAGE REGULATOR [M]
IC5803 RSN312H24-P IC POWER AMP [M]
IC6800 C2CBJG000486 IC MICROPROCESSOR [M]
IC6802 C1BB00000086 IC SPECTRUM ANALYZER [M]
IC6803 C0HBB0000039 IC FL DRIVER [M]
IC8001 MN2DS0003APH IC DV2.1 LSI [M]
IC8051 C3ABPG000133 IC 64MB SDRAM [M]
IC8111 C0CBCBD00018 IC POWER SUPPLY [M]
IC8251 C0GBG0000044 IC MOTOR DRIVE [M]
IC8271 C0GBF0000004 IC MOTOR DRIVE [M]
IC8451 C0FBBK000036 IC AUDIO DAC [M]
IC8601 C0EBE0000384 IC VOLTAGE DETECTING [M]
IC8605 C0EBA0000031 IC RESET [M]
IC8651 RFKFMH81T161 IC FLASH ROM [SPC]
IC8691 C0JBAA000346 IC AND GATE LOGIC [M]
IC8695 C0JBAA000346 IC AND GATE LOGIC [M]
TRANSISTORS
Q1 B3NAA0000068 TRANSISTOR [M]
Q1001 B1ABCF000131 TRANSISTOR [M]
Q1003 B1AAGC000007 TRANSISTOR [M]
Q1004 B1AAGC000007 TRANSISTOR [M]
Q1005 B1AAGC000007 TRANSISTOR [M]
Q1007 B1ABCF000131 TRANSISTOR [M]
Q1012 B1ABEB000001 TRANSISTOR [M]
Q1013 B1ABEB000001 TRANSISTOR [M]
Q1014 B1ABCF000011 TRANSISTOR [M]
Q1015 B1ABCF000011 TRANSISTOR [M]
Q1016 B1GDCFJJ0023 TRANSISTOR [M]
Q1017 B1AARC000002 TRANSISTOR [M]
Q1020 B1ABEB000001 TRANSISTOR [M]
Q1021 B1ABEB000001 TRANSISTOR [M]
Q2802 B1ADCF000001 TRANSISTOR [M]
Q2806 B1GBCFJN0021 TRANSISTOR [M]
Q2810 B1GBCFJN0021 TRANSISTOR [M]

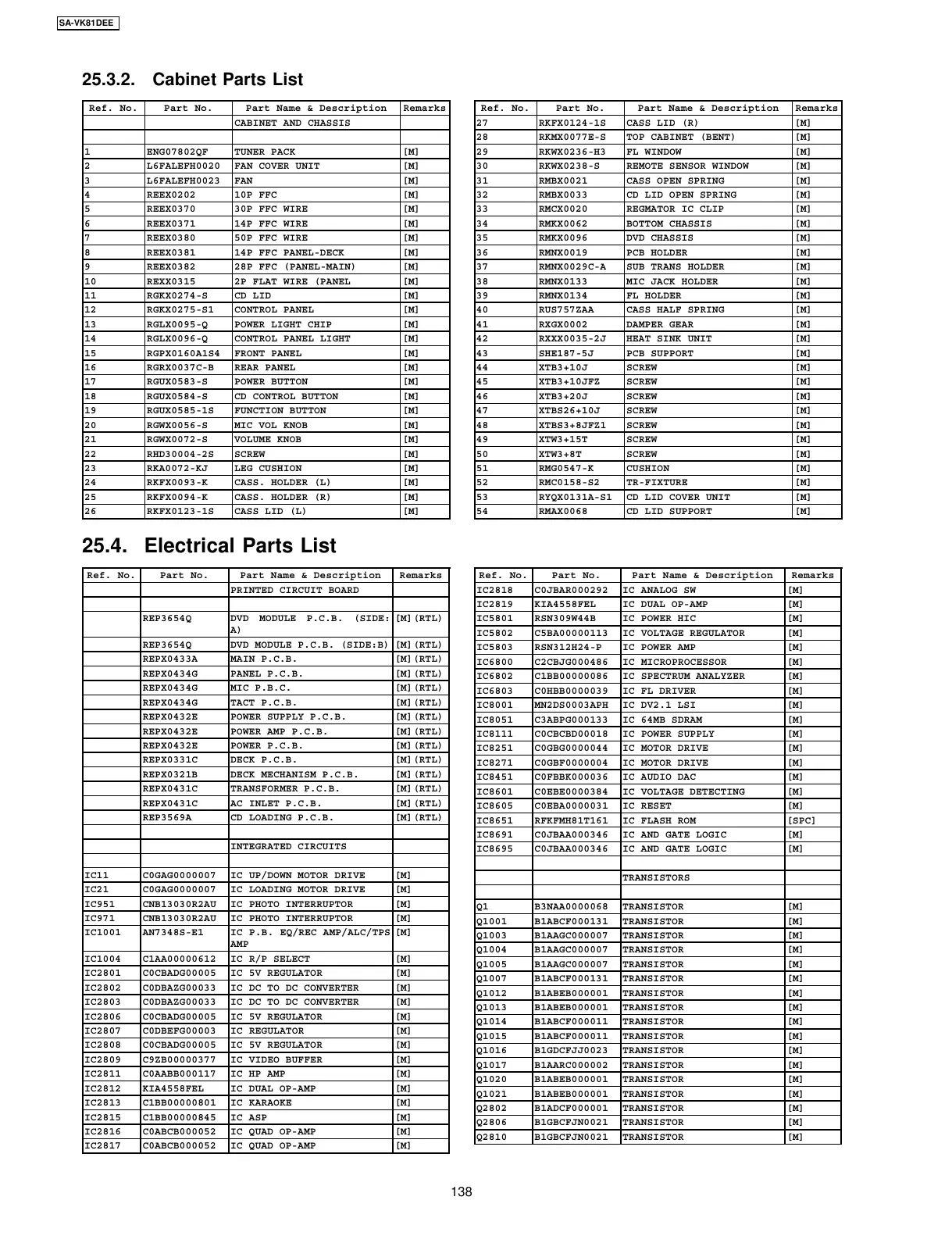

25.3.2. Cabinet Parts List
25.4. Electrical Parts List
138
SA-VK81DEE
