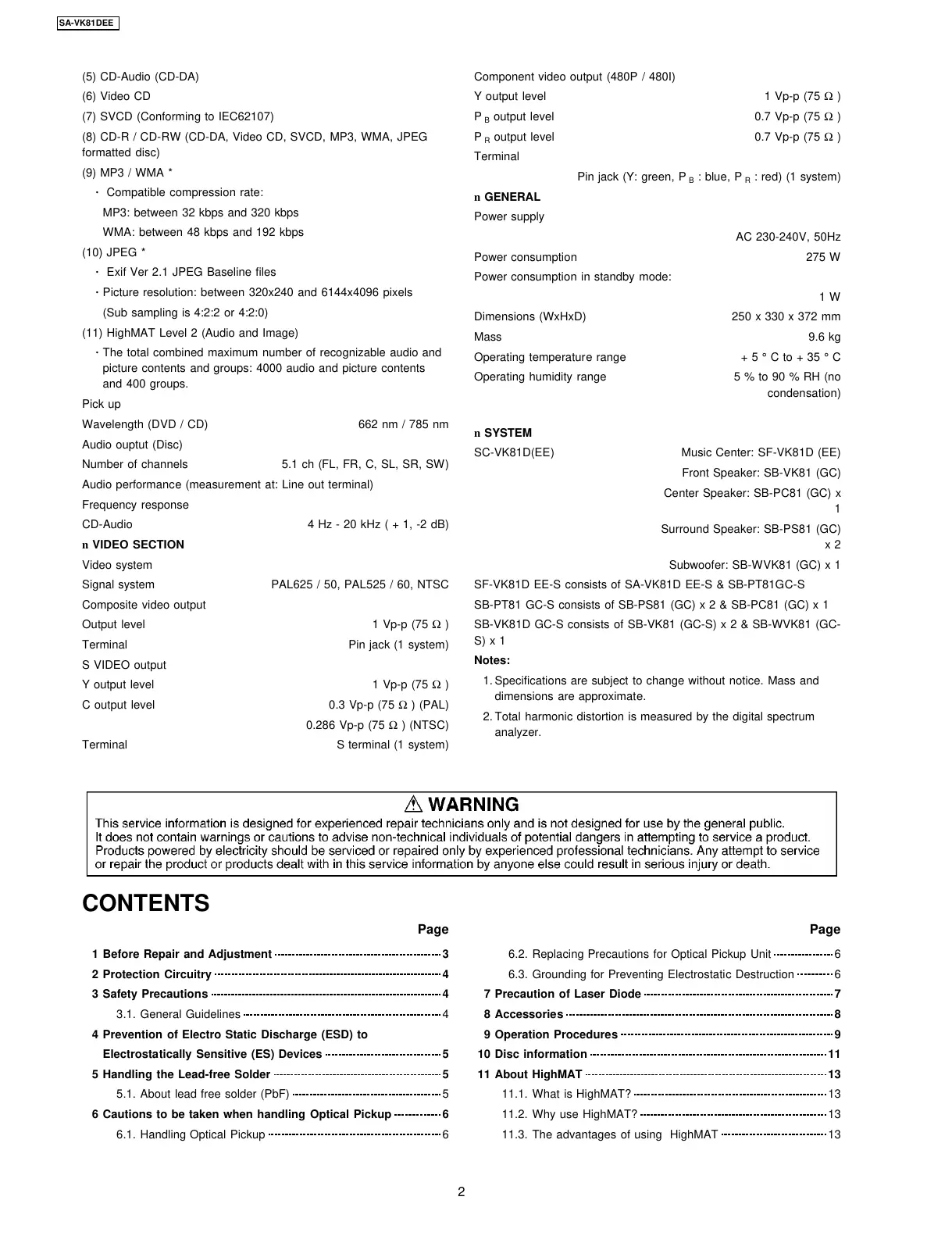

(5) CD-Audio (CD-DA)
(6) Video CD
(7) SVCD (Conforming to IEC62107)
(8) CD-R / CD-RW (CD-DA, Video CD, SVCD, MP3, WMA, JPEG
formatted disc)
(9) MP3 / WMA *
· Compatible compression rate:
MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 192 kbps
(10) JPEG *
· Exif Ver 2.1 JPEG Baseline files
· Picture resolution: between 320x240 and 6144x4096 pixels
(Sub sampling is 4:2:2 or 4:2:0)
(11) HighMAT Level 2 (Audio and Image)
· The total combined maximum number of recognizable audio and
picture contents and groups: 4000 audio and picture contents
and 400 groups.
Pick up
Wavelength (DVD / CD) 662 nm / 785 nm
A
udio ouptut (Disc)
Number of channels 5.1ch(FL,FR,C,SL,SR,SW)
A
udio performance (measurement at: Line out terminal)
Frequency response
CD-Audio 4Hz-20kHz(+1,-2dB)
n VIDEO SECTION
Video system
Signal system PAL625 / 50, PAL525 / 60, NTSC
Composite video output
Output level 1Vp-p(75Ω )
Terminal Pin jack (1 system)
S VIDEO output
Y output level 1Vp-p(75Ω )
C output level 0.3 Vp-p (75 Ω )(PAL)
0.286 Vp-p (75 Ω )(NTSC)
Terminal S terminal (1 system)
1 Before Repair and Adjustment
3
2 Protection Circuitry
4
3 Safety Precautions
4
3.1. General Guidelines
4
4 Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices
5
5 Handling the Lead-free Solder
5
5.1. About lead free solder (PbF)
5
6 Cautions to be taken when handling Optical Pickup
6
6.1. Handling Optical Pickup
6
Component video output (480P / 480I)
Y output level 1Vp-p(75Ω )
P
B
output level 0.7Vp-p(75Ω )
P
R
output level 0.7Vp-p(75Ω )
Terminal
Pin jack (Y: green, P
B
:blue,P
R
:red)(1system)
n GENERAL
Power supply
AC 230-240V, 50Hz
Power consumption 275 W
Power consumption in standby mode:
1W
Dimensions (WxHxD) 250 x 330 x 372 mm
Mass 9.6 kg
Operating temperature range +5°Cto+35°C
Operating humidity range 5%to90%RH(no
condensation)
n SYSTEM
SC-VK81D(EE) Music Center: SF-VK81D (EE)
Front Speaker: SB-VK81 (GC)
Center Speaker: SB-PC81 (GC) x
1
Surround Speaker: SB-PS81 (GC)
x2
Subwoofer: SB-WVK81 (GC) x 1
SF-VK81D EE-S consists of SA-VK81D EE-S & SB-PT81GC-S
SB-PT81 GC-S consists of SB-PS81 (GC) x 2 & SB-PC81 (GC) x 1
SB-VK81D GC-S consists of SB-VK81 (GC-S) x 2 & SB-WVK81 (GC-
S) x 1
Notes:
1. Specifications are subject to change without notice. Mass and
dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
6.2. Replacing Precautions for Optical Pickup Unit
6
6.3. Grounding for Preventing Electrostatic Destruction
6
7 Precaution of Laser Diode
7
8 Accessories
8
9 Operation Procedures
9
10 Disc information
11
11 About HighMAT
13
11.1. What is HighMAT?
13
11.2. Why use HighMAT?
13
11.3. The advantages of using HighMAT
13
CONTENTS
Page Page
2
SA-VK81DEE
