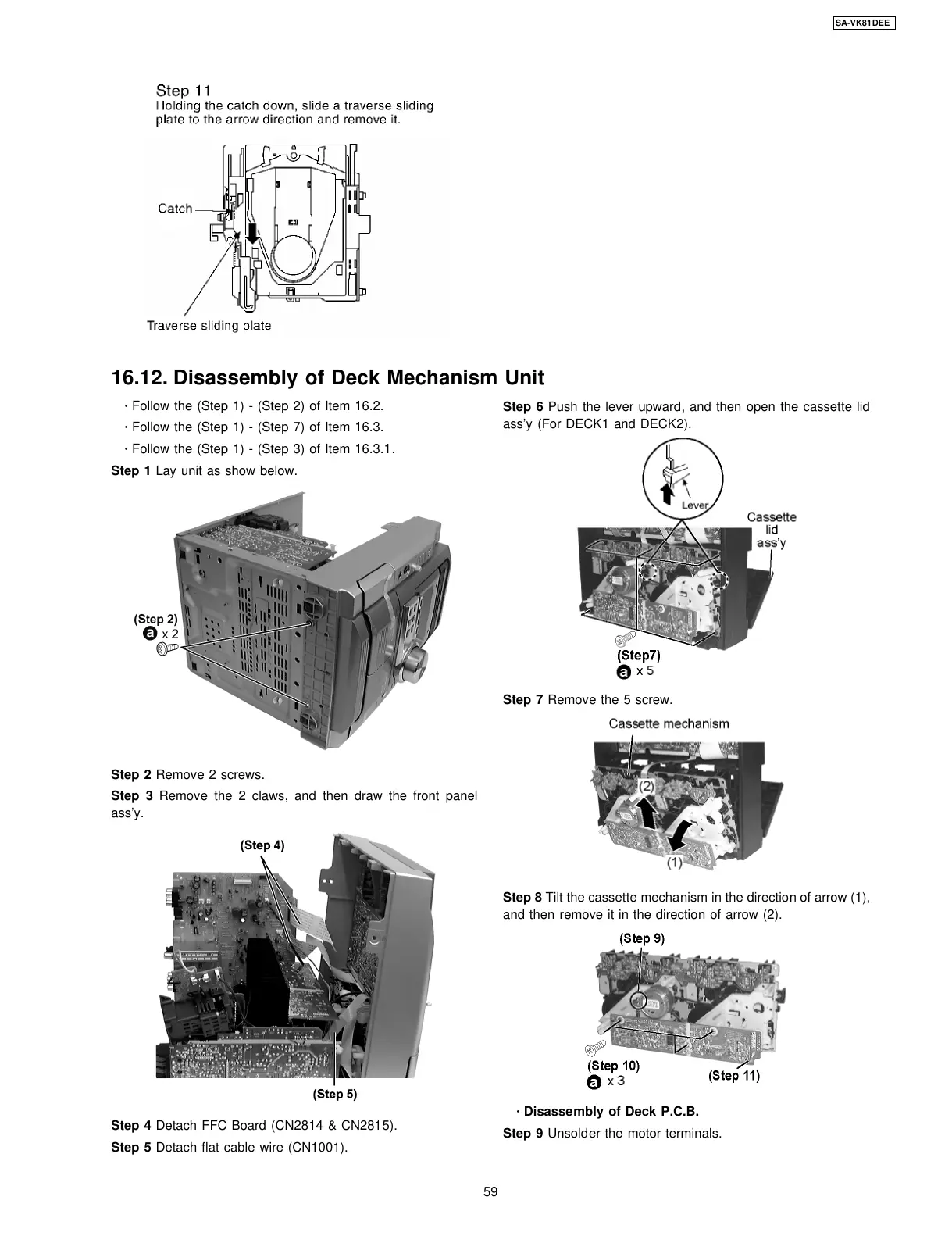

Panasonic SA-VK81DEE - Deck Mechanism Unit Procedures

· Follow the (Step 1) - (Step 2) of Item 16.2.
· Follow the (Step 1) - (Step 7) of Item 16.3.
· Follow the (Step 1) - (Step 3) of Item 16.3.1.
Step 1 Lay unit as show below.
Step 2 Remove 2 screws.
Step 3 Remove the 2 claws, and then draw the front panel
ass’y.
Step 4 Detach FFC Board (CN2814 & CN2815).
Step 5 Detach flat cable wire (CN1001).
Step 6 Push the lever upward, and then open the cassette lid
ass’y (For DECK1 and DECK2).
Step 7 Remove the 5 screw.
Step 8 Tilt the cassette mechanism in the direction of arrow (1),
and then remove it in the direction of arrow (2).
· Disassembly of Deck P.C.B.
Step 9 Unsolder the motor terminals.
16.12. Disassembly of Deck Mechanism Unit
