Panasonic SA-VK81DEE - Service Position; Checking Procedure; Checking the Main P.C.B., Power P.C.B., Power Supply; Inlet

17 Service Position
17.1. Checking Procedure
Note:
For the disassembling procedure, see Section 16.
17.2. Checking the Main P.C.B., Power P.C.B., Power Supply P.C.B., Power
Amp P.C.B., Transformer P.C.B. and AC Inlet P.C.B.

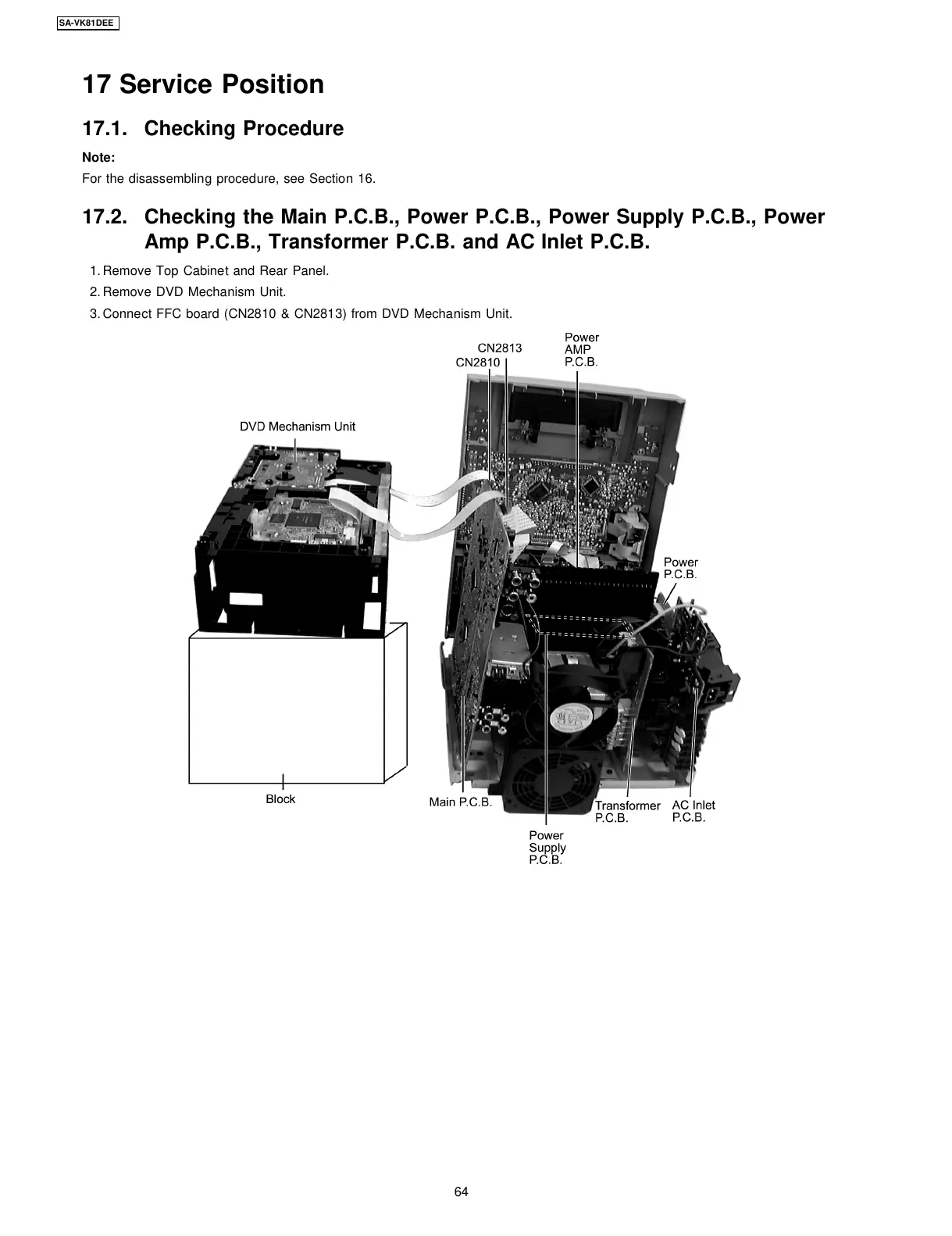

1. Remove Top Cabinet and Rear Panel.
2. Remove DVD Mechanism Unit.
3. Connect FFC board (CN2810 & CN2813) from DVD Mechanism Unit.
