Panasonic SA-VK81DEE - P.C.b; Disassembly of Main P.C.B., Power P.C.B., Power Amp; P.C.B., Power Supply P.C.B., & Transformer

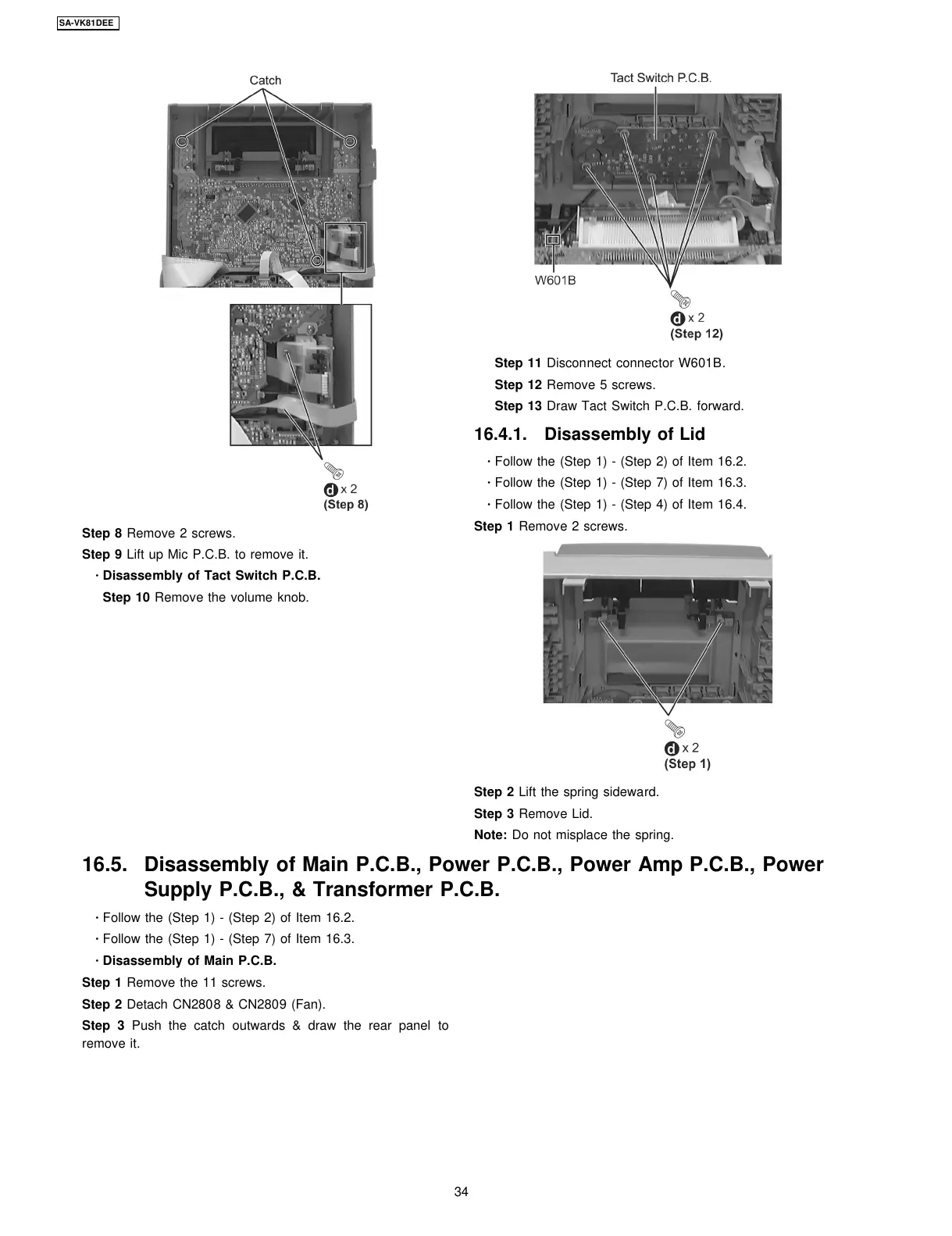

Step 8 Remove 2 screws.
Step 9 Lift up Mic P.C.B. to remove it.
· Disassembly of Tact Switch P.C.B.
Step 10 Remove the volume knob.
· Follow the (Step 1) - (Step 2) of Item 16.2.
· Follow the (Step 1) - (Step 7) of Item 16.3.
· Disassembly of Main P.C.B.
Step 1 Remove the 11 screws.
Step 2 Detach CN2808 & CN2809 (Fan).
Step 3 Push the catch outwards & draw the rear panel to
remove it.
Step 11 Disconnect connector W601B.
Step 12 Remove 5 screws.
Step 13 Draw Tact Switch P.C.B. forward.
16.4.1. Disassembly of Lid
· Follow the (Step 1) - (Step 2) of Item 16.2.
· Follow the (Step 1) - (Step 7) of Item 16.3.
· Follow the (Step 1) - (Step 4) of Item 16.4.
Step 1 Remove 2 screws.
Step 2 Lift the spring sideward.
Step 3 Remove Lid.
Note: Do not misplace the spring.
16.5. Disassembly of Main P.C.B., Power P.C.B., Power Amp P.C.B., Power
Supply P.C.B., & Transformer P.C.B.
34
SA-VK81DEE
