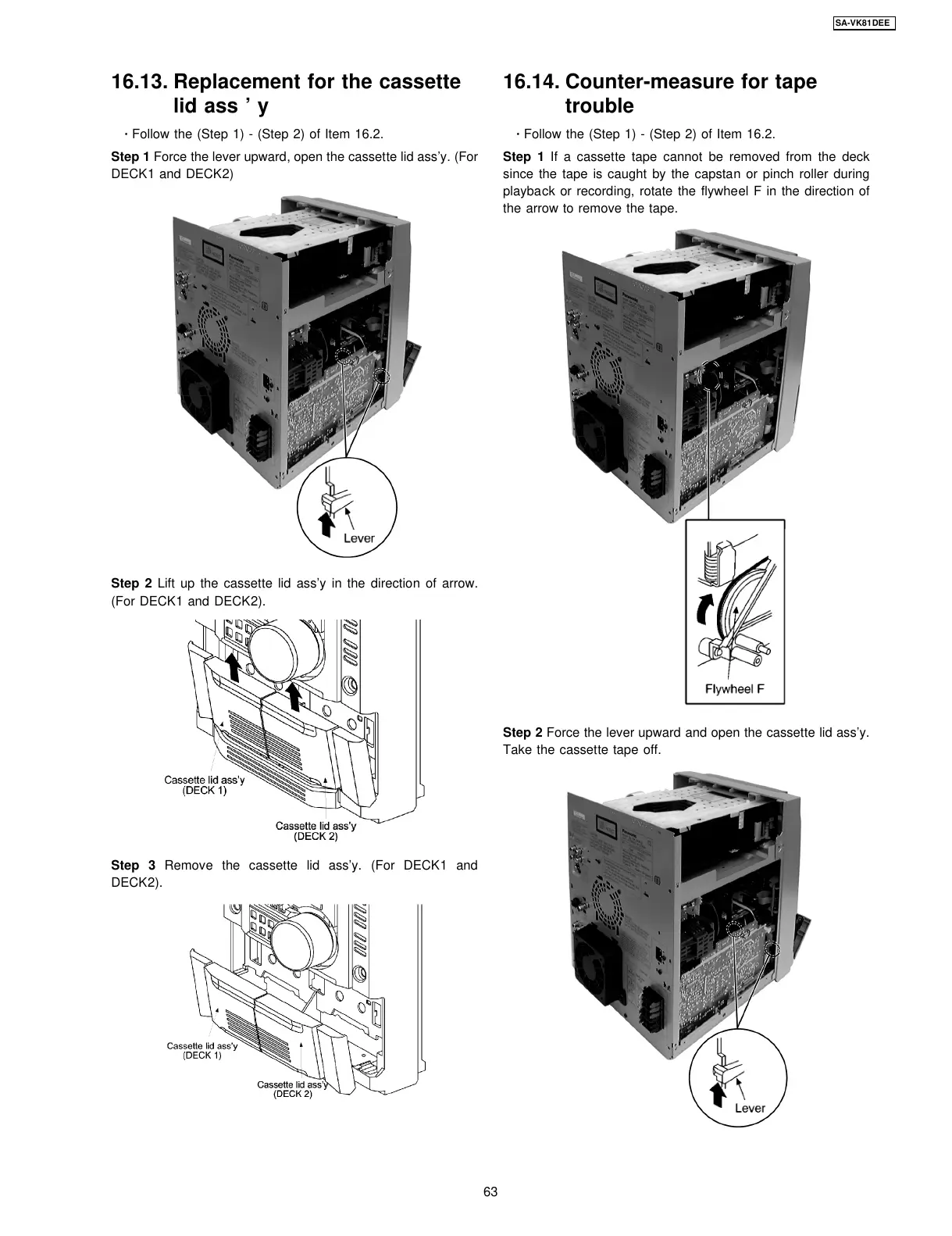

16.13. Replacement for the cassette
lid ass ’ y
· Follow the (Step 1) - (Step 2) of Item 16.2.
Step 1 Force the lever upward, open the cassette lid ass’y. (For
DECK1 and DECK2)
Step 2 Lift up the cassette lid ass’y in the direction of arrow.
(For DECK1 and DECK2).
Step 3 Remove the cassette lid ass’y. (For DECK1 and
DECK2).
16.14. Counter-measure for tape
trouble
· Follow the (Step 1) - (Step 2) of Item 16.2.
Step 1 If a cassette tape cannot be removed from the deck
since the tape is caught by the capstan or pinch roller during
playback or recording, rotate the flywheel F in the direction of
the arrow to remove the tape.
Step 2 Force the lever upward and open the cassette lid ass’y.
Take the cassette tape off.
63
SA-VK81DEE
