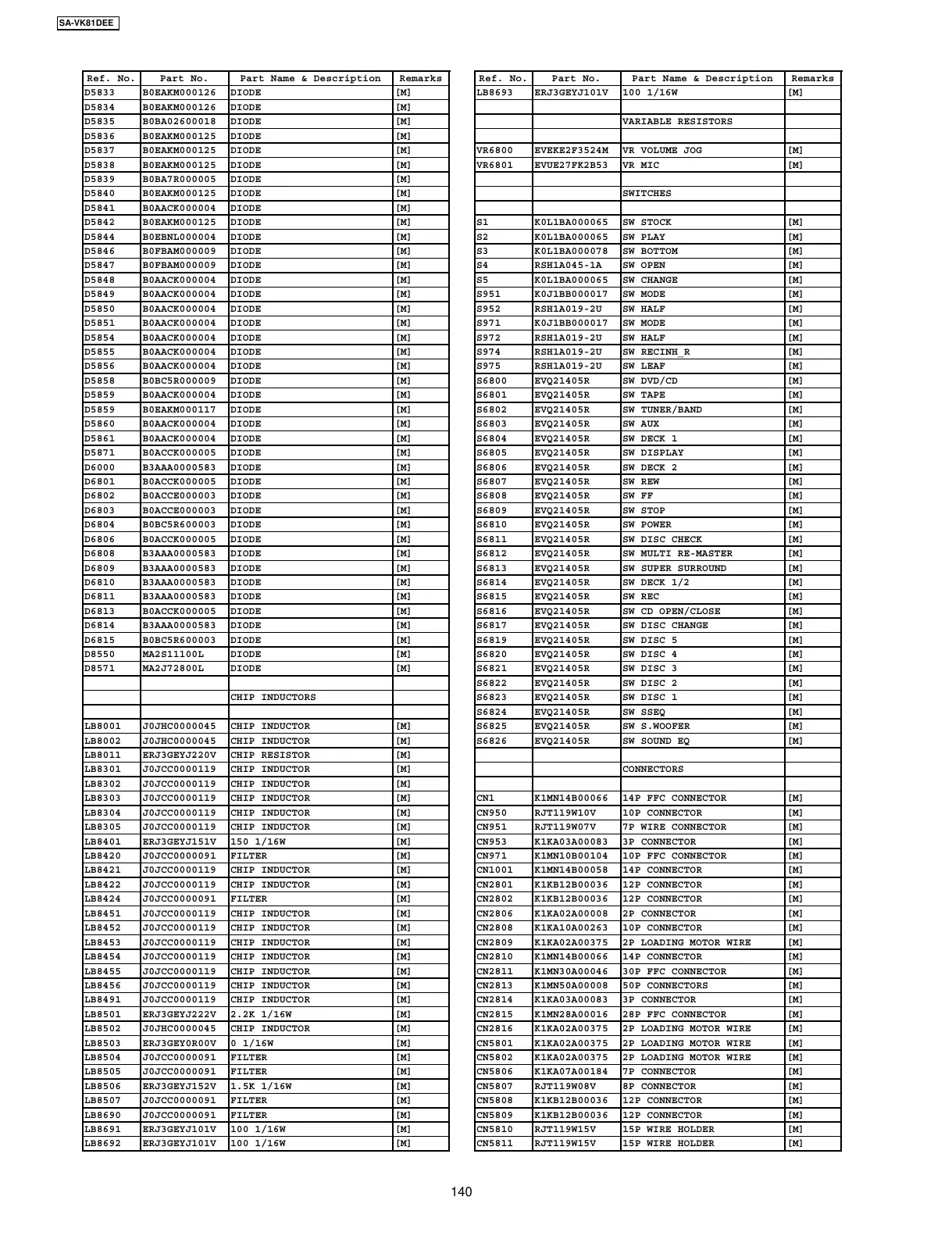

Panasonic SA-VK81DEE - Page 140

Ref. No. Part No. Part Name & Description Remarks
D5833 B0EAKM000126 DIODE [M]
D5834 B0EAKM000126 DIODE [M]
D5835 B0BA02600018 DIODE [M]
D5836 B0EAKM000125 DIODE [M]
D5837 B0EAKM000125 DIODE [M]
D5838 B0EAKM000125 DIODE [M]
D5839 B0BA7R000005 DIODE [M]
D5840 B0EAKM000125 DIODE [M]
D5841 B0AACK000004 DIODE [M]
D5842 B0EAKM000125 DIODE [M]
D5844 B0EBNL000004 DIODE [M]
D5846 B0FBAM000009 DIODE [M]
D5847 B0FBAM000009 DIODE [M]
D5848 B0AACK000004 DIODE [M]
D5849 B0AACK000004 DIODE [M]
D5850 B0AACK000004 DIODE [M]
D5851 B0AACK000004 DIODE [M]
D5854 B0AACK000004 DIODE [M]
D5855 B0AACK000004 DIODE [M]
D5856 B0AACK000004 DIODE [M]
D5858 B0BC5R000009 DIODE [M]
D5859 B0AACK000004 DIODE [M]
D5859 B0EAKM000117 DIODE [M]
D5860 B0AACK000004 DIODE [M]
D5861 B0AACK000004 DIODE [M]
D5871 B0ACCK000005 DIODE [M]
D6000 B3AAA0000583 DIODE [M]
D6801 B0ACCK000005 DIODE [M]
D6802 B0ACCE000003 DIODE [M]
D6803 B0ACCE000003 DIODE [M]
D6804 B0BC5R600003 DIODE [M]
D6806 B0ACCK000005 DIODE [M]
D6808 B3AAA0000583 DIODE [M]
D6809 B3AAA0000583 DIODE [M]
D6810 B3AAA0000583 DIODE [M]
D6811 B3AAA0000583 DIODE [M]
D6813 B0ACCK000005 DIODE [M]
D6814 B3AAA0000583 DIODE [M]
D6815 B0BC5R600003 DIODE [M]
D8550 MA2S11100L DIODE [M]
D8571 MA2J72800L DIODE [M]
CHIP INDUCTORS
LB8001 J0JHC0000045 CHIP INDUCTOR [M]
LB8002 J0JHC0000045 CHIP INDUCTOR [M]
LB8011 ERJ3GEYJ220V CHIP RESISTOR [M]
LB8301 J0JCC0000119 CHIP INDUCTOR [M]
LB8302 J0JCC0000119 CHIP INDUCTOR [M]
LB8303 J0JCC0000119 CHIP INDUCTOR [M]
LB8304 J0JCC0000119 CHIP INDUCTOR [M]
LB8305 J0JCC0000119 CHIP INDUCTOR [M]
LB8401 ERJ3GEYJ151V 150 1/16W [M]
LB8420 J0JCC0000091 FILTER [M]
LB8421 J0JCC0000119 CHIP INDUCTOR [M]
LB8422 J0JCC0000119 CHIP INDUCTOR [M]
LB8424 J0JCC0000091 FILTER [M]
LB8451 J0JCC0000119 CHIP INDUCTOR [M]
LB8452 J0JCC0000119 CHIP INDUCTOR [M]
LB8453 J0JCC0000119 CHIP INDUCTOR [M]
LB8454 J0JCC0000119 CHIP INDUCTOR [M]
LB8455 J0JCC0000119 CHIP INDUCTOR [M]
LB8456 J0JCC0000119 CHIP INDUCTOR [M]
LB8491 J0JCC0000119 CHIP INDUCTOR [M]
LB8501 ERJ3GEYJ222V 2.2K 1/16W [M]
LB8502 J0JHC0000045 CHIP INDUCTOR [M]
LB8503 ERJ3GEY0R00V 0 1/16W [M]
LB8504 J0JCC0000091 FILTER [M]
LB8505 J0JCC0000091 FILTER [M]
LB8506 ERJ3GEYJ152V 1.5K 1/16W [M]
LB8507 J0JCC0000091 FILTER [M]
LB8690 J0JCC0000091 FILTER [M]
LB8691 ERJ3GEYJ101V 100 1/16W [M]
LB8692 ERJ3GEYJ101V 100 1/16W [M]
Ref. No. Part No. Part Name & Description Remarks
LB8693 ERJ3GEYJ101V 100 1/16W [M]
VARIABLE RESISTORS
VR6800 EVEKE2F3524M VR VOLUME JOG [M]
VR6801 EVUE27FK2B53 VR MIC [M]
SWITCHES
S1 K0L1BA000065 SW STOCK [M]
S2 K0L1BA000065 SW PLAY [M]
S3 K0L1BA000078 SW BOTTOM [M]
S4 RSH1A045-1A SW OPEN [M]
S5 K0L1BA000065 SW CHANGE [M]
S951 K0J1BB000017 SW MODE [M]
S952 RSH1A019-2U SW HALF [M]
S971 K0J1BB000017 SW MODE [M]
S972 RSH1A019-2U SW HALF [M]
S974 RSH1A019-2U SW RECINH_R [M]
S975 RSH1A019-2U SW LEAF [M]
S6800 EVQ21405R SW DVD/CD [M]
S6801 EVQ21405R SW TAPE [M]
S6802 EVQ21405R SW TUNER/BAND [M]
S6803 EVQ21405R SW AUX [M]
S6804 EVQ21405R SW DECK 1 [M]
S6805 EVQ21405R SW DISPLAY [M]
S6806 EVQ21405R SW DECK 2 [M]
S6807 EVQ21405R SW REW [M]
S6808 EVQ21405R SW FF [M]
S6809 EVQ21405R SW STOP [M]
S6810 EVQ21405R SW POWER [M]
S6811 EVQ21405R SW DISC CHECK [M]
S6812 EVQ21405R SW MULTI RE-MASTER [M]
S6813 EVQ21405R SW SUPER SURROUND [M]
S6814 EVQ21405R SW DECK 1/2 [M]
S6815 EVQ21405R SW REC [M]
S6816 EVQ21405R SW CD OPEN/CLOSE [M]
S6817 EVQ21405R SW DISC CHANGE [M]
S6819 EVQ21405R SW DISC 5 [M]
S6820 EVQ21405R SW DISC 4 [M]
S6821 EVQ21405R SW DISC 3 [M]
S6822 EVQ21405R SW DISC 2 [M]
S6823 EVQ21405R SW DISC 1 [M]
S6824 EVQ21405R SW SSEQ [M]
S6825 EVQ21405R SW S.WOOFER [M]
S6826 EVQ21405R SW SOUND EQ [M]
CONNECTORS
CN1 K1MN14B00066 14P FFC CONNECTOR [M]
CN950 RJT119W10V 10P CONNECTOR [M]
CN951 RJT119W07V 7P WIRE CONNECTOR [M]
CN953 K1KA03A00083 3P CONNECTOR [M]
CN971 K1MN10B00104 10P FFC CONNECTOR [M]
CN1001 K1MN14B00058 14P CONNECTOR [M]
CN2801 K1KB12B00036 12P CONNECTOR [M]
CN2802 K1KB12B00036 12P CONNECTOR [M]
CN2806 K1KA02A00008 2P CONNECTOR [M]
CN2808 K1KA10A00263 10P CONNECTOR [M]
CN2809 K1KA02A00375 2P LOADING MOTOR WIRE [M]
CN2810 K1MN14B00066 14P CONNECTOR [M]
CN2811 K1MN30A00046 30P FFC CONNECTOR [M]
CN2813 K1MN50A00008 50P CONNECTORS [M]
CN2814 K1KA03A00083 3P CONNECTOR [M]
CN2815 K1MN28A00016 28P FFC CONNECTOR [M]
CN2816 K1KA02A00375 2P LOADING MOTOR WIRE [M]
CN5801 K1KA02A00375 2P LOADING MOTOR WIRE [M]
CN5802 K1KA02A00375 2P LOADING MOTOR WIRE [M]
CN5806 K1KA07A00184 7P CONNECTOR [M]
CN5807 RJT119W08V 8P CONNECTOR [M]
CN5808 K1KB12B00036 12P CONNECTOR [M]
CN5809 K1KB12B00036 12P CONNECTOR [M]
CN5810 RJT119W15V 15P WIRE HOLDER [M]
CN5811 RJT119W15V 15P WIRE HOLDER [M]
140
SA-VK81DEE
