Panasonic SA-VKX95EE - Page 33

33
Main PCB
Main PCB

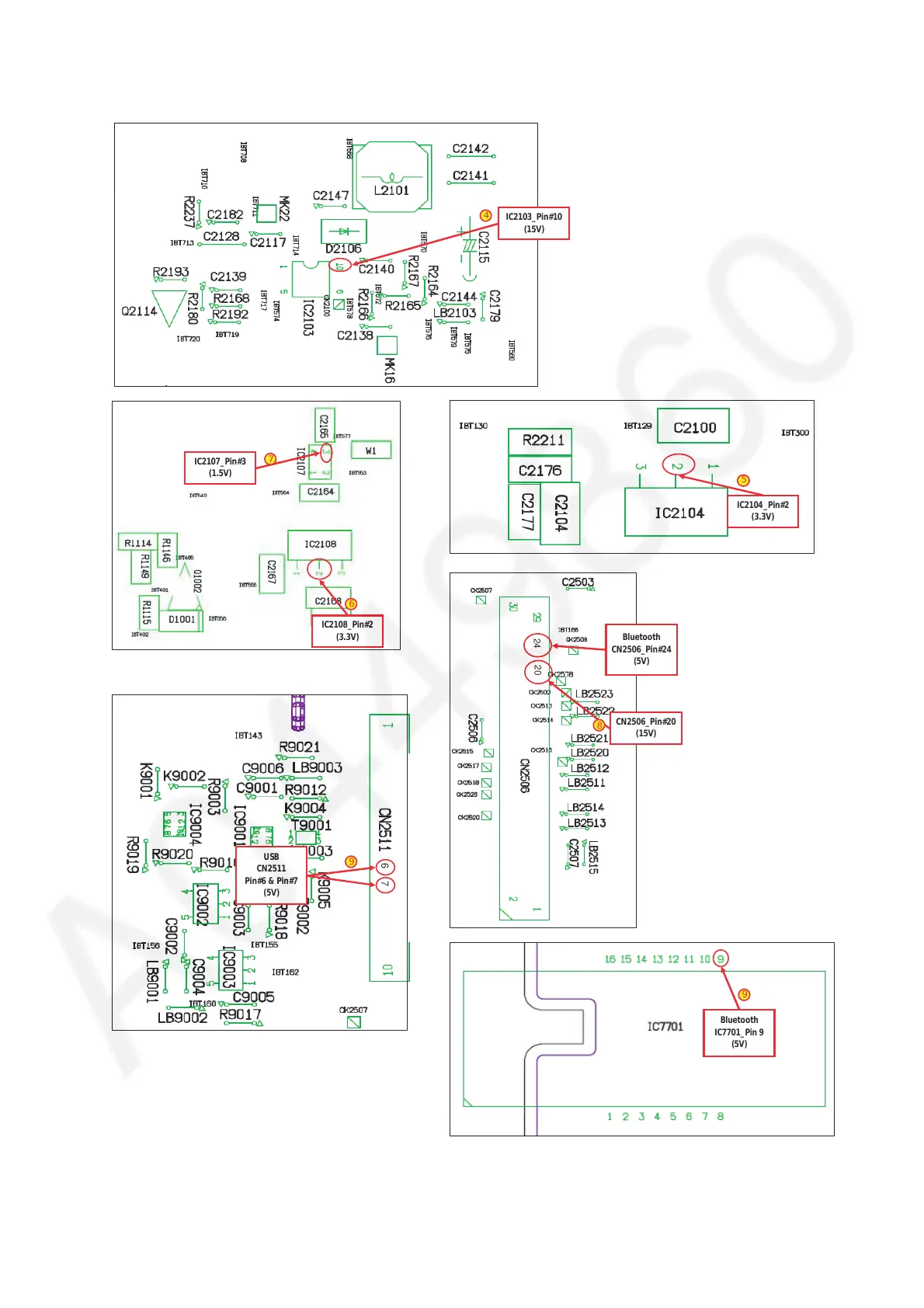

7.3 BACK-END PCB
7.3 BACK-END PCB
4
IC2103_Pin#10
(15V)
IC2104_Pin#2
(3.3V)
5
IC2108_Pin#2
(3.3V)
6
IC2107_Pin#3
(1.5V)
7
20
CN2506_Pin#20
(15V)
8
6
USB
CN2511
Pin#6 & Pin#7
(5V)
9
Bluetooth
IC7701_Pin 9
(5V)
7
24
Bluetooth
CN2506_Pin#24
(5V)
9
