Step 8 Release tabs at bottom of unit.
Step 9 Detach to remove Front Panel Unit

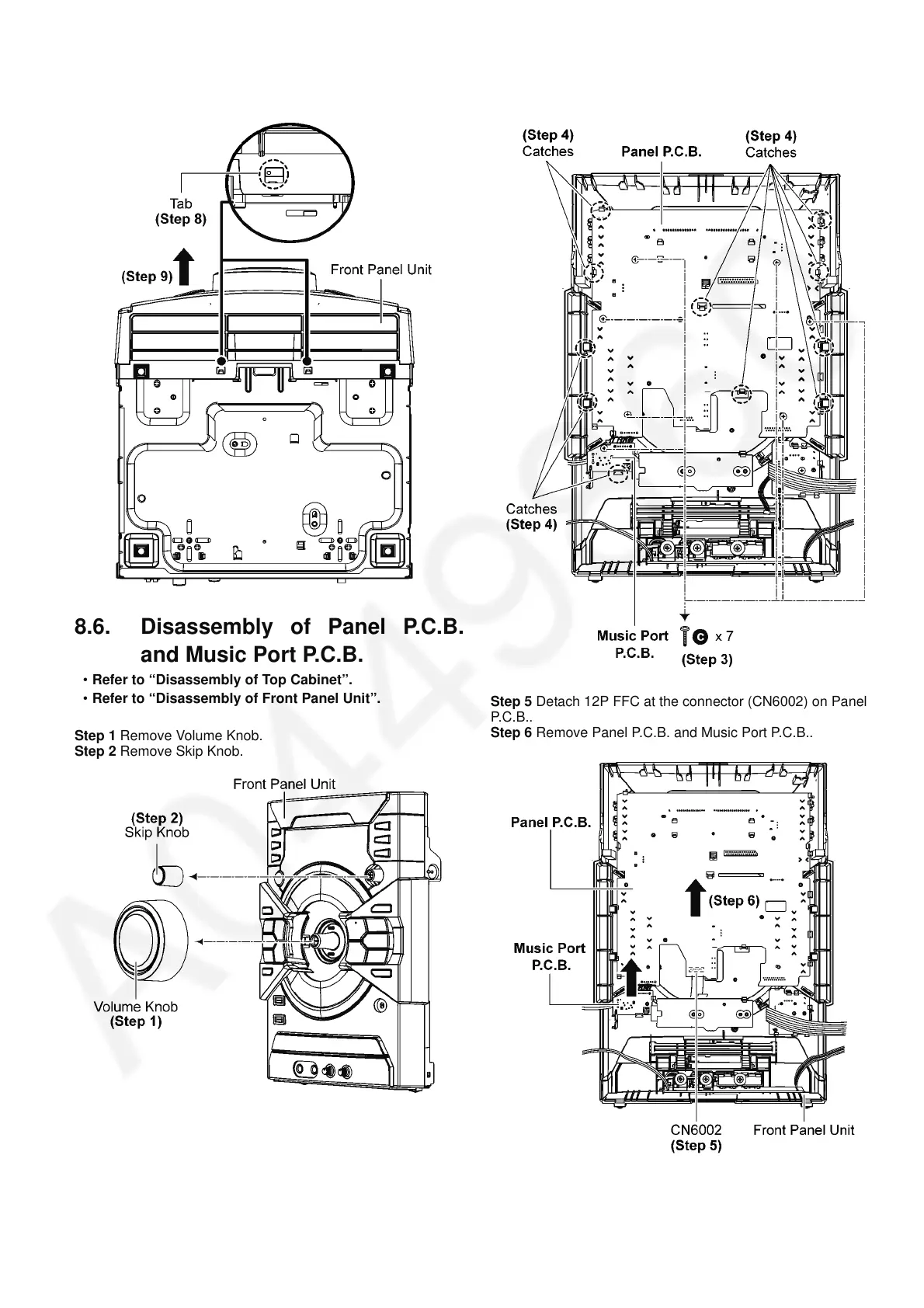

8.6. Disassembly of Panel P.C.B.
and Music Port P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove Volume Knob.
Step 2 Remove Skip Knob.
Step 3 Remove 7 screws.
Step 4 Release catches.
Step 5 Detach 12P FFC at the connector (CN6002) on Panel
P. C .B ..
Step 6 Remove Panel P.C.B. and Music Port P.C.B..
To Next Page
