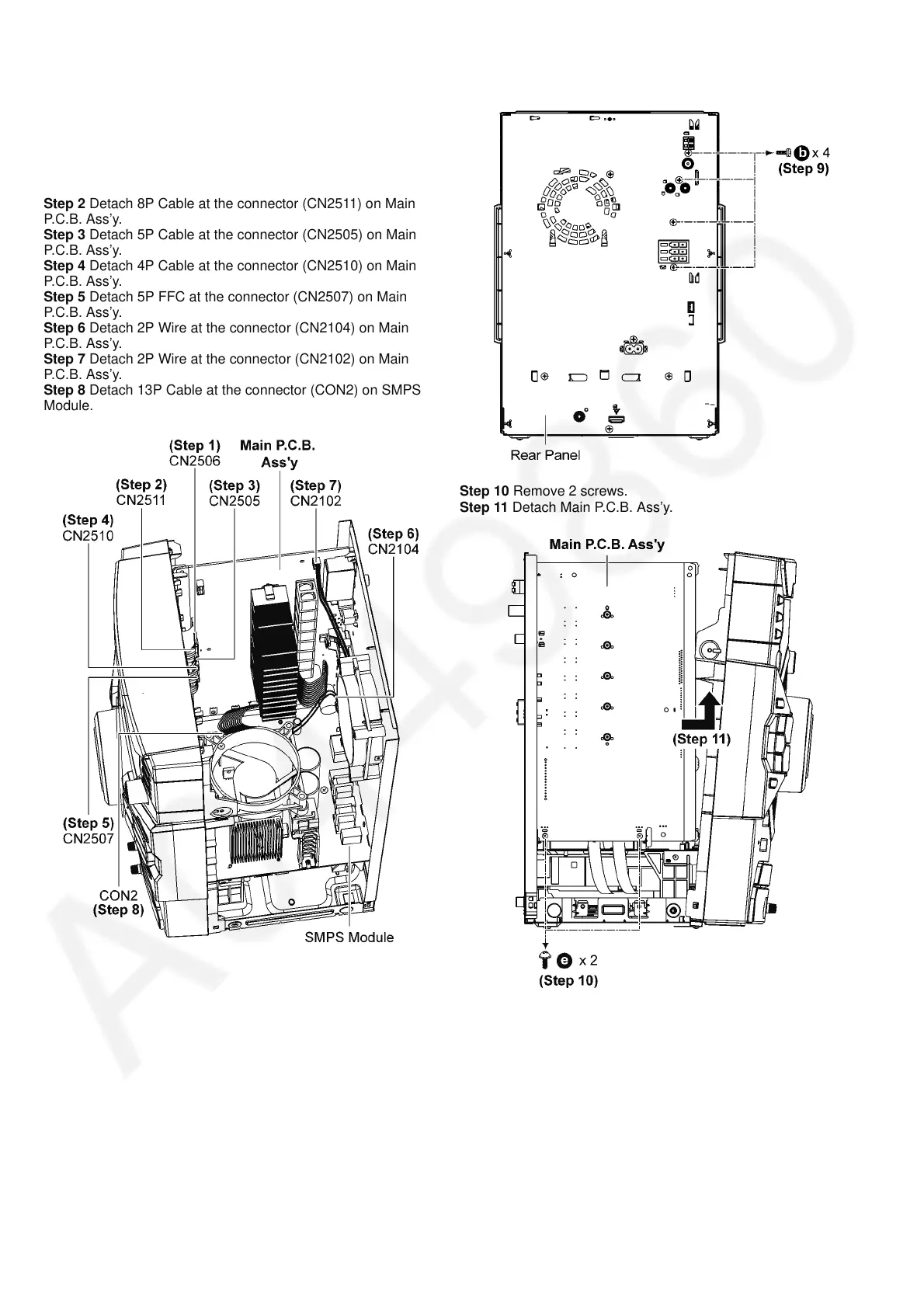

8.11. Disassembly of Main P.C.B.
Ass’y
• Refer to “Disassembly of Top Cabinet”.
Step 1 Detach 30P FFC at the connector (CN2506) on Main
P.C.B. Ass’y.
Step 2 Detach 8P Cable at the connector (CN2511) on Main
P.C.B. Ass’y.
Step 3 Detach 5P Cable at the connector (CN2505) on Main
P.C.B. Ass’y.
Step 4 Detach 4P Cable at the connector (CN2510) on Main
P.C.B. Ass’y.
Step 5 Detach 5P FFC at the connector (CN2507) on Main
P.C.B. Ass’y.
Step 6 Detach 2P Wire at the connector (CN2104) on Main
P.C.B. Ass’y.
Step 7 Detach 2P Wire at the connector (CN2102) on Main
P.C.B. Ass’y.
Step 8 Detach 13P Cable at the connector (CON2) on SMPS
Module.
Step 9 Remove 4 screws.
Step 10 Remove 2 screws.
Step 11 Detach Main P.C.B. Ass’y.
