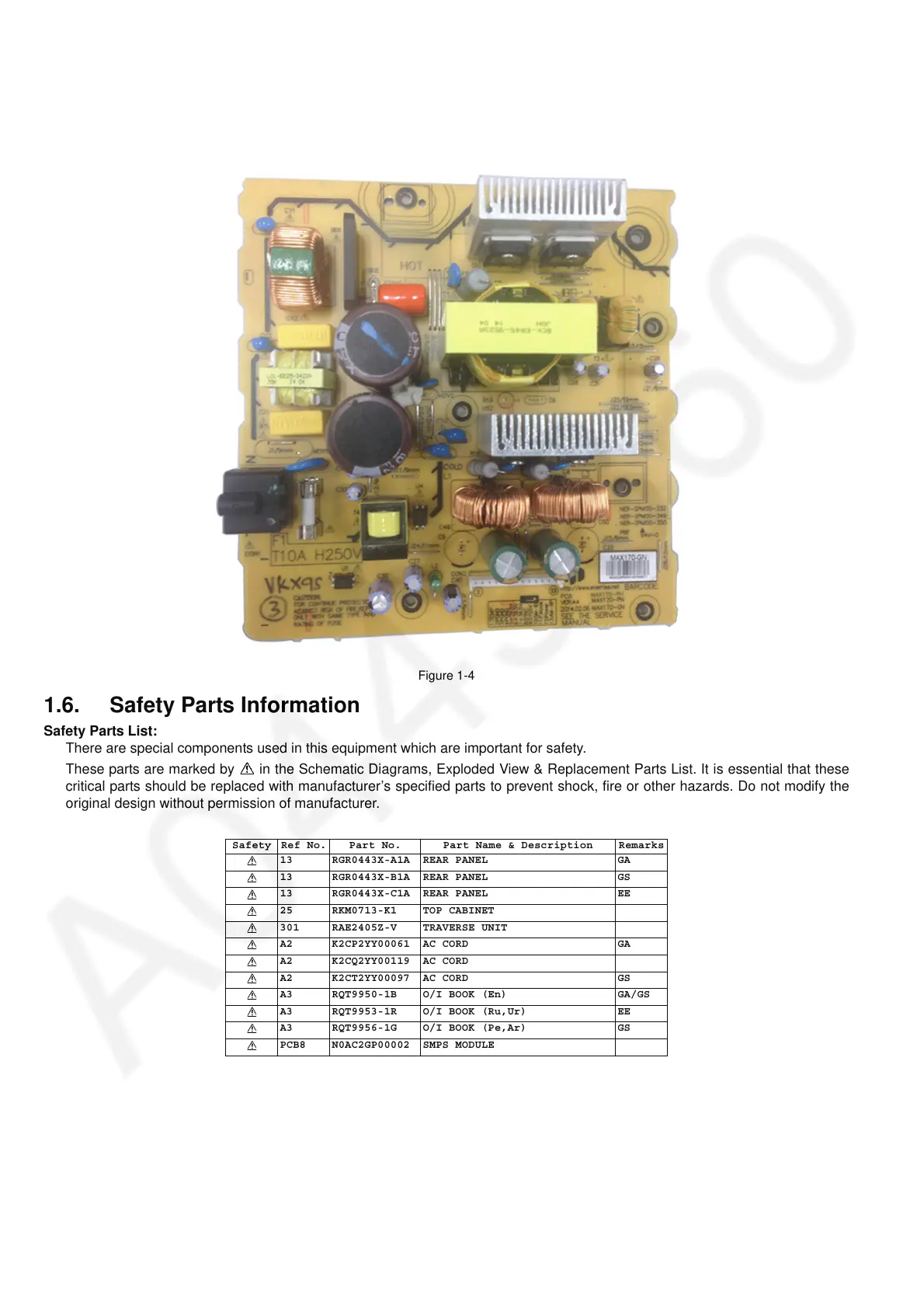

1.5. Power Supply using SMPS
This model uses Switching Mode Power Supply (SMPS) to provide the power supply to the unit. Here is the supplied part no. for the
SMPS Module
1) N0AC2GP00002
Figure 1-4
1.6. Safety Parts Information
Safety Parts List:
There are special components used in this equipment which are important for safety.
These parts are marked by in the Schematic Diagrams, Exploded View & Replacement Parts List. It is essential that these
critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the
original design without permission of manufacturer.
Safety Ref No. Part No. Part Name & Description Remarks
13 RGR0443X-A1A REAR PANEL GA
13 RGR0443X-B1A REAR PANEL GS
13 RGR0443X-C1A REAR PANEL EE
25 RKM0713-K1 TOP CABINET
301 RAE2405Z-V TRAVERSE UNIT
A2 K2CP2YY00061 AC CORD GA
A2 K2CQ2YY00119 AC CORD
A2 K2CT2YY00097 AC CORD GS
A3 RQT9950-1B O/I BOOK (En) GA/GS
A3 RQT9953-1R O/I BOOK (Ru,Ur) EE
A3 RQT9956-1G O/I BOOK (Pe,Ar) GS
PCB8 N0AC2GP00002 SMPS MODULE
