50

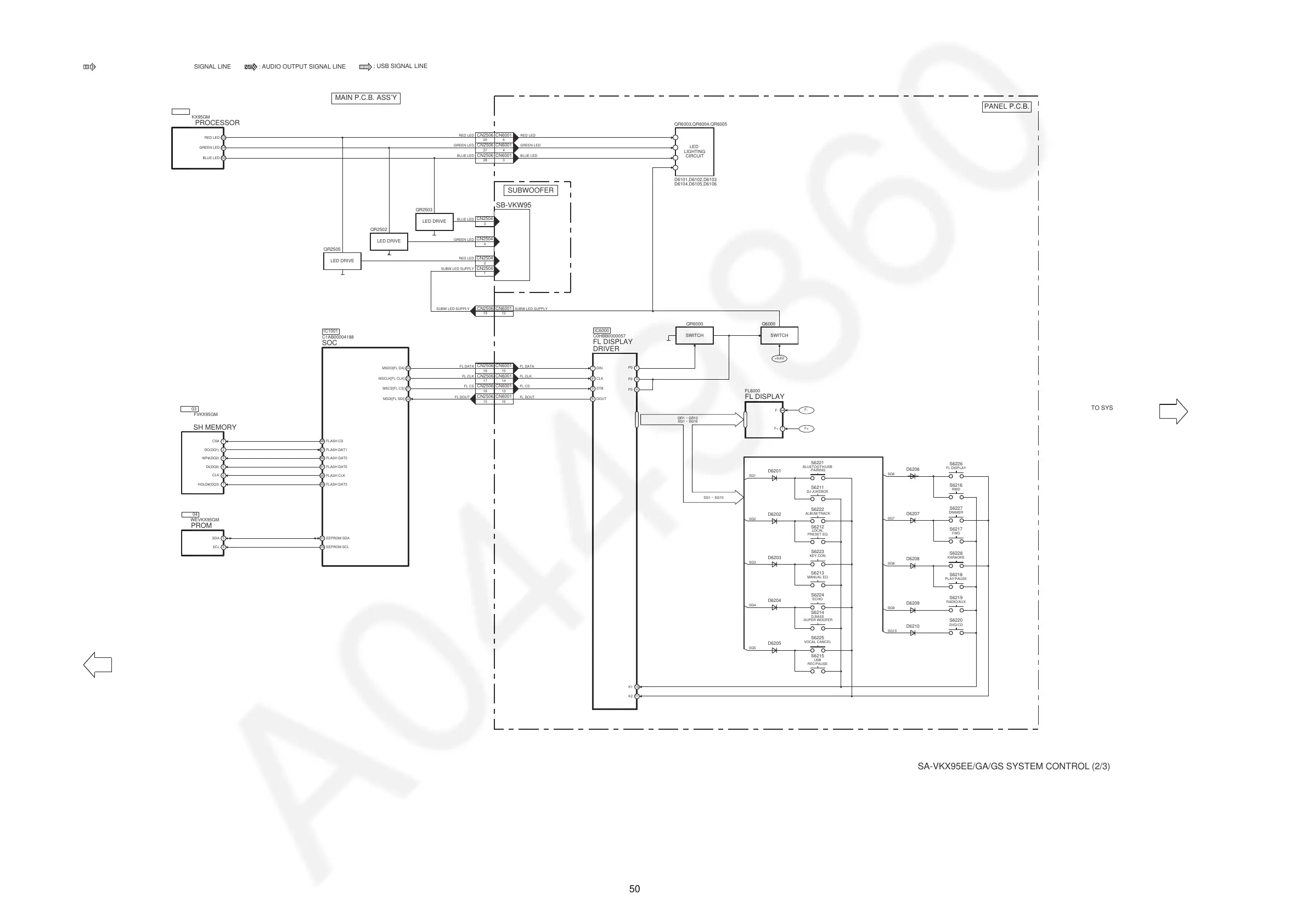

SA-VKX95EE/GA/GS SYSTEM CONTROL (2/3) BLOCK DIAGRAM
TO SYSTEM CONTROL
BLOCK (1/3)
TO SYSTEM CONTROL
BLOCK (3/3)
: USB SIGNAL LINE
: AUX/MUSIC PORT AUDIO INPUT SIGNAL LINE
: AUDIO OUTPUT SIGNAL LINE
MAIN P.C.B. ASS’Y
SOC
C1AB00004188
IC1001
MICROPROCESSOR
RFKWMVKX95GM
QR6003,QR6004,QR6005
BLUE LED 55
RED LED 53
GREEN LED 54
SUBW LED SUPPLY
1219
CN6001CN2506
SUBW LED SUPPLY
D6101,D6102,D6103
D6104,D6105,D6106
SB-VKW95
625
CN6001CN2506
427
CN6001CN2506
RED LED
GREEN LED
RED LED
GREEN LED
328
CN6001CN2506
BLUE LEDBLUE LED
1
CN2504
SUBW LED SUPPLY
3
CN2504
BLUE LED
4
CN2504
GREEN LED
2
CN2504
RED LED
+5.6V
LED
LIGHTING
CIRCUIT
Q6000
SWITCH
QR6000
SWITCH
QR2505
LED DRIVE
QR2502
LED DRIVE
QR2503
LED DRIVE
P2 3
P0 1
P3 4
PANEL P.C.B.
SUBWOOFER
D6201
15
CN2506
MSDO[FL DA] 24
17
CN2506
MSCLK[FL CLK] 23
18
CN2506
MSCS[FL CS] 21
FL DOUT
FL CLK
FL CS
FL DOUT
FL CLK
FL CS
16
CN2506
16
CN6001
14
CN6001
13
CN6001
15
CN6001
MSDI[FL SDI] 22
FL DATA FL DATA
FL DISPLAY
DRIVER
C0HBB0000057
IC6000
IC2300
7
DIN
8
CLK
9
STB
6
DOUT
10
K1
11
K2
GR1 ~ GR12
SG1 ~ SG16
SG1 ~ SG10
FL6000
FL DISPLAY
F-
F+
F-
F+
SG1
44
1
BLUETOOTH/USB
-PAIRING
S6221
DJ JUKEBOX
S6211
D6202
SG2
ALBUM/TRACK
S6222
LOCAL
PRESET EQ
S6212
D6203
SG3
KEY-CON
S6223
MANUAL EQ
S6213
D6204
SG4
ECHO
S6224
D.BASS
-SUPER WOOFER
S6214
D6205
SG5
VOCAL CANCEL
S6225
USB
REC/PAUSE
S6215
D6206
SG6
FL DISPLAY
S6226
RWD
S6216
D6207
SG7
DIMMER
S6227
FWD
S6217
D6208
SG8
KARAOKE
S6228
PLAY/PAUSE
S6218
D6209
SG9
RADIO/AUX
S6219
D6210
SG10
DVD/CD
S6220
5SDA
6SCL
EEPROM
RFKWEVKX95GM
IC1004
EEPROM SDA31
EEPROM SCL29
16M
FLASH MEMORY
RFKWFVKX95GM
IC1003
FLASH CS
FLASH DAT1
1CS#
2DO(DQ1)
WP#(DQ2)
DI(DQ0)
CLK
HOLD#(DQ3)
88
FLASH DAT2386
FLASH DAT0591
FLASH CLK690
FLASH DAT3789
87
