28
Black Screw (D)

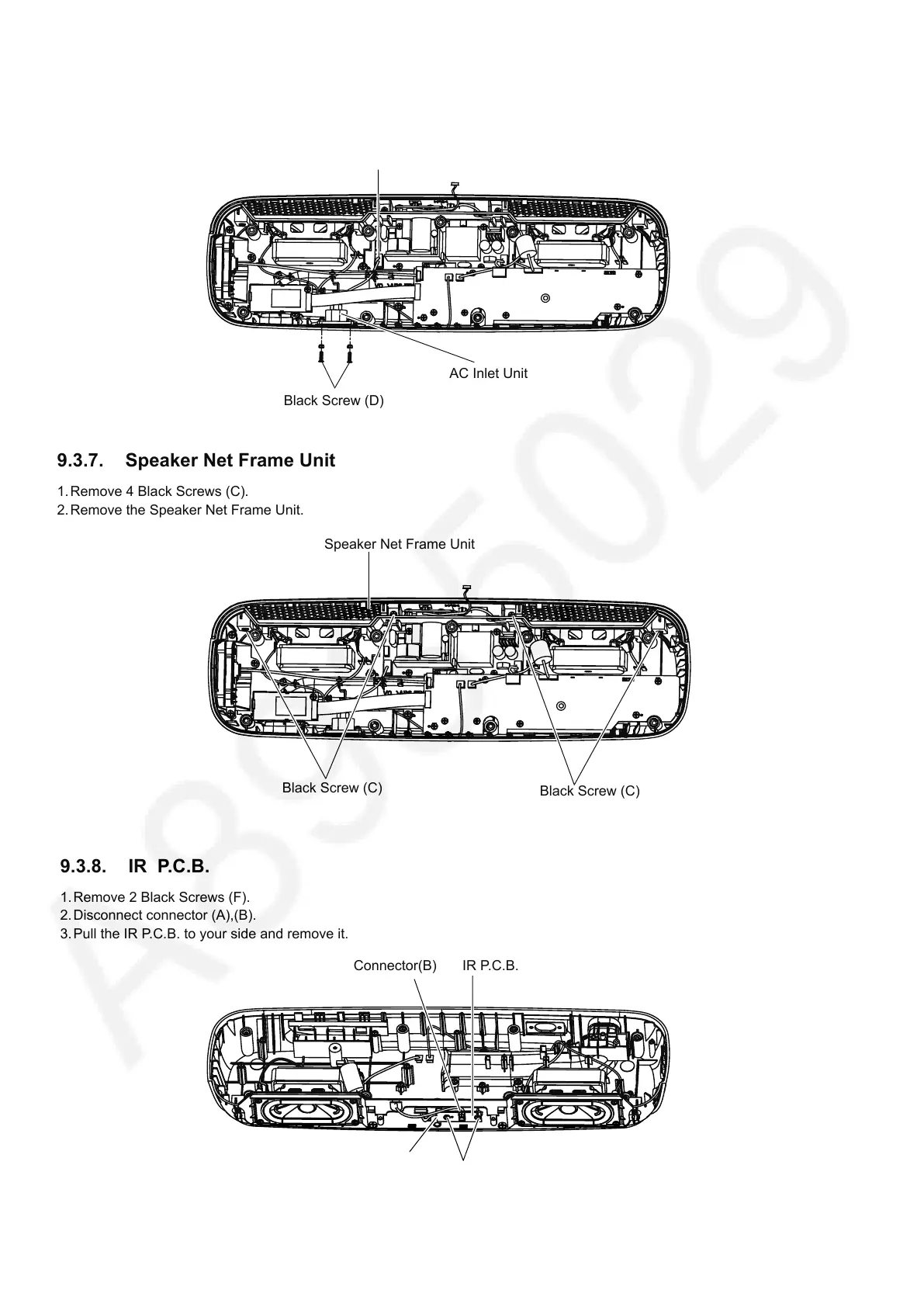

9.3.6. AC Inlet Unit
1. Remove 2 Black Screws (D).
2. Disconnect connector (A).
3. Remove the AC Inlet Unit.
Connector(A)
9.3.7. Speaker Net Frame Unit
1. Remove 4 Black Screws (C).
2. Remove the Speaker Net Frame Unit.
Black Screw (C)
Black Screw (C)
Speaker Net Frame Unit
9.3.8. IR P.C.B.
1. Remove 2 Black Screws (F).
2. Disconnect connector (A),(B).
3. Pull the IR P.C.B. to your side and remove it.
Black Screw (F)
Connector(A)
Connector(B)
IR P.C.B.
AC Inlet Unit
