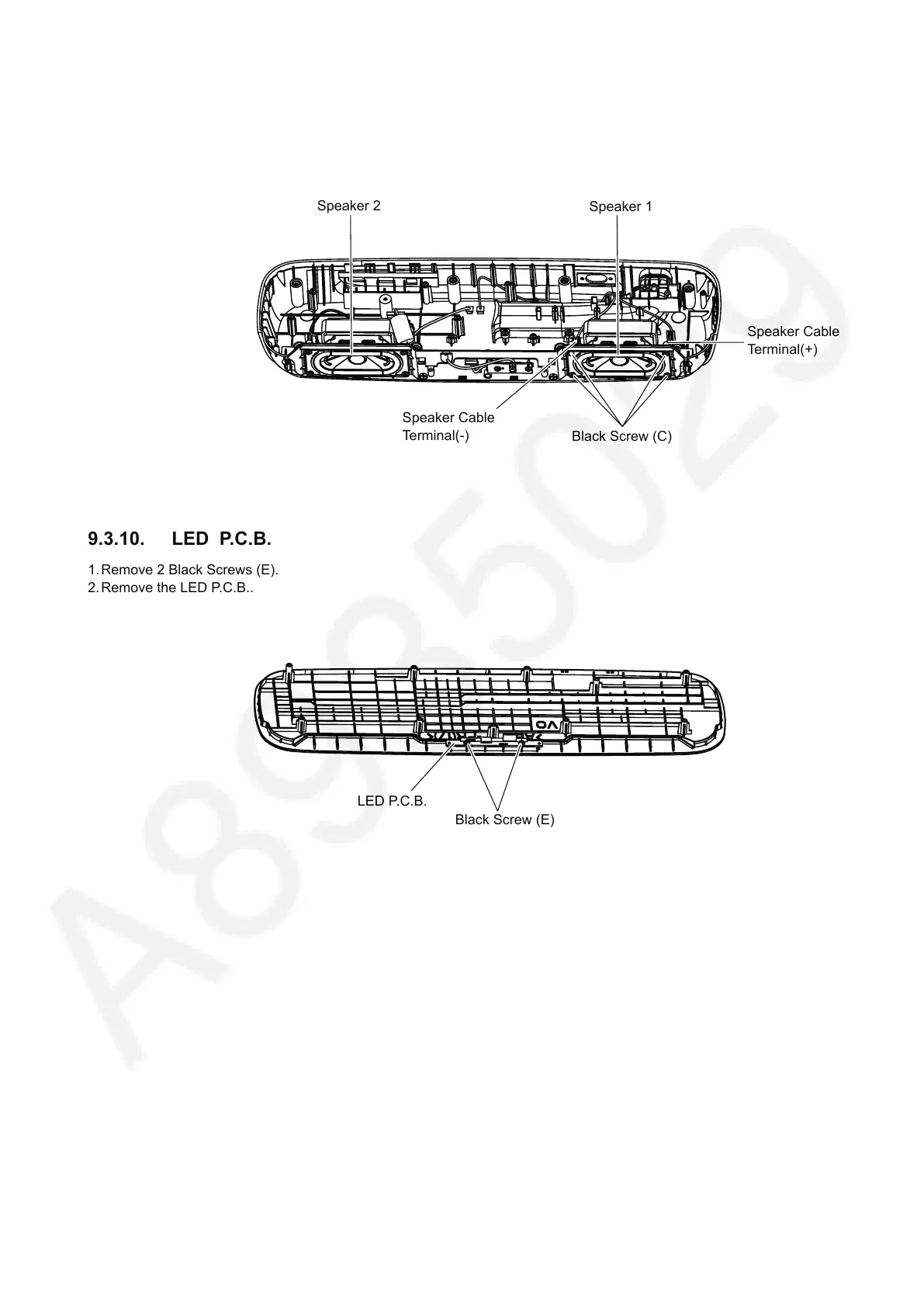

9.3.9. Speaker
1. Disconnect 2 Speaker Cable Terminals.
2. Remove 4 Black Screws (C).
3. Remove Speaker 1.
4. Remove Speaker 2 in the same way.
Speaker Cable
Terminal(-)
Speaker 2
Speaker 1
Speaker Cable
Terminal(+)
Black Screw (C)
9.3.10. LED P.C.B.
1. Remove 2 Black Screws (E).
2. Remove the LED P.C.B..
Black Screw (E)
LED P.C.B.
