Panasonic SC-HTB550 User Manual

Getting started
RQT9666
15
≥For a safety measure to prevent the speakers from falling, refer to page 17.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

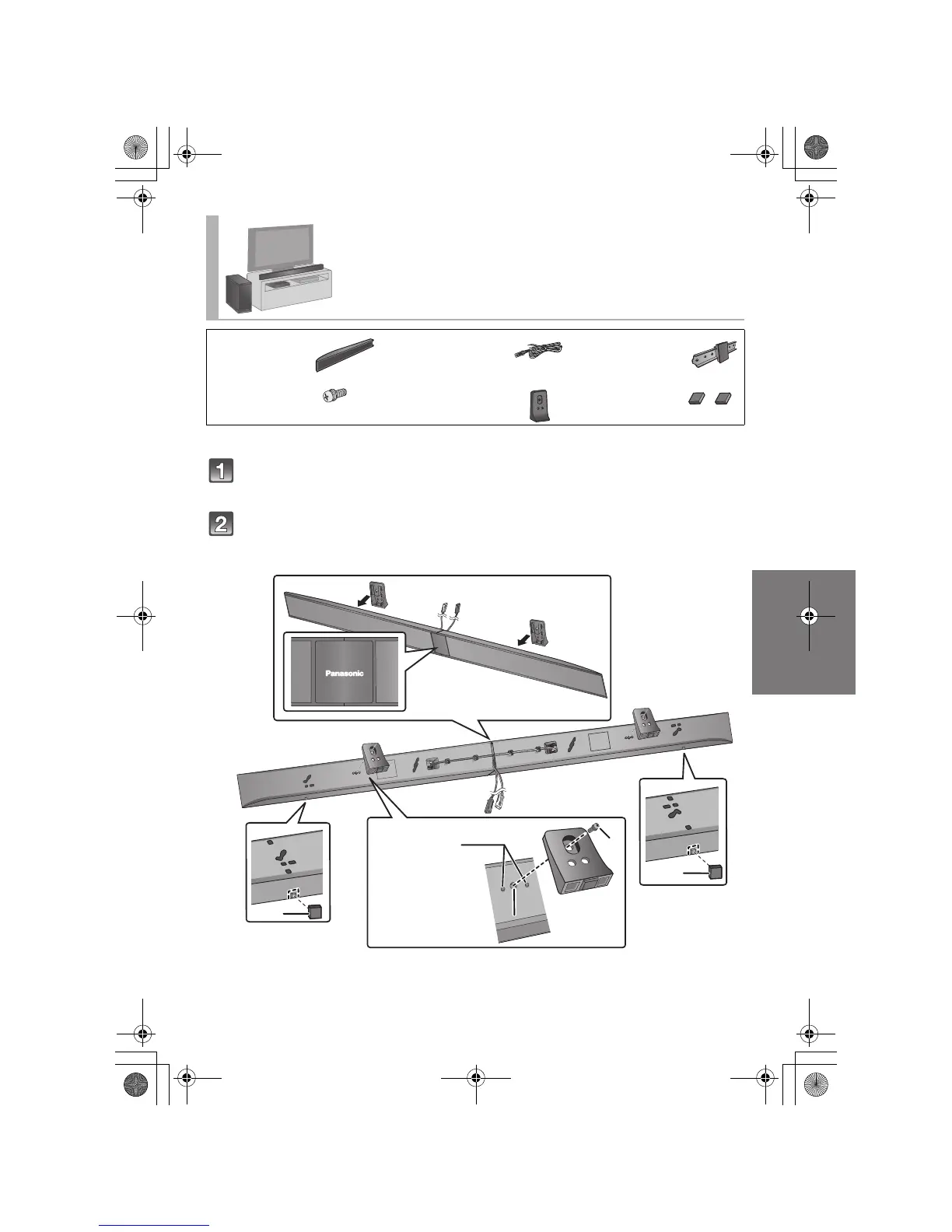

Assemble the speakers following steps 1 and 2 of “Place the speakers
horizontally” (> 10).
Attach the support legs and speaker feet.
≥ Use the “Panasonic” logo to identify the top and bottom of the speaker.
≥ Keep the screws and the speaker feet out of reach of children to prevent swallowing.
Place the speakers using the support legs and
speaker feet
∏ 2 Speakers ∏ 2 Speaker cables
(L): WHITE
(R): RED
∏ 1 Speaker joint
∏ 6 Screws ∏ 2 Support legs ∏ 2 Speaker feet
A Screw (supplied)
B Screw hole
C Speaker foot (supplied)
≥ Attach the speaker foot directly below the wall mounting hole (as illustrated).






Align the
projecting parts
on the speaker
with support leg.
SC-HTB550_RQT9660_mst.book Page 15 Monday, January 30, 2012 4:53 PM

Panasonic SC-HTB550 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS
RMS rated power	240 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	65 mm
Tweeter diameter	25 mm
Soundbar speaker RMS power	120 W
Total Harmonic Distortion (THD)	10 %
Subwoofer connectivity	Wireless
FM radio	No
Product color	Black
Recommended usage	Home theatre
Consumer Electronics Control (CEC)	VIERA Link
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	956 x 35 x 75 mm
Subwoofer dimensions (WxDxH)	180 x 306 x 408 mm
Connectivity technology	Wired
Digital audio optical in	1
Power source	AC
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	50 W

Weight and Dimensions

Soundbar weight	1540 g
Subwoofer weight	5200 g
