Panasonic SC-PM19 User Manual

6
RQT7369
Before use
A
AM ANT
FM ANT
EXT
LOOP
75
FM outdoor antenna
(not included)
75 coaxial
cable
(not included)
(Only for the U.K.)
Use the antenna
plug adaptor
(included).
B
AM ANT
FM ANT
EXT
LOOP
75
AM outdoor antenna
(not included)
AM loop antenna
(included)
5-12 m
C
AUX
(L)
(R)
Analo
g
ue pla
y
er (not included)
“LINE OUT”
position
Rear panel of this unit
R L

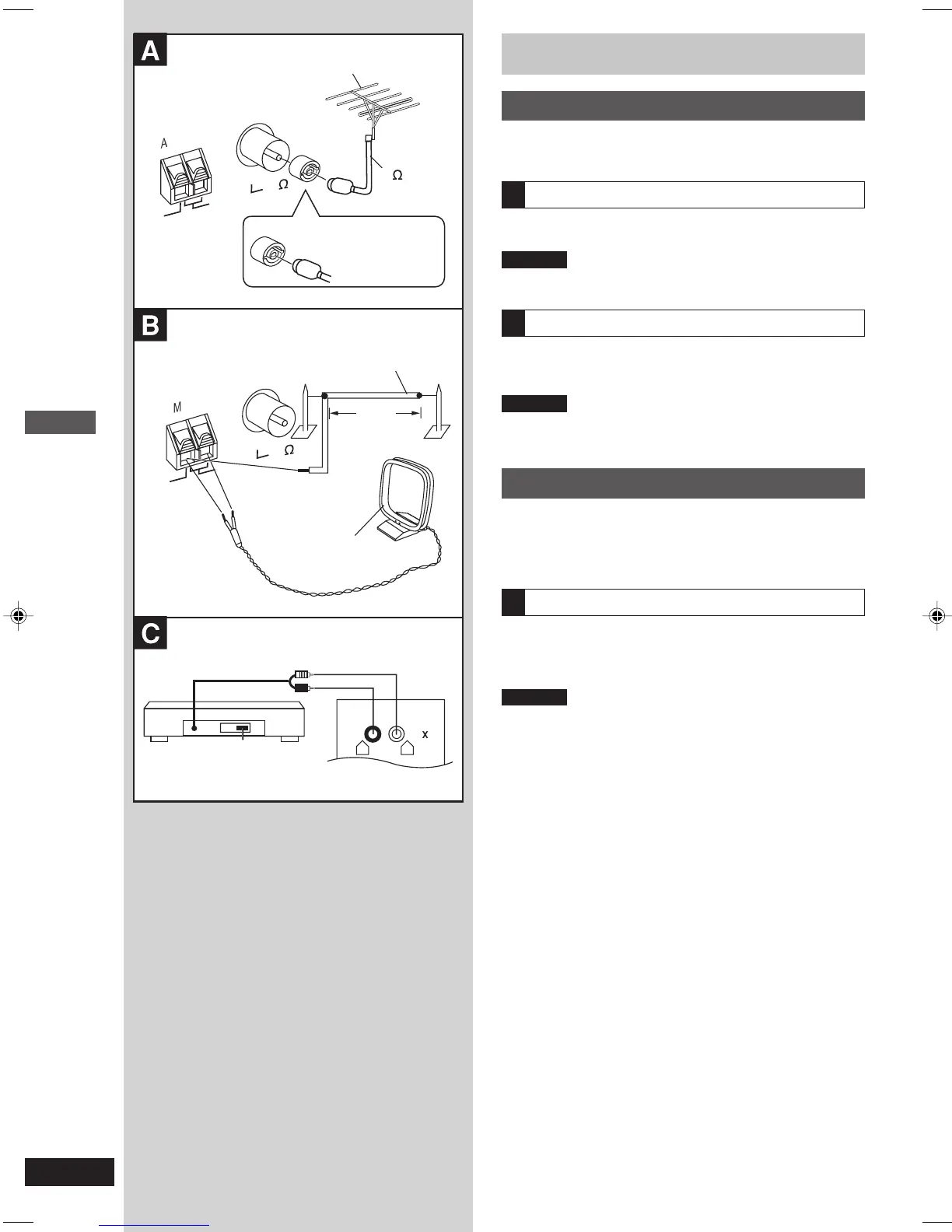

Connections
Optional antenna connections
You may need an outdoor antenna if you use this system in a
mountainous region or inside a reinforced-concrete building,
etc.
A FM outdoor antenna
Disconnect the FM indoor antenna if an FM outdoor antenna is
installed.
Note
An outdoor antenna should be installed by a qualified technician
only.
B AM outdoor antenna
Connect the outdoor antenna without removing the AM loop
antenna. Run 5 to 12 m of vinyl-covered wire horizontally along
a window or other convenient location.
Note
When the unit is not in use, disconnect the outdoor antenna to
prevent possible damage that may be caused by lightning.
Never use an outdoor antenna during a lightning storm.
External unit connections
• Make sure that the power supply for all components has been
turned off before making any connections.
• For details, refer to the operating instructions of the unit which
is to be connected.
• All peripheral components and cables sold separately.
C Connecting analogue equipment
This example shows how to connect an analogue player with a
PHONO OUT/LINE OUT switch.
When units other than those described are to be connected,
please consult your audio dealer.
Note
• Only an analogue player with a built-in phono equalizer can
be connected.
• Set the switch to the “LINE OUT” position at the back of the
analogue player.
RQT7369-B_04-08_EN 19/1/04, 7:10 pm6

Panasonic SC-PM19 Specifications

Amplifier Section

RMS power output (Low channel)	35 W per channel (6 Ω)
RMS power output (High channel)	35 W per channel (6 Ω)
Total Bi-Amp power	70 W per channel
Output impedance (Headphone)	16Ω – 32Ω

FM Tuner Section

Frequency range	87.50 MHz – 108.00 MHz
Sensitivity	1.5 µV (IHF)
Antenna terminal(s)	75 Ω (unbalanced)

AM Tuner Section

Frequency range (9 kHz steps)	522 kHz – 1629 kHz
Frequency range (10 kHz steps)	520 kHz – 1630 kHz
Sensitivity (at 999 kHz)	560 µV/m

Cassette Deck Section

Track system	4 track, 2 channel
Tape speed	4.8 cm/s
Wow and flutter	0.10% (WRMS)

CD Section

Sampling frequency	44.1 kHz
Frequency response	20 Hz – 20 kHz (+1dB, –2 dB)
Bit rate	32 kbps – 320 kbps

Speaker Section

Type	2 way, 2 speaker system
Impedance	6Ω
Dimensions (WxHxD)	128 mm x 250 mm x 222 mm

General

Power supply (Continental Europe)	AC 230 V, 50 Hz
Power supply (United Kingdom, Australia, New Zealand)	AC 230 V – 240 V, 50 Hz
Power consumption	130 W
