Before use

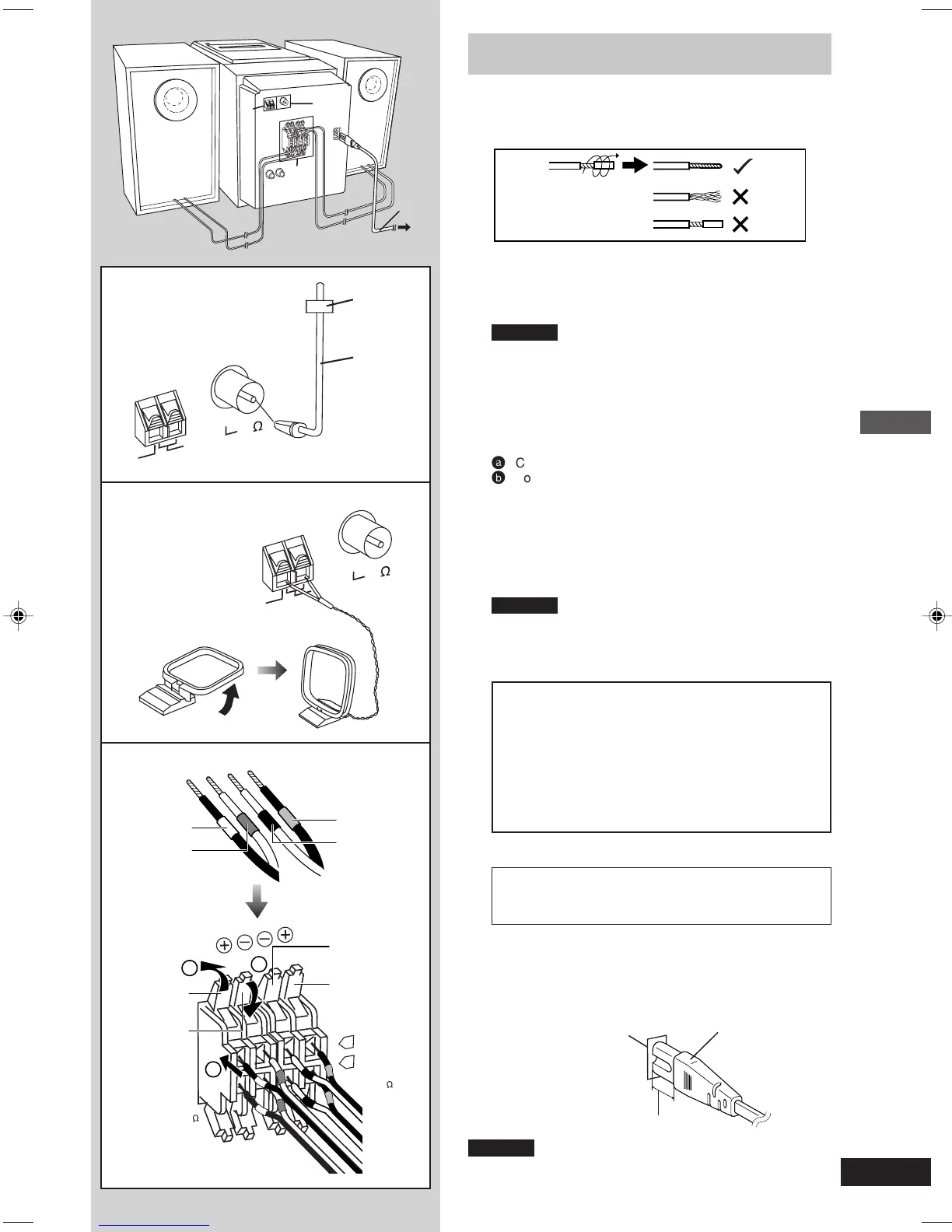

Connections
Plug the AC mains lead into a household mains socket only
after all other connections have been made.
• To prepare the AM loop antenna wire and speaker cords, twist
the vinyl cover tip and pull off.
1 Connect the FM indoor antenna.
Tape the antenna to a wall or column, in a position where
radio signals are received with the least amount of
interference.
Note
For the best reception:
An FM outdoor antenna is recommended. (\ page 6)
2 Connect the AM loop antenna.
Stand the antenna up on its base. Keep loose antenna cord
away from other wires and cords.
3 Connect the speaker cables.
a
Confirm the colours of the tags on the ends of the cords.
b
For White tags:
Connect cords to grey terminals.
For Blue, Black and Red tags:
Connect cords so tag colours match the terminal
colours.
Cords with white and blue tags are for high frequency.
Cords with red and black tags are for low frequency.
Incorrect connection can damage the unit.
Caution
Use only the supplied speakers.
The combination of the main unit and speakers provide the
best sound. Using other speakers can damage the unit and
sound quality will be negatively affected.
Caution
• Use the speakers only with the recommended
system.
Failure to do so may lead to damage to the
amplifier and/or the speakers, and may result in
the risk of fire. Consult a qualified service person
if damage has occurred or if you experience a
sudden change in performance.
• Do not attach these speakers to walls or ceilings.
4 Connect the AC mains lead.
FOR THE UNITED KINGDOM ONLY
READ THE CAUTION FOR THE AC MAINS LEAD ON
PAGE 3 BEFORE CONNECTION.
Insertion of Connector
Even when the connector is perfectly inserted, depending
on the type of inlet used, the front part of the connector
may jut out as shown in the drawing.
However there is no problem using the unit.
Appliance inlet
Connector
Approx. 3.5 mm
Note
The included AC mains lead is for use with this unit only. Do
not use it with other equipment.
(R)
(L)
4
2
1
3
1
AM ANT
FM ANT
EXT
LOOP
75
Adhesive
tape
FM indoor
antenna
2
AM ANT
FM ANT
EXT
LOOP
75
AM loop antenna
3
R
L
HIGH (6
)
LOW (6
)
Red (+)
Grey (+)
Blue (–)
Black (–)
White
Blue
Red
Black
a
b
1
3
2
To household
mains socket
RQT7369-B_04-08_EN 19/1/04, 7:09 pm5
