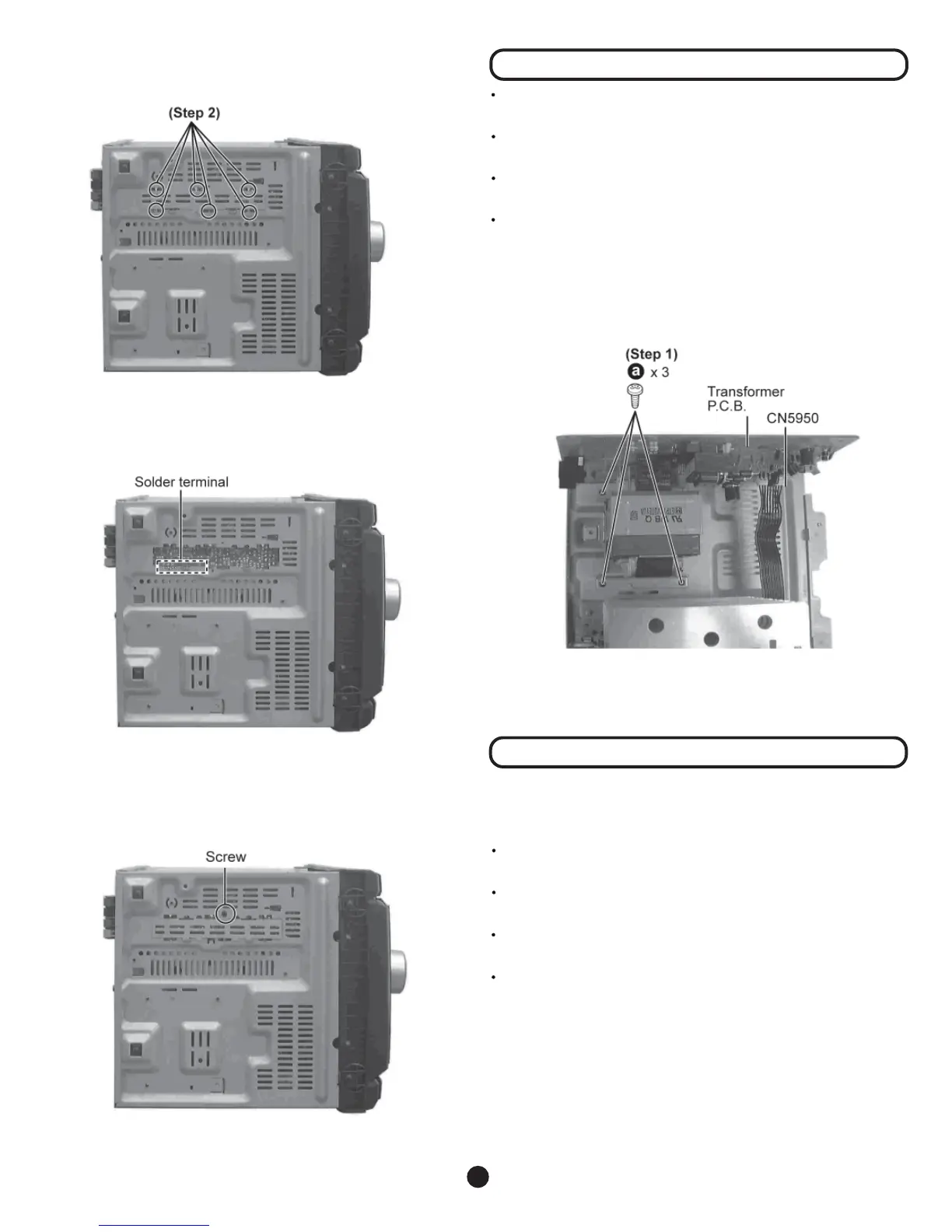

Panasonic SC-TM23 - Disassembly of Transformer P.C.B; Disassembly of Front Panel Unit

Step 2 Break the joint with a metal cutter as shown below.
Step 3 Unsolder the terminals of Power Amp IC, transistor and
replace the components.
Step 4 Fix back the cut portion with a screw as shown.
10.9 Disassembly of Transformer P.C.B.
· Follow the (Step 1) - (Step 2) of Item 10.3 -
Disassembly of Top Cabinet
· Follow the (Step 1) - (Step 6) of Item 10.4 -
Disassembly of CD Lid
· Follow the (Step 1) of Item 10.5 - Disassembly of the
Rear Panel
· Follow the (Step 1) - (Step 3) of Item 10.6 -
Disassembly of the CD Mechanism Unit
Step 1 Remove 3 screws, disconnect connector CN5950.
10.10 Disassembly of Front Panel Unit
· Follow the (Step 1) - (Step 2) of Item 10.3 -
Disassembly of Top Cabinet
· Follow the (Step 1) - (Step 6) of Item 10.4 -
Disassembly of CD Lid
· Follow the (Step 1) of Item 10.5 - Disassembly of the
Rear Panel
· Follow the (Step 1) - (Step 3) of Item 10.6 -
Disassembly of the CD Mechanism Unit
Step 1 Lay the unit as shown below.
