Fig.5
Fig.6

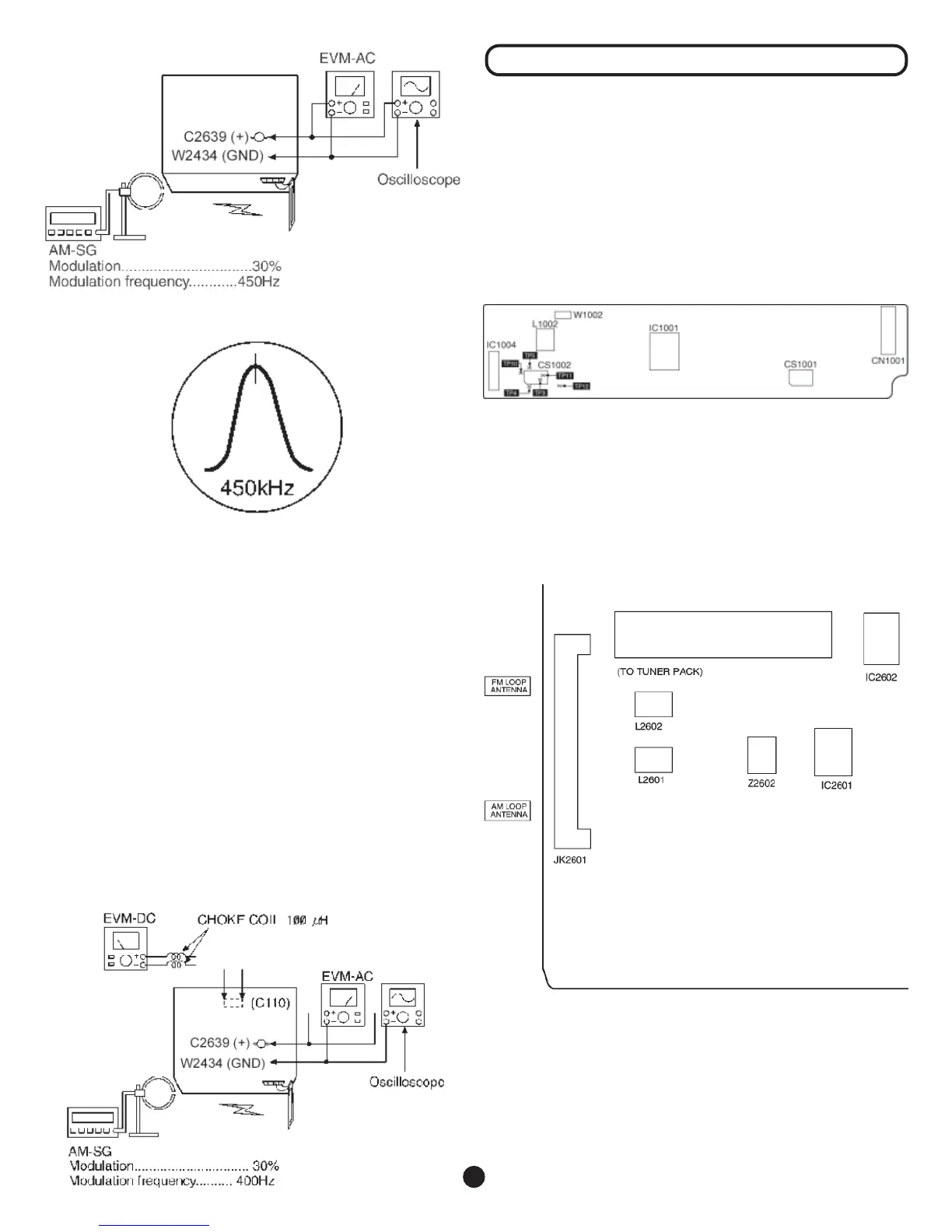

14.2.2 AM RF Adjustment
Connect the instrument as shown in Fig. 7.
Set the unit to AM mode.
Set AM-SG to 520kHz.
Receive 520kHz in the unit.
Adjust Z2602 (OSC) so that the EVM-AC is maximized.
Set AM-SG to 600Hz.
Receive 600Hz in the unit.
Adjust Z2602 (ANT) so that the EVM-SG is maximized.
Set AM-SG to 520kHz.
Receive 520kHz in the unit.
Adjust L2602 (OSC) so that the EVM-DC value is with
1.1±0.5V.
Fig.7
14.3 Alignment Points
14.3.1 Cassette Deck Section
14.3.2 Tuner Section
