Step 4 Push the lever upward, and then open the cassette lid
ass’y (For DECK1 and DECK2).
Step 5 Tilt the cassette mechanism unit in the direction of
arrow (1), and then remove it in the direction of arrow (2).

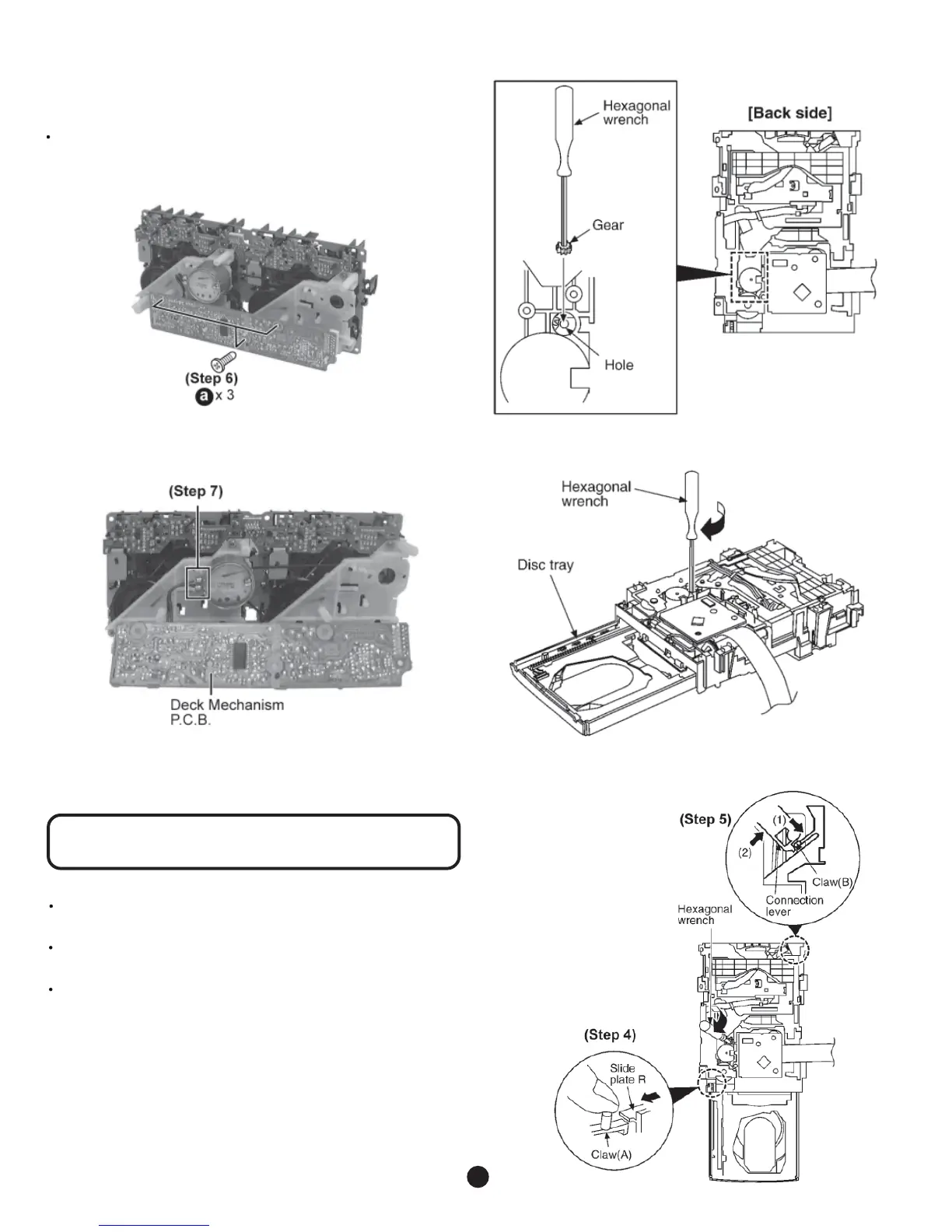

· For replacement of Deck Mechanism P.C.B.
Step 6 Remove 3 screws.
Step 7 Unsolder the motor terminals.
Step 8 Remove Deck Mechanism P.C.B.
10.12 CD Mechanism Main Component
Replacement Procedures
· Follow the (Step 1) - (Step 2) of Item 10.3 -
Disassembly of Top Cabinet
· Follow the (Step 1) - (Step 6) of Item 10.4 -
Disassembly of CD Lid
· Follow the (Step 1) - (Step 6) of Item 10.6 -
Disassembly of the CD Mechanism Unit
16
10.12.1 Replacement of the Traverse Deck
Step 2 Insert the gear with hexagonal wrench into the hole.
Step 3 Rotate the hexagonal wrench in the direction of
arrow (clockwise), and then open the disc tray fully.
