35
10.16 Rectification for tape jam problem
· Follow the (Step 1) - (Step 2) of Item 10.3 -
Disassembly of Top Cabinet

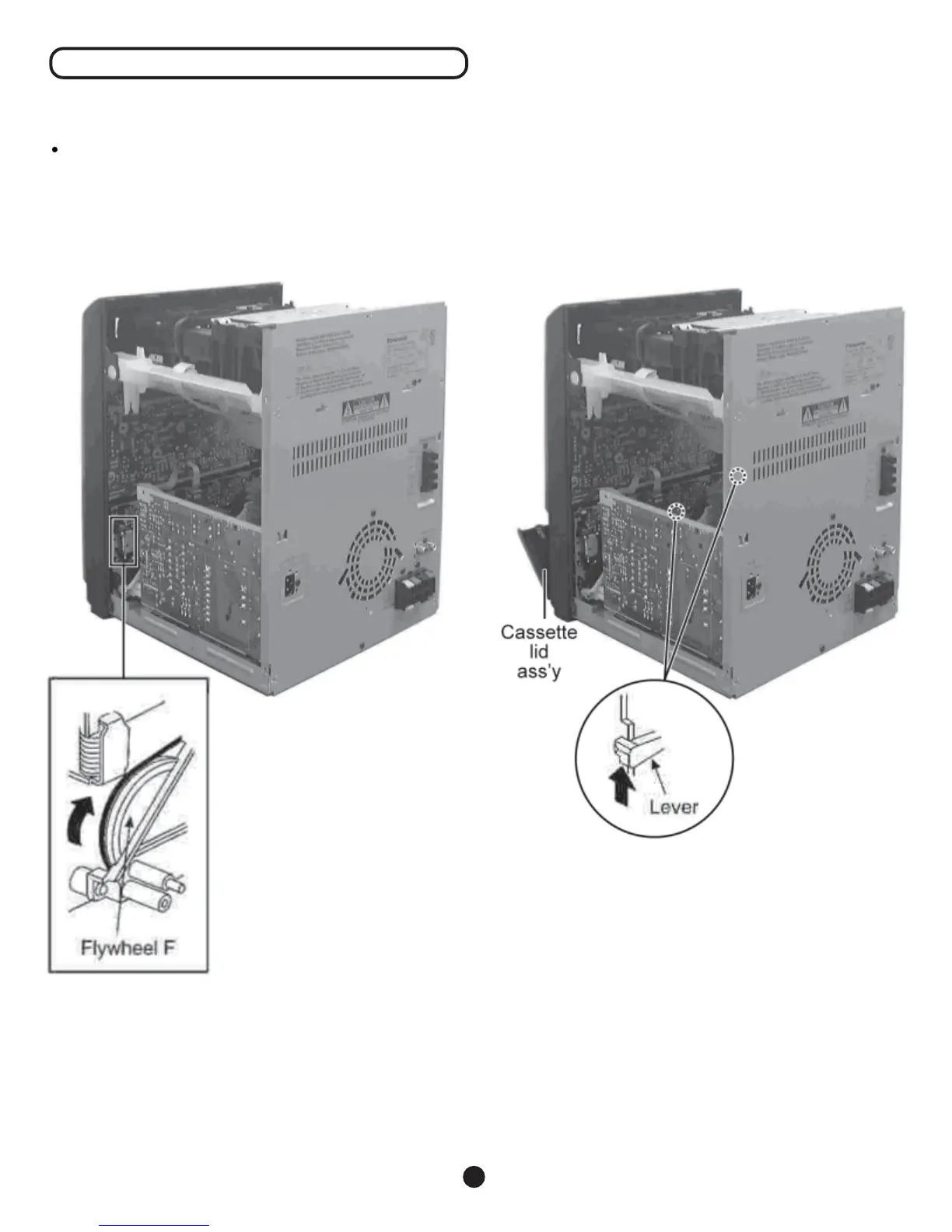

Step 1 If a cassette tape cannot be removed from the
deck since the tape is caught by the capstan or pinch
roller during playback or recording, rotate the flywheel F in
the direction of the arrow to remove the tape.
Step 2 Force the lever upward and open the cassette lid
ass’y. Take the cassette tape off.
To Next Page
