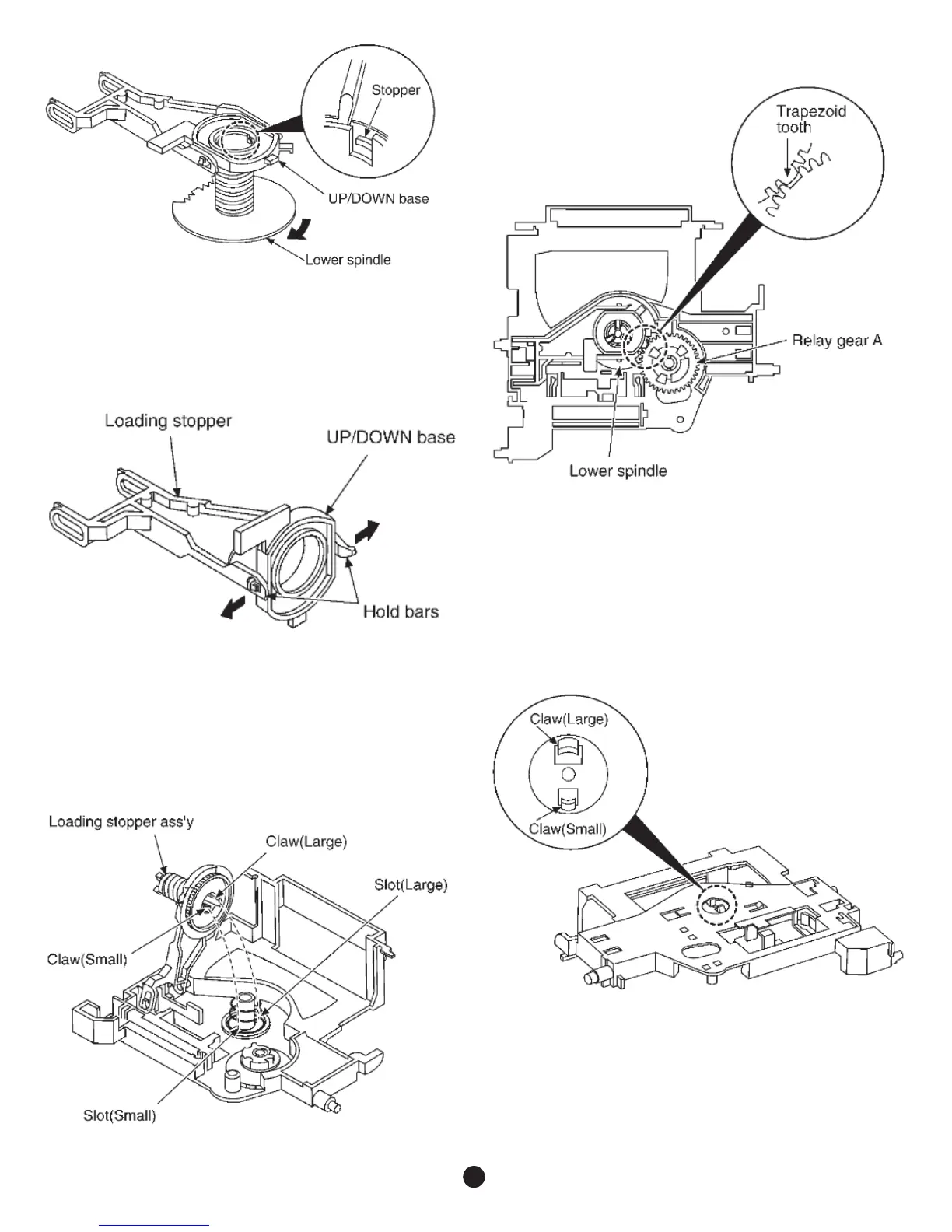

Step 13 Rotate the lower spindle in the direction of arrow
until the lower spindle interferes with stopper.
Step 14 Insert the thin tip of minus screwdriver between the
lower spindle and UP/DOWN base, and then slacken the
lower spindle to release the stopper. Then, rotate the lower
spindle and remove it.
Step 15 Rotate the UP/DOWN base at a 90° angle. Then,
spread the hold bars of loading stopper and remove the UP/
DOWN base.
[Installation for loading stopper ass’y]
Step 1 Align the claw of loading stoppers ass’y with the slot of
spindle base. (Caution should be exercised when alignment
of claw due to the size of claws.)
Step 2 Lower the loading stopper ass’y, and then align the
lower spindle with the trapezoid tooth of relay gear A.
Step 3 Force the loading stopper ass’y, latch the claw firmly.
[Reassembly for mechanism base drive unit]
