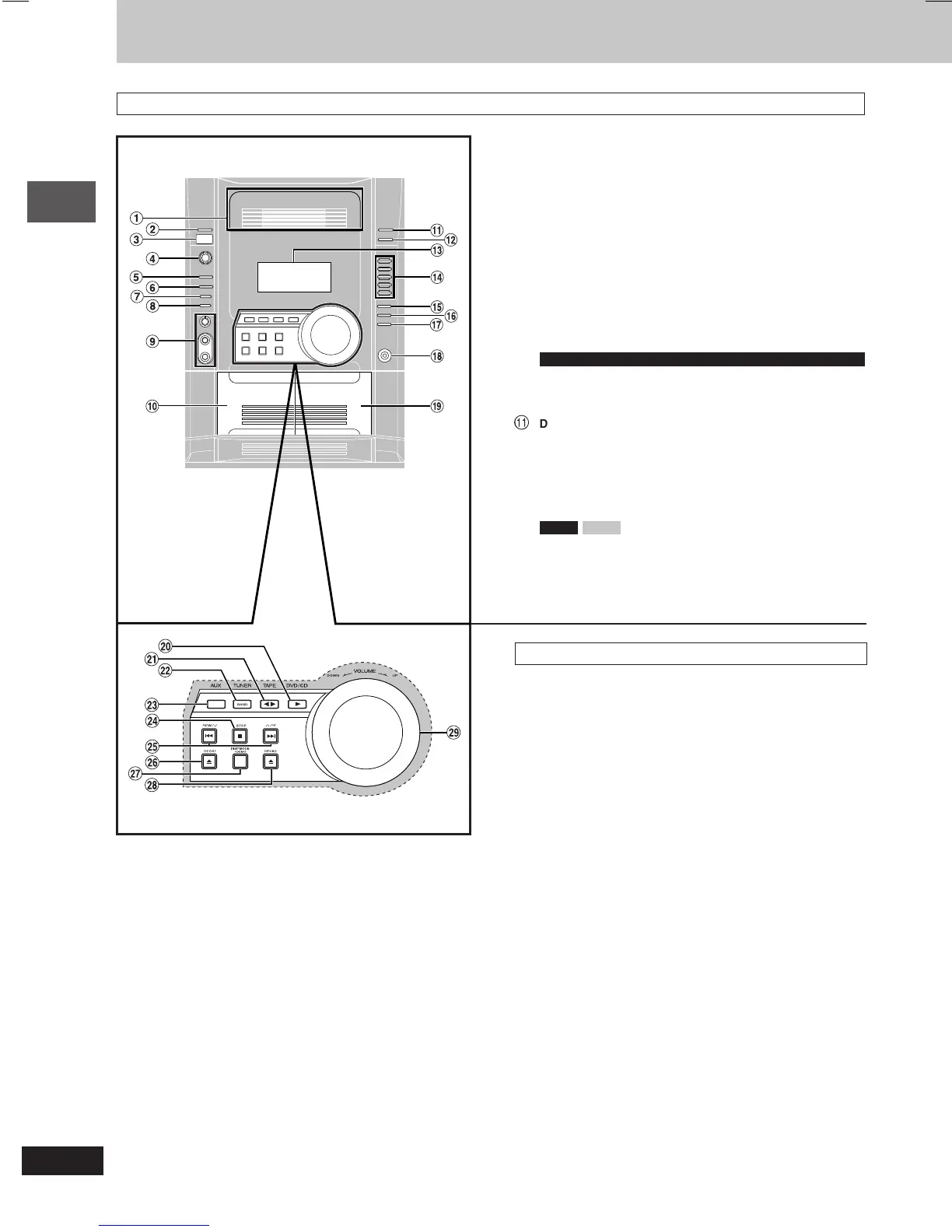

1 Disc trays
2 Disc check button [DISC CHECK] ....................................... 15
3 Remote control signal sensor
4 AC supply indicator [AC IN]
This indicator lights when the unit is connected to the AC mains
supply.
Standby/on switch [
ff
ff
f/I]
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
5 Multi re-master button [MULTI RE-MASTER] ......................27
6 Super surround button [SUPER SURROUND] ................... 26
7 Deck 1/2 selection button [DECK 1/2] .................................25
8 Record button [a REC] ....................................................... 28
9 For Saudi Arabia, Kuwait, the Middle East, South Africa and Southeast Asia
Microphone volume control [MIC VOL MIN, MAX] .............30
Microphone jacks [MIC 1, 2] ................................................ 30
! Deck 1 cassette holder ......................................................... 25
Å Disc tray open/close button [OPEN/CLOSE c] ................. 14
# Disc change button [DISC CHANGE c] ............................. 15
$ Display
% DVD/CD direct play buttons [1–5] .......................................15
& Super sound EQ button [SUPER SOUND EQ] ................... 27
( Sound EQ button [SOUND EQ] ............................................ 27
)
VK91D VK81D
Subwoofer button [SUBWOOFER] ........... 27
~ Headphones jack [PHONES] ................................................32
+ Deck 2 cassette holder ......................................................... 25
Main unit
Center console
, DVD/CD play button [:, DVD/CD] ....................................... 10
- Tape play/direction button [; :, TAPE] ............................. 25
. Tuner/band select button [BAND, TUNER] ........................ 24
/ AUX button [AUX] ................................................................ 34
: Stop button [L, STOP] ......................................................... 14
; Disc skip/search/slow-motion play, tape fast-forward/
rewind, tune/preset channel select, time adjust buttons
[g, REW/
44
44
4, f,
33
33
3/FF]......................................... 14, 24, 25
< Deck 1 open button [c, DECK1] ......................................... 25
= Display mode, demonstration button
[DISP MODE, –DEMO] .................................................... 11, 33
> Deck 2 open button [c, DECK2] ......................................... 25
? Volume control [VOLUME DOWN, UP] ............................... 14
