8 Disassembly and Assembly Instructions

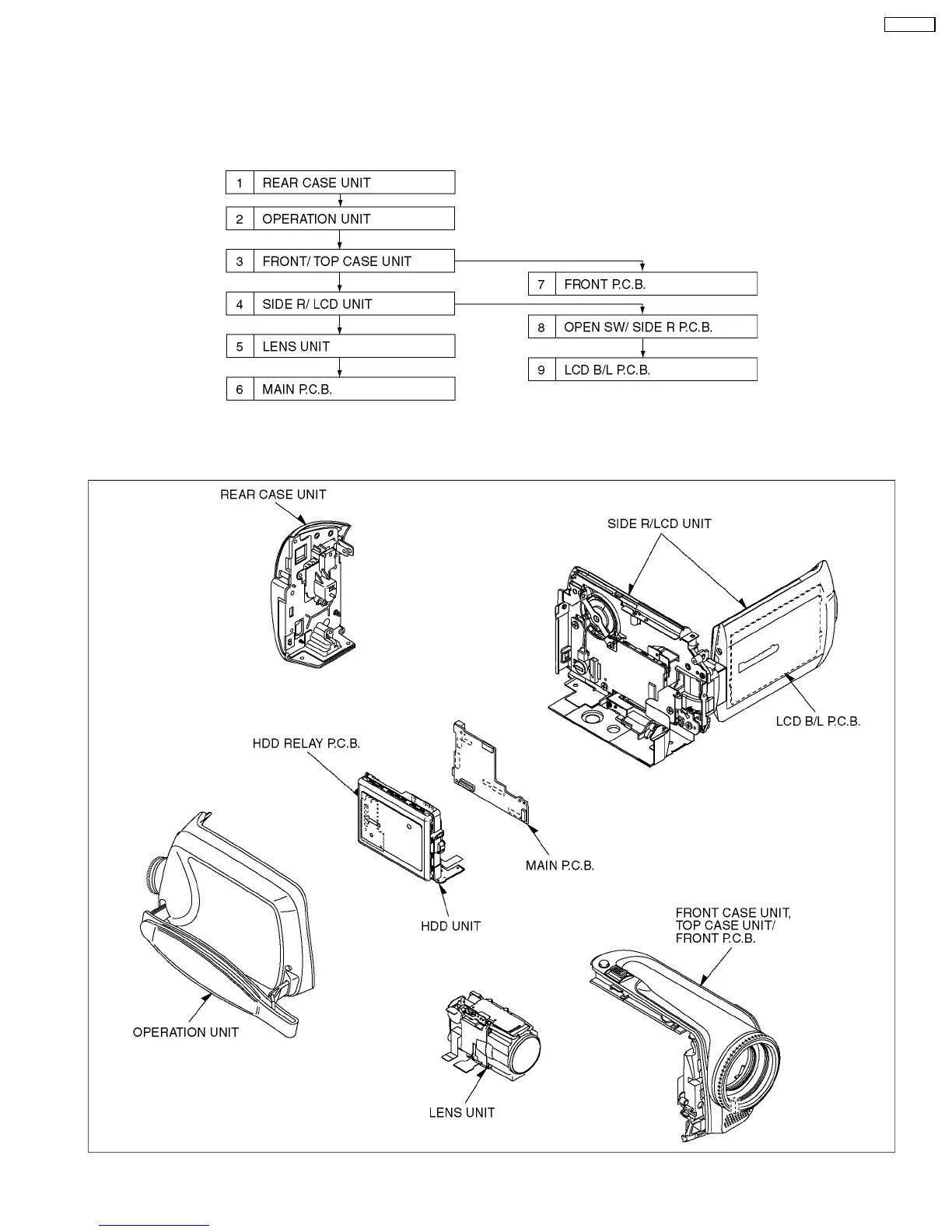

8.1. Disassembly Flow Chart
This flow chart indicates the disassembly steps the cabinet parts and P.C.B.. Unit in order to access to be serviced.
When reinstalling, perform the steps in the reverse order.
8.2. P.C.B. Layout
Fig. F1
29
SDR-H20E
