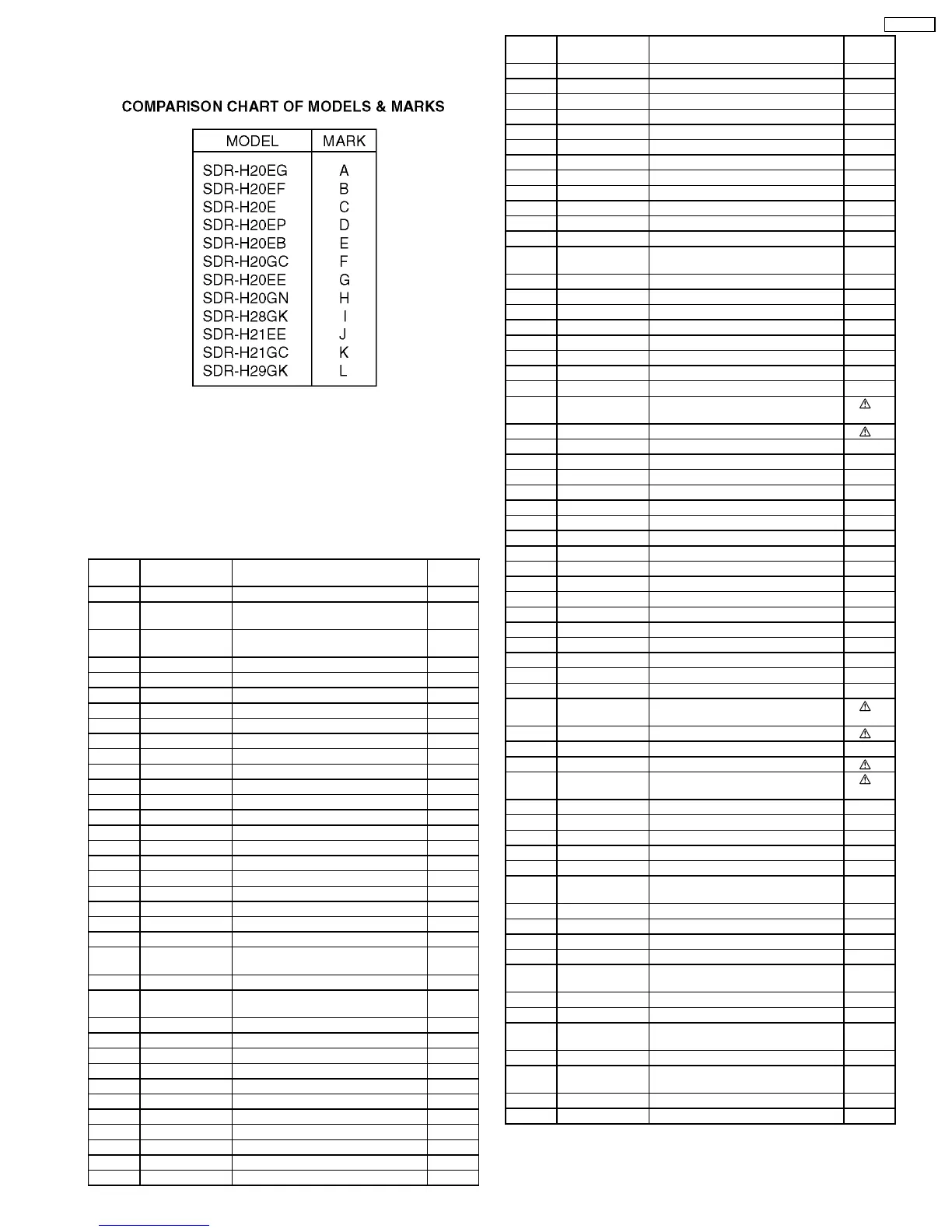

17.2. MECHANICAL REPLACEMENT
PARTS LIST
Definition of Parts supplier:
1. Parts with mark "SPC" in the Remarks column are
supplied from Spare Parts Center of Panasonic AVC
Company.
2. Parts without mark in the Remarks column are supplied
from PSEC.
MECHANICAL REPLACEMENT PARTS
Ref.
No.
Part No. Part Name & Description Remarks
1 LSYK2045 SIDE L UNIT 1
3 LSYK2155 OPERATION SHEET UNIT (
A,B,C,D,E,F,G,H,I )
1
3 LSYK2181 OPERATION SHEET UNIT ( J,K,L
)
1
4 LSJB8395 SIDE R F.P.C. 1
5 LSJB8397 HDD RELAY F.P.C. 1
6 LSMA0998 LENS ANGLE A 1
7 LSYK2231 BOTTOM ANGLE UNIT 1
8 LSMX0235 SPACER 1
9 LSSC0945 SPEAKER FIXING ANGLE 1
10 L0AA02A00074 SPEAKER 1
11 LSJB8394 FRONT F.P.C. 1
12 LSSC0949 MAIN SHIELD PLATE A 1
13 LSYK2072 ZOOM UNIT 1
14 LSSC0960 LED EARTH PLATE 1
15 LSGF0546 ILLUMINATE PIECE 1
16 N3CZBQH00001 HARD DISK DRIVE 1
17 LSMG0181 HDD CUSHION 2
18 LSMG0182 SUB SUPPORT DUMPER 2
19 LSSC0975 TOP CASE,ABS RESIN 1
20 LSSC0947 FRONT EARTH ANGLE 1
22 LSMF0563 SHEET ( J,K,L ) 1
27 LSYK2076 REAR CASE UNIT,ABS RESIN 1
31 LSYK2224 SIDE R SHAFT UNIT (
A,B,C,D,E,F,G,H,I )
1
31 LSYK2226 SIDE R SHAFT UNIT ( J,K,L ) 1
33 LSYK2082 LCD CASE A UNIT (
A,B,C,D,E,F,G,H )
1
33 LSYK2098 LCD CASE A UNIT ( I ) 1
33 LSYK2177 LCD CASE A UNIT ( J,K ) 1
33 LSYK2178 LCD CASE A UNIT ( L ) 1
34 LSKM1606 LCD CASE B,ABS RESIN 1
35 LSSC0924 LCD SHIELD CASE,ABS RESIN 1
36 LSYK2153 PANEL HOLDER UNIT 1
37 LSGL1518 LEAD LIGHT PANEL 1
38 LSGL0511 DIFFUSION SHEET 1
39 LSGL0506 REFLECT SHEET 1
40 LSGL0443 BEF SHEET 1
41 LSGL0444 BEF SHEET A 1
Ref.
No.
Part No. Part Name & Description Remarks
42 L5BDDXH00031 LIQUID CRYSTAL DISPLAY PANEL 1
44 LSYK2060 LCD CASE B UNIT,ABS RESIN 1
51 LSYK2065 FRONT UNIT 1
52 LSYK2067 TOP ZOOM UNIT 1
53 LSYK2217 TOP COVER U 1
54 LSYK2072 LENS HOOD U 1
61 LSXN0046 LENS UNIT 1
63 LSFL0292 OPTICAL LOW PASS FILTER 1
64 LSMX0230 FILTER RUBBER 1
65 L6HA66NB0007 ZOOM MOTOR UNIT 1
66 L6HA66NB0008 FOCUS MOTOR UNIT 1
101 VPF1129 POLY BAG 1
103 LSPG2421 PACKING CASE,PAPER (
A,B,C,D,E )
1
103 LSPG2422 PACKING CASE,PAPER ( F,G,H ) 1
103 LSPG2423 PACKING CASE,PAPER ( I ) 1
103 LSPG2455 PACKING CASE,PAPER ( J,K ) 1
103 LSPG2456 PACKING CASE,PAPER ( L ) 1
104 LSPN0793 PAD 1
106 LSYK2119 LENS CAP SET 1
107 LSPN0772 TOP PAD 1
108 K2GJ2DC00011 DC CABLE W/PLUG 1
110 DE-974GC AC ADAPTOR (
A,B,C,D,E,F,G,H,J,K )
1
110 DE-974HC AC ADAPTOR ( I,L ) 1
111 RP-SDR512MK0 SD CARD 1
112 K2KZ9CB00001 AUDIO VIDEO CABLE W/PLUG 1
115 K1HA05CD0010 USB CABLE W/PLUG 1
120 LSQT1207-A INSTRUCTION BOOK ( A ) 1
120 LSQT1208-A INSTRUCTION BOOK ( A,B ) 1
120 LSQT1209-A INSTRUCTION BOOK ( C ) 1
120 LSQT1210-A INSTRUCTION BOOK ( D ) 1
120 LSQT1211-A INSTRUCTION BOOK ( E ) 1
120 LSQT1212-A INSTRUCTION BOOK ( F,K ) 1
120 LSQT1213-A INSTRUCTION BOOK ( G,J ) 1
120 LSQT1214-A INSTRUCTION BOOK ( H ) 1
120 LSQT1215-A INSTRUCTION BOOK ( I,L ) 1
120 LSQT1216-A INSTRUCTION BOOK ( A ) 1
120 LSQT1218-A INSTRUCTION BOOK ( C ) 1
120 LSQT1219-A INSTRUCTION BOOK ( D ) 1
120 LSQT1221-A INSTRUCTION BOOK ( F,K ) 1
120 LSQT1222-A INSTRUCTION BOOK ( F,K ) 1
125 K2CR2DA00004 AC CORD W/PLUG (
A,B,C,D,F,G,J,K )
1
126 K2CJ2DA00011 AC CORD W/PLUG ( H ) 1
127 LSFT0727 CD-ROM 1
128 K2CA2CA00020 AC CORD W/PLUG ( I,L ) 1
129 K2CT3CA00004 AC POWER CORD W/PLUG,250V (
E,F,K )
1
519 XQN16+BF4FN SCREW,STEEL 14
533 XQN16+BJ4FN SCREW,STEEL 10
536 XQN16+AJ4FN SCREW,STEEL 2
537 XQN16+BJ5FN SCREW,STEEL 7
538 XQN14+BJ4FN SCREW,STEEL 8
701 LSEK0684 ELECTRIC CONDENSOR MICROPHONE
UNIT
1
702 LSMG0136 MIC DAMPER 1
703 LSSC0961 FRONT EARTH PLATE 1
721 K1NA09E00063 SD UNIT 1
E10 LSEP8388P1 MAIN P.C.B. 1
E30 LSEP8391A1 FRONT P.C.B. (
A,B,C,D,E,F,G,H,I )
1
E30 LSEP8391C1 FRONT P.C.B. ( J,K,L ) 1
E40 LSEP8398A1 HDD RELAY P.C.B. 1
E50 LSEP8367C1 LIQUID CRYSTAL DISPLAY
BACKLIGHT P.C.B. NR
1
E60 LSEQ0839 CCD P.C.B. NR 1
E70 LSEP8392A1 SIDE R P.C.B. (
A,B,C,D,E,F,G,H,I )
1
E70 LSEP8392B1 SIDE_R P.C.B. ( J,K,L ) 1
E80 LSEP8405A1 OPEN SWITCH P.C.B. 1
75
SDR-H20E
