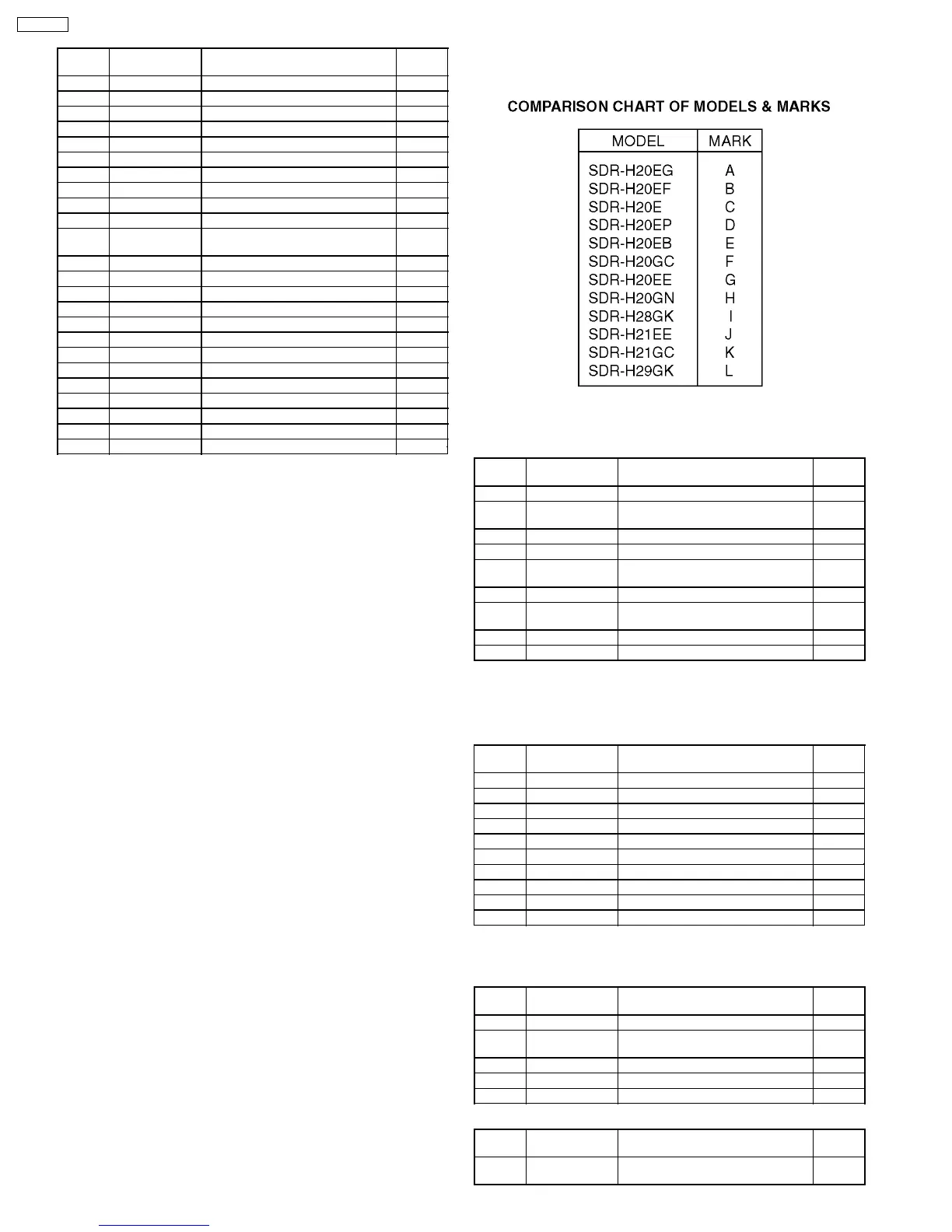

Panasonic SDR-H20EE - Electrical Replacement Parts List

SERVICE FIXTURES AND TOOLS
Ref.
No.
Part No. Part Name & Description Remarks
LSVQ0028 PLIER FOR NON ZIF CONNECTOR
LSUQ0050 GREASE
VUVS0007 EXTENSION CABLE 12P
VFKW0124A EXTENSION CABLE 14P
LSUA0017 EXTENSION CABLE 18P
VUVS0012 EXTENSION CABLE 22P
VFK1284 EXTENSION CABLE 24P SPC
VFK1286 EXTENSION CABLE 16P SPC
LSVQ0112 HDD Connector Tool
VFK1164LBX1 LIGHT BOX SPC
VFK1164TCM02 INFINITY LENS (WITH FOCUS
CHART)
SPC
VFK1164TAR58 ATTACHMENT RING (58mm) SPC
VFK1164TAR55 ATTACHMENT RING (55mm) SPC
VFK1164TAR52 ATTACHMENT RING (52mm) SPC
VFK1164TAR49 ATTACHMENT RING (49mm) SPC
VFK1164TAR46 ATTACHMENT RING (46mm) SPC
VFK1164TAR43 ATTACHMENT RING (43mm) SPC
VFK1164TAR37 ATTACHMENT RING (37mm) SPC
VFK1164TAR3A ATTACHMENT RING (30.5mm) SPC
VFK1164TAR27 ATTACHMENT RING (27mm) SPC
VFK1164TFCT2 COLOR CONVERSION FILTER (C14) SPC
VFK1164TFWC2 WHITE CHART SPC
VFK1164TFCB2 COLOR BAR CHART SPC
VFK1164TFGS2 GRAY SCALE CHART SPC
17.3. ELECTRICAL REPLACEMENT
PARTS LIST
Definition of Parts supplier:
1. All parts are supplied from PSEC.
PRINTED CIRCUIT BOARD ASSEMBLY
Ref.
No.
Part No. Part Name & Description Remarks
E10 LSEP8388P1 MAIN P.C.B. 1
E30 LSEP8391A1 FRONT P.C.B. (
A,B,C,D,E,F,G,H,I )
1
E30 LSEP8391C1 FRONT P.C.B. ( J,K,L ) 1
E40 LSEP8398A1 HDD RELAY P.C.B. 1
E50 LSEP8367C1 LIQUID CRYSTAL DISPLAY
BACKLIGHT P.C.B. NR
1
E60 LSEQ0839 CCD P.C.B. NR 1
E70 LSEP8392A1 SIDE R P.C.B. (
A,B,C,D,E,F,G,H,I )
1
E70 LSEP8392B1 SIDE_R P.C.B. ( J,K,L ) 1
E80 LSEP8405A1 OPEN SWITCH P.C.B. 1
17.3.1. MAIN P.C.B.
FPC CONNECTORS
Ref.
No.
Part No. Part Name & Description Remarks
B21 K1KA50AA0697 CONNECTOR 50P 1
FP11 K1KA09AA0051 CONNECTOR 9P 1
FP31 K1MN14BA0088 CONNECTOR 14P 1
FP41 K1MN18BA0196 CONNECTOR 18P 1
FP61 K1MN16BA0197 CONNECTOR 16P 1
FP62 K1MN24A00062 CONNECTOR 24P 1
FP63 K1MN16AA0058 CONNECTOR 16P 1
FP71 K1MN22A00065 CONNECTOR 22P 1
FP72 K1MN12A00075 CONNECTOR 12P 1
FP81 K1MN24AA0091 CONNECTOR 24P 1
17.3.2. FRONT P.C.B.
INTEGRATED CIRCUITS
Ref.
No.
Part No. Part Name & Description Remarks
IC4801 C0ABBB000369 IC, LINEAR 1
or
IC4801
C0ABBB000262 IC, LINEAR 1
IC7801 L2ES00000016 GYROSCOPE 1
IC7802 L2ES00000017 GYROSCOPE 1
IC7803 C0ABHA000078 IC, LINEAR 1
TRANSISTORS
Ref.
No.
Part No. Part Name & Description Remarks
Q4301 2SC559200L TRANSISTOR SI NPN CHIP (
J,K,L )
1
76
SDR-H20E
