15.4. SIDE R P.C.B.
SDR-H20E/EB/EE/EF/EG/EP/GC/GN, SDR-H21EE/GC, SDR-H28GK, SDR-H29GK
NOTE:
FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES,
REFER TO BEGINNING OF SCHEMATIC SECTION.
NOTE:
CIRCUIT BOARD LAYOUT SHOWS COMPONENTS INSTALLED FOR VARIOUS MODELS.
FOR PROPER PARTS CONTENT FOR THE MODEL YOU ARE SERVICING,
PLEASE REFER TO THE SCHEMATIC DIAGRAM AND PARTS LIST.
NOTE:
CIRCUIT BOARD LAYOUT INCLUDES COMPONENTS WHICH ARE NOT USED.
SIDE R P.C.B.
LSEP8392A1 /LSEP8392B1
SIDE R P.C.B. LSEP8392A1 (A,B,C,D,E,F,G,H,I)
/ LSEP8392B1 (J,K,L)
IMPORTANT SAFETY NOTICE:
COMPONENTS IDENTIFIED BY THE SIGN HAVE
SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.
WHEN REPLACING ANY OF THESE COMPONENTS,
USE ONLY THE SPECIFIED PARTS.
COMPARISON CHART
OF MODELS & MARKS
MODEL MARK
SDR-H20EG A
SDR-H20EF B
SDR-H20E C
SDR-H20EP D
SDR-H20EB E
SDR-H20GC F
SDR-H20EE G
SDR-H20GN H
SDR-H28GK I
SDR-H21EE J
SDR-H21GC K
SDR-H29GK L
Not Used PT

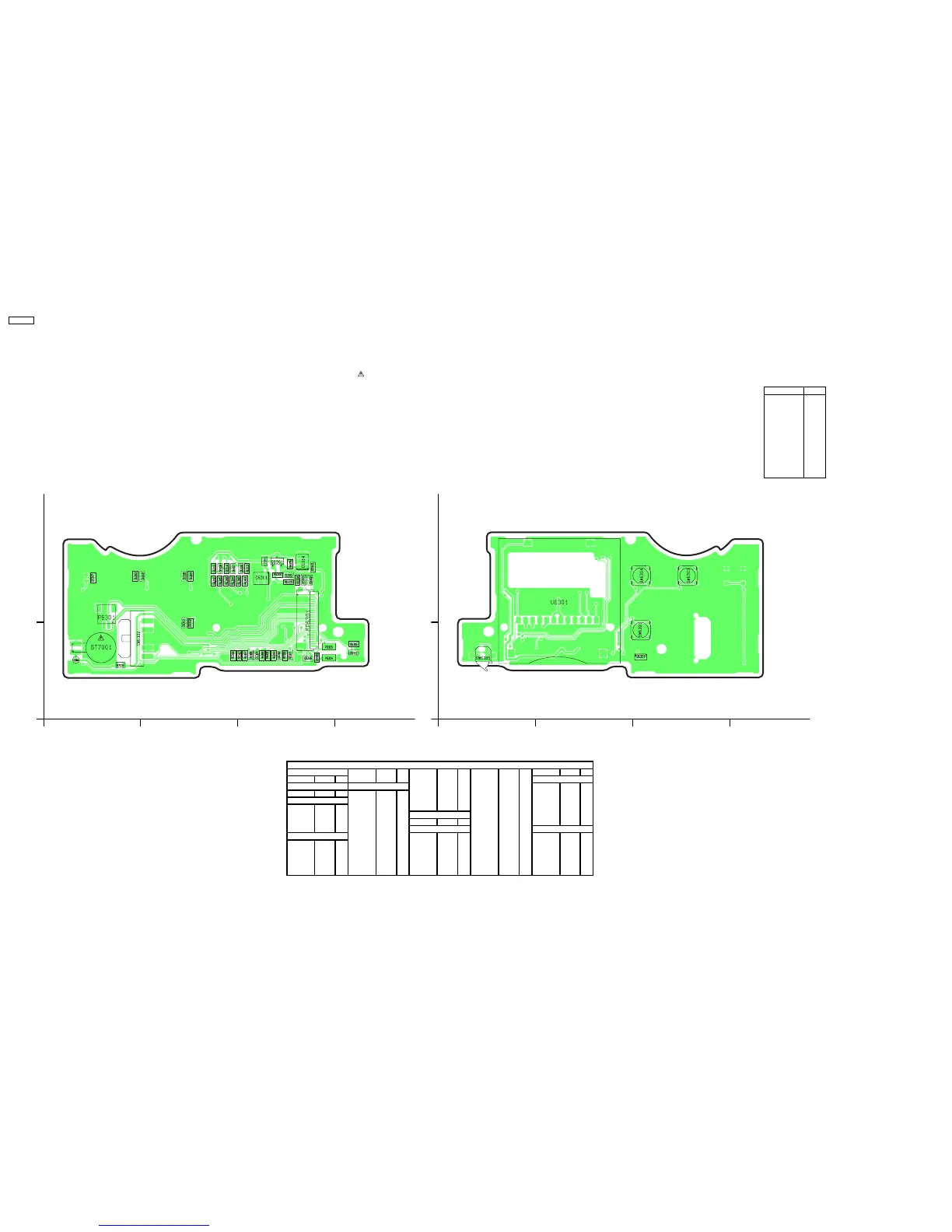

(COMPONENT SIDE)
LSJB8392
(FOIL SIDE)
LSJB8392
Parts Location
D6306 D-1 C C6314 C-2 C R6307 C-1 C R7001 A-1 C
Q6301 C-2 C D6307 A-2 C C6315 B-2 C R6308 B-2 C
C6316 C-1 C R6309 B-2 C SW6301 C-1 F
TP7002 A-1 C C6301 C-2 C C6317 D-1 C R6310 B-2 C SW6302 A-1 C
C6302 C-2 C C6318 C-1 C R6311 C-1 C SW6303 C-2 F
FP6301 C-1 C C6303 C-2 C C6319 A-2 C R6312 C-1 C SW6304 C-2 F
P6301 A-2 C C6304 C-1 C R6313 C-2 C SW6305 A-1 F
P6303 C-1 C C6305 C-1 C L6301 C-2 C R6314 B-2 C SW6306 D-2 F
P6304 C-1 C C6306 C-2 C R6315 B-2 C
C6307 B-2 C R6301 C-1 C R6322 C-2 C BT7001 A-1 C
D6301 C-1 F C6308 B-2 C R6302 B-1 C R6323 C-2 C U6301 B-2 F
D6302 B-1 C C6309 C-2 C R6303 C-2 C R6324 C-2 C
D6303 A-2 C C6310 C-2 C R6304 B-2 C R6325 C-2 C
D6304 B-2 C C6312 A-2 C R6305 B-2 C R6326 C-1 C
D6305 C-1 C C6313 B-1 C R6306 C-1 C R6327 C-1 C
SIDE R P.C.B.
Transistor
Test Point
Connectors
Miscellaneous
Diodes
Capasitors
Coil
Resistors
