15.2. HDD RELAY P.C.B.
SDR-H20E/EB/EE/EF/EG/EP/GC/GN, SDR-H21EE/GC, SDR-H28GK, SDR-H29GK
NOTE:
FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES,
REFER TO BEGINNING OF SCHEMATIC SECTION.
NOTE:
CIRCUIT BOARD LAYOUT SHOWS COMPONENTS INSTALLED FOR VARIOUS MODELS.
FOR PROPER PARTS CONTENT FOR THE MODEL YOU ARE SERVICING,
PLEASE REFER TO THE SCHEMATIC DIAGRAM AND PARTS LIST.
NOTE:
CIRCUIT BOARD LAYOUT INCLUDES COMPONENTS WHICH ARE NOT USED.
HDD RELAY P.C.B.
LSEP8398A1
HDD RELAY P.C.B. LSEP8398A1
NOTE: MULTILAYER P.C.B.
THIS P.C.B. IS Multi-Layer P.C.B. THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN
FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT PATETRNS ARE SINGLE PATTERN FOR EACH
SIDE THAT MAKE EASY TO SIGHT THE COMPONENT LAYOUT.

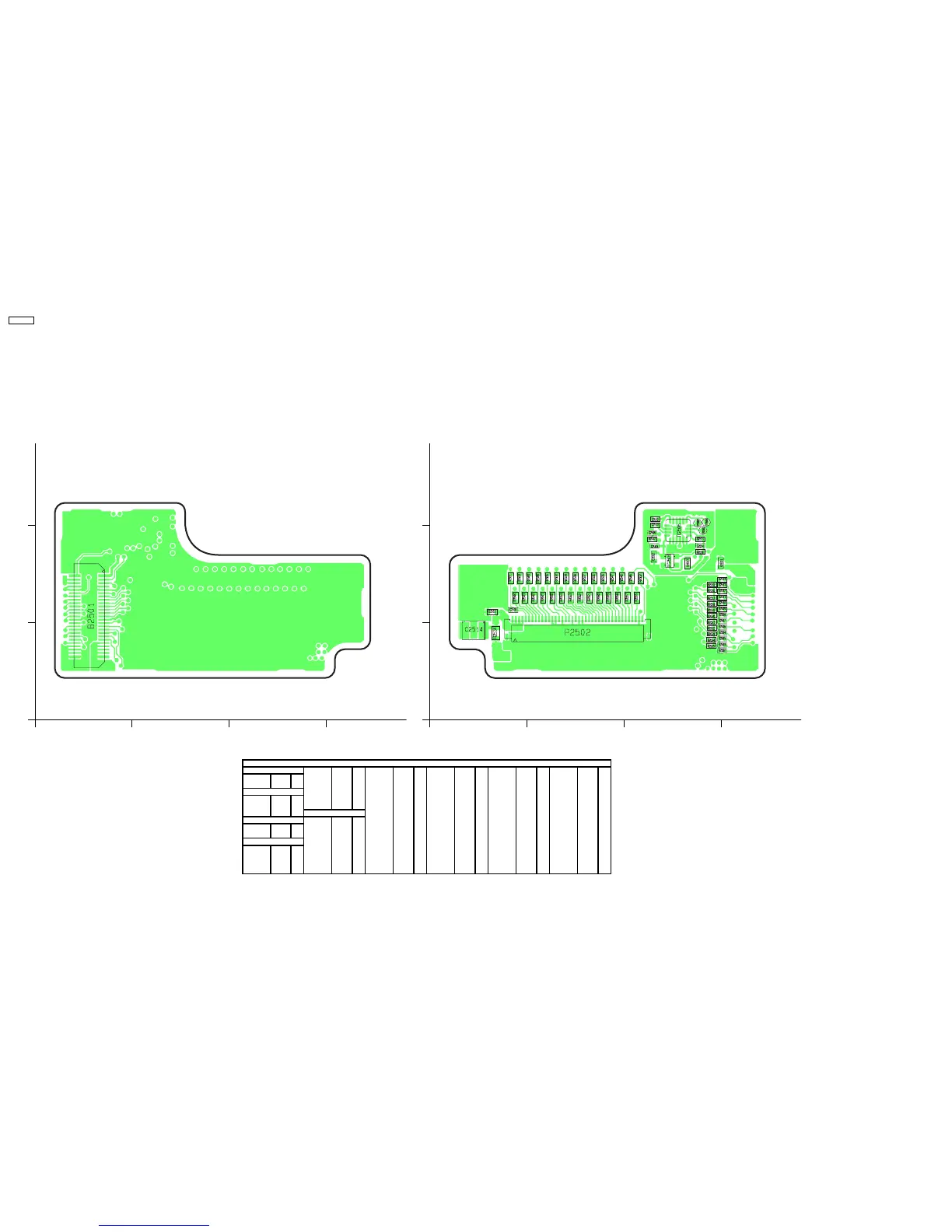

Parts Location
(COMPONENT SIDE)
LSJB8398
(FOIL SIDE)
LSJB8398
C2506 C-2 F R2510 C-2 F R2525 C-1 F R2544 A-2 F R2559 B-2 F
IC2501 C-2 F C2512 A-1 F R2511 C-2 F R2527 C-2 F R2545 C-2 F R2560 B-2 F
IC2506 C-2 F C2513 C-3 F R2512 C-2 F R2530 C-2 F R2546 B-2 F R2561 B-2 F
C2514 A-2 F R2513 C-2 F R2531 C-2 F R2547 B-2 F R2562 B-2 F
TP2501 C-3 F C2515 A-2 F R2514 C-2 F R2532 C-2 F R2548 B-2 F R2563 B-2 F
TP2502 C-3 F C2516 A-2 F R2515 C-2 F R2534 A-1 F R2549 A-2 F
TP2503 C-2 F R2516 C-2 F R2535 B-2 F R2550 A-2 F
R2502 C-1 F R2517 C-2 F R2536 B-2 F R2551 A-2 F
B2501 A-2 C R2503 C-1 F R2518 C-2 F R2537 B-2 F R2552 C-2 F
P2502 B-1 F R2504 C-1 F R2519 C-2 F R2538 B-2 F R2553 B-2 F
R2505 C-1 F R2520 C-2 F R2539 B-2 F R2554 B-2 F
C2501 C-2 F R2506 C-1 F R2521 C-2 F R2540 B-2 F R2555 B-2 F
C2502 C-2 F R2507 C-2 F R2522 C-1 F R2541 B-2 F R2556 C-2 F
C2503 C-2 F R2508 C-2 F R2523 C-1 F R2542 B-2 F R2557 C-2 F
C2504 C-2 F R2509 C-2 F R2524 C-1 F R2543 A-2 F R2558 B-2 F
Capasitors
Resistors
HDD RELAY P.C.B.
Inte
