Panasonic SDR-H20EE - 9 Measurements and Adjustments; Electrical Adjustment

9 Measurements and Adjustments
9.1. Electrical Adjustment
9.1.1. Initial Guideline

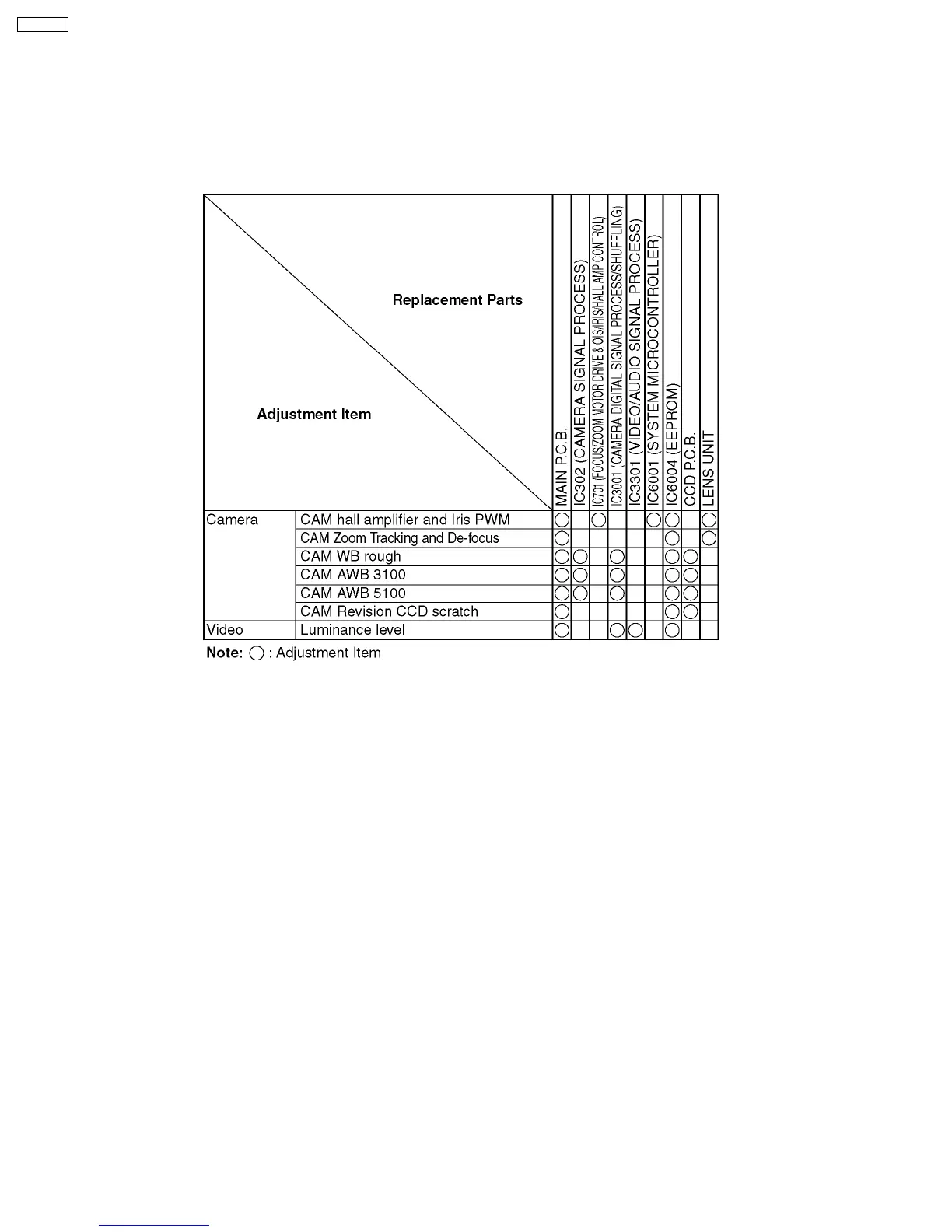

The table below shows which adjustments are necessary according to the unit parts and individual parts to be replaced. Make sure
to perform these adjustments shown below as necessary.
36
SDR-H20E
