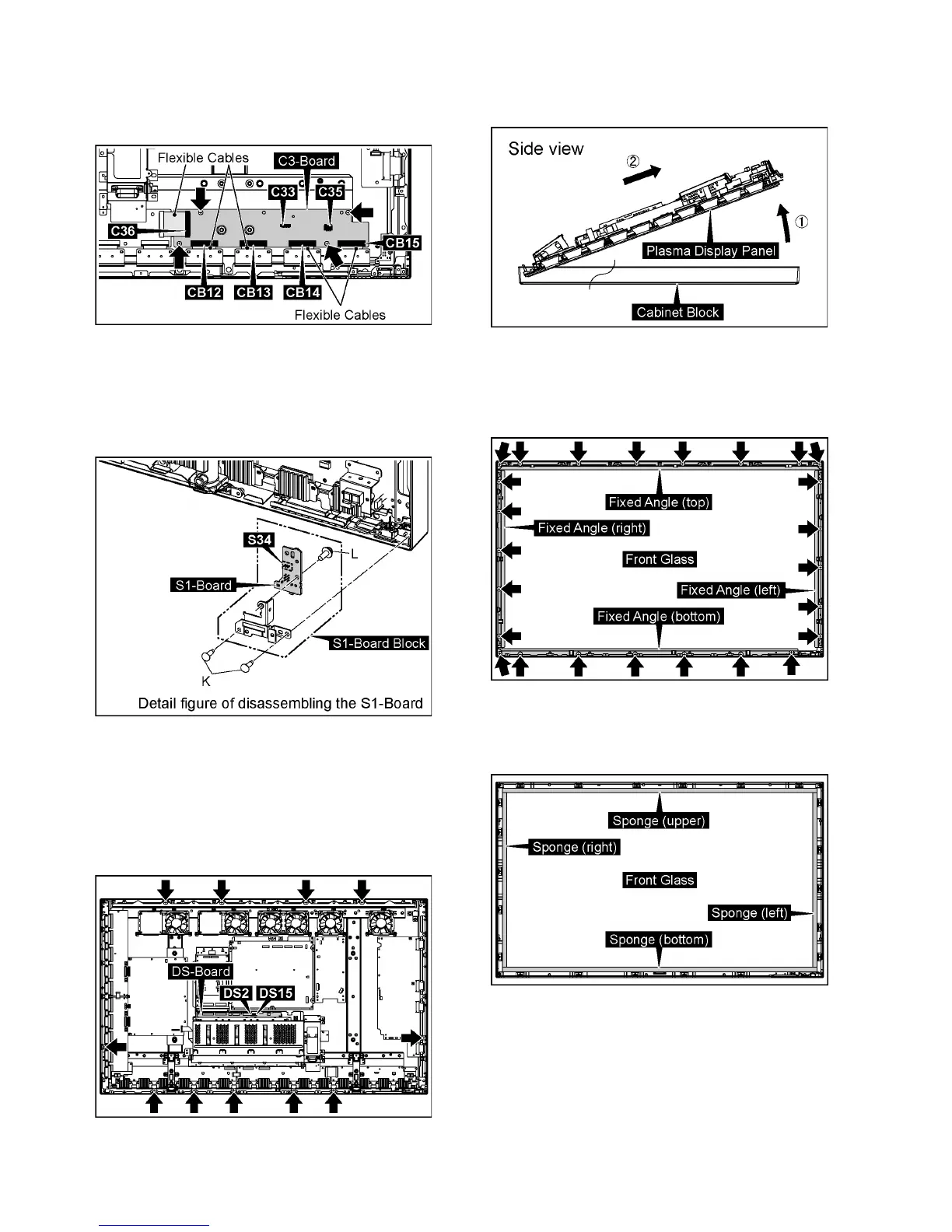

4. Disconnect the connector (C33, C35).
5. Remove the flexible cables from the connectors (C36,
CB12, CB13, CB14, CB15).
6. Remove 4 screws and then remove C3-Board.
8.18. Removal of S1-Board
1. Remove 2 screws (K) and then remove the S1-Board
Block.
2. Disconnect the connector (S34).
3. Remove 1 screw (L) and then remove S1-Board.
8.19. Removal of Front Glass, V1,
V2-Board and Cabinet
1. Remove the S1-Board Block.
(Refer to Removal of S1-Board)
2. Disconnect the connectors (DS2, DS15).
3. Remove 11 screws.
4. Pull the bottom of the Plasma Panel forward (arrow1).
5. Slide the Plasma Display Panel and then remove the
Plasma Panel (arrow2).
8.19.1. Removal of Front Glass
1. Remove 25 screws and then remove the Fixed Angle
(top, bottom, right, left).
2. Remove the Front Glass.
Note: when Front Glass is exchanged
• Along each fixed Angles of an upper and bottom, right
and left order and the cushion for the Front Glass is
pasted to the Front Glass.
Note
• The cushions are parts which cannot be recycled. Please
use the new article when you exchange the Front Glass.
