TH-50VX100U / TH-50VX100E

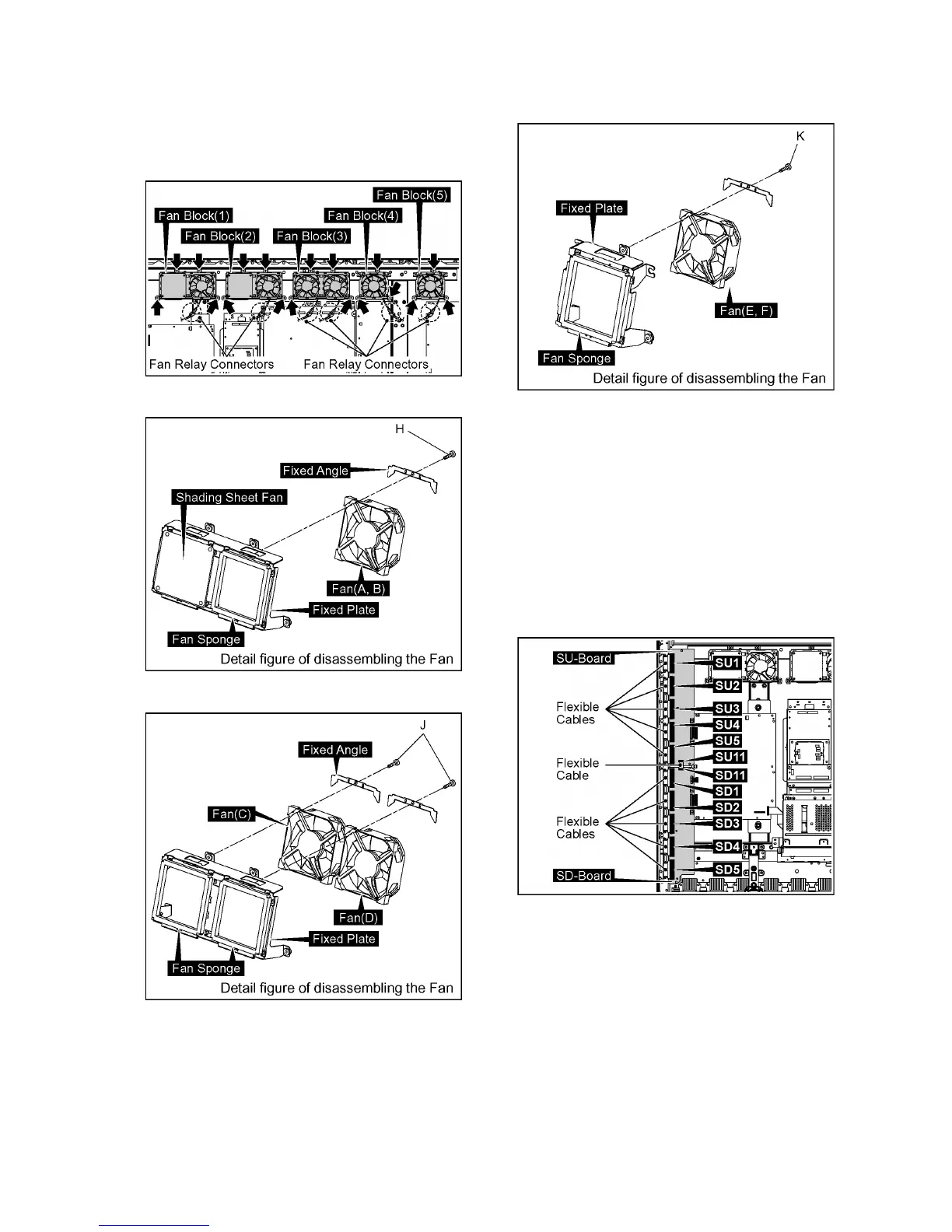

8.12. Removal of Fan
1. Disconnect the Fan Relay Connectors.
2. Remove 18 screws and then remove 5 Fan Blocks (1, 2,
3, 4 ,5).
3. Remove 1 screw (H) and then remove the Fans (A, B).
4. Remove 2 screws (J) and then remove the Fans (C, D).
5. Remove 1 screws (K) and then remove the Fans (E, F).
6. Reassemble the Fans in reverse order.
7. Stick the Fan Sponges around the Fan.
Note:
The Fan Sponge is not re-usable.
Please use a new one when Fan exchange.
8.13. Removal of SU-Board and SD-
Board
1. Remove the Speaker Terminal Block (R).
(Refer to Removal of H3-Board (L), (R))
2. Remove the flexible cables from the connectors (SU1,
SU2, SU3, SU4, SU5, SU11, SD1, SD2, SD3, SD4, SD5,
SD11).
