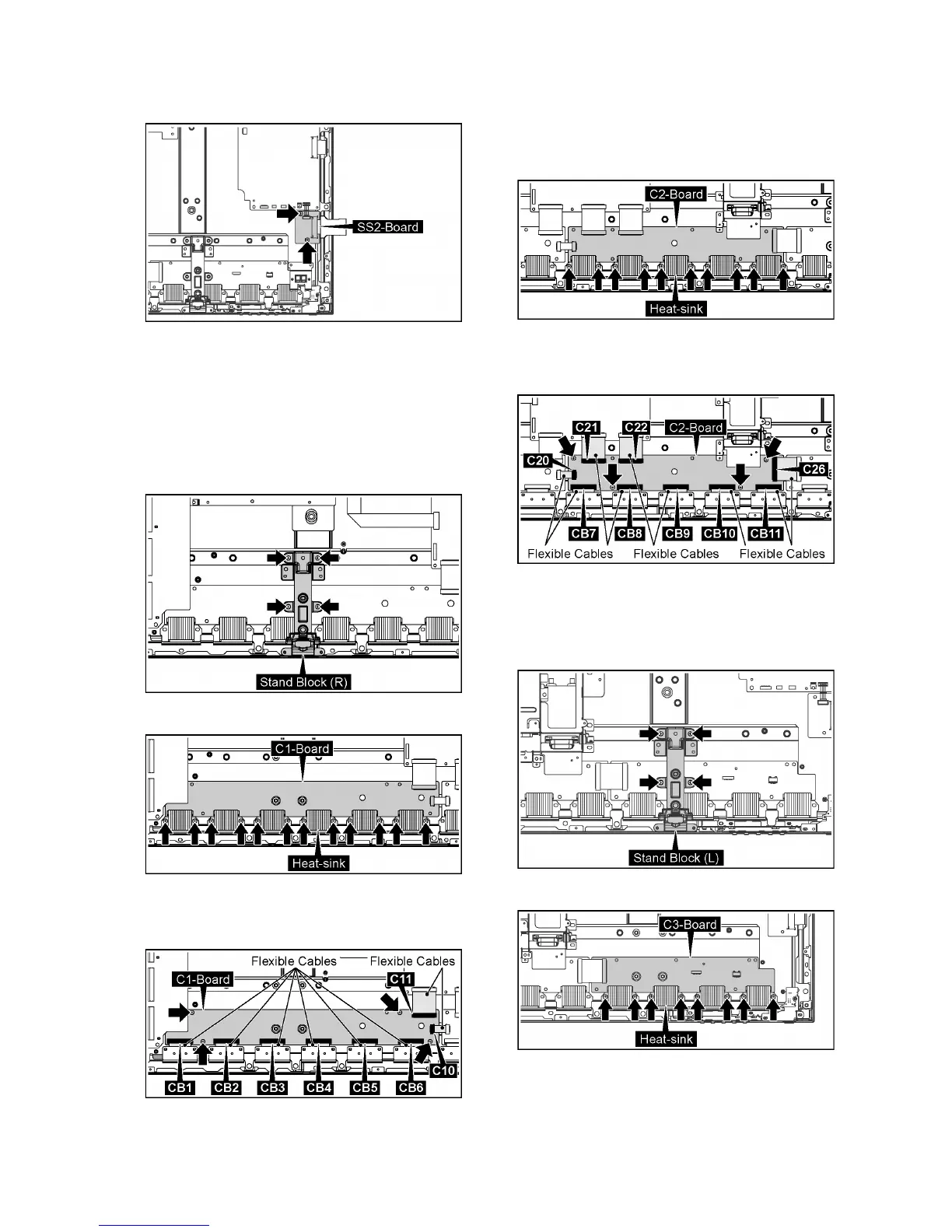

3. Remove 2 screws and then remove SS2-Board.
8.17. Removal of C1, C2, C3-Board
8.17.1. Removal of C1-Board
1. Remove the Slot Block.
(Refer to Removal of Slot Block).
2. Remove the Speaker Terminal Block (R).
(Refer to Removal of H3-Board (L), (R))
3. Remove 4 screws and then remove the Stand Block (R).
4. Remove 12 screws and then remove the Heat-sinks.
5. Remove the flexible cables from the connectors (C10,
C11, CB1, CB2, CB3, CB4, CB5, CB6).
6. Remove 4 screws and then remove C1-Board.
8.17.2. Removal of C2-Board
1. Remove the Slot Block.
(Refer to Removal of Slot Block).
2. Remove 10 screws and then remove the Heat-sinks.
3. Remove the flexible cables from the connectors (C20,
C21, C22, C26, CB7, CB8, CB9, CB10, CB11).
4. Remove 4 screws and then remove C2-Board.
8.17.3. Removal of C3-Board
1. Remove the Speaker Terminal Block (L).
(Refer to Removal of H3-Board (L), (R))
2. Remove 4 screws and then remove the Stand Block (L).
3. Remove 8 screws and then remove the Heat-sinks.
