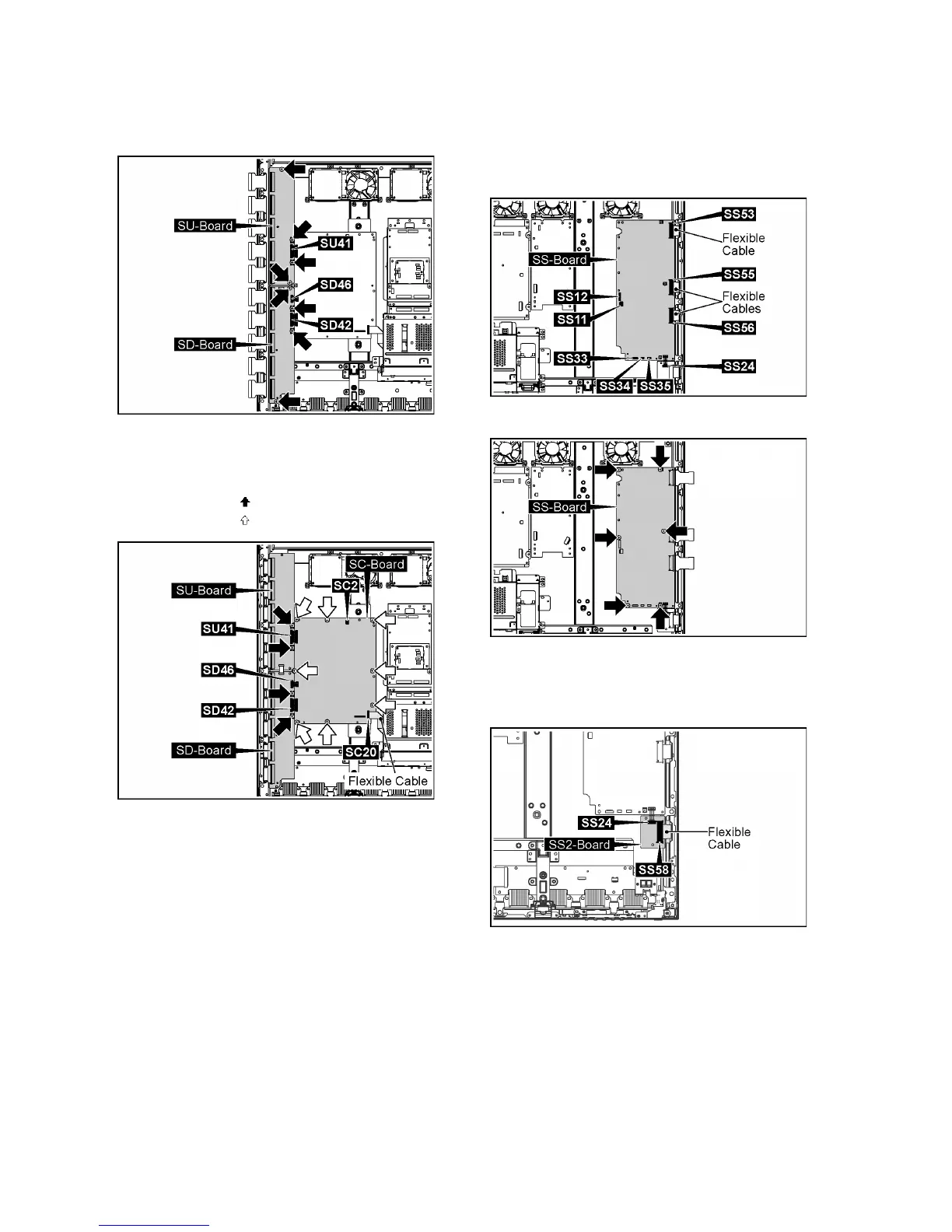

Panasonic TH-50VX100U - Removal of SC-Board; Removal of SS-Board; Removal of SS2-Board

24
TH-50VX100U / TH-50VX100E
3. Disconnect the connectors (SU41, SD42, SD46).
4. Remove 8 screws and then remove SU-Board and SD-
Board.
8.14. Removal of SC-Board
1. Disconnect the connectors (SC2, SU41, SD42, SD46).
2. Remove the flexible cable from the connector (SC20).
3. Remove 4 screws ( ).
4. Remove 8 screws ( ) and then remove SC-Board.
8.15. Removal of SS-Board
1. Disconnect the connectors (SS11, SS12, SS24, SS33,
SS34, SS35).
2. Remove the flexible cables from the connectors (SS53,
SS55, SS56).
3. Remove 6 screws and then remove SS-Board.
8.16. Removal of SS2-Board
1. Disconnect the connector (SS24).
2. Remove the flexible cable from the connector (SS58).
