Panasonic TH-55LFV8W

3
[INPUT] button
Choose the input source.
●
Used as [ENTER] in the On-Screen-Display menu.
4
[ ] button
Increase the adjustment while the OSD menu is
on, or increase the audio output level when the
OSD menu is off.
5
[ ] button
Decrease the adjustment while the OSD menu is
on, or decrease the audio output level when the
OSD menu is off.
6
[ ] button
Move the highlight bar up to adjust the selected
item while the OSD menu is on.
7
[ ] button
Move the highlight bar down to adjust the selected
item while the OSD menu is on.
8
[MENU] button
Return to the previous menu while the OSD menu
is on, or to activate the OSD menu when it is off.

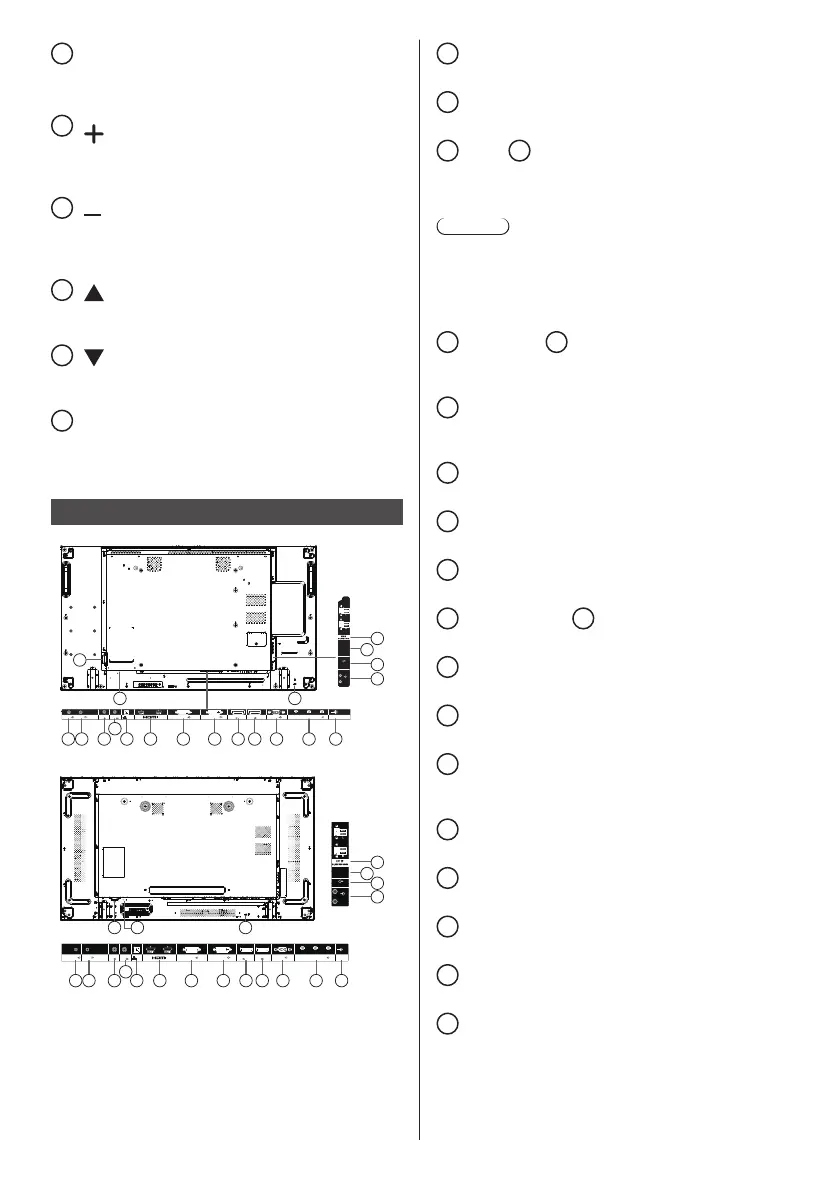

Interface
16
17
19
18
16
17
19
18
TH-49LFV8
TH-55LFV8
USB
AUDIO OUT
AUDIO 2
IN
R
L
1
DVI-D IN DVI-D OUT
SERIAL
IN
SERIAL
OUT
LAN
PC IN
Display Port
IN
Display Port
OUT
IR IN IR OUT
AUDIO1IN
COMPONENT/VIDEO IN
Y/VIDEO
PB/CB
PR/CR
Y/VIDEO
PB/CB
PR/CR
DVI-D IN DVI-D OUT COMPONENT/VIDEO IN
AUDIO1
IN
IR IN IR OUT
SERIAL
IN
SERIAL
OUT
LAN
PC IN
Display Port
IN
Display Port
OUT
USB
AUDIO OUT
>PC<
Q40G100003758A
AUDIO 2
IN
R
L
151413121110987
6
53 4
3 4 5
6
7 8 9 10 11 12 13 14 15
2 20
21 20
1
AC IN
AC power input from a wall outlet.
2
MAIN POWER SWITCH
Switch the main power on/off.
3
IR IN /
4
IR OUT
IR signal input / output for the loop-through
function.
Notes
●
The Display’s remote control sensor will stop
working if the jack [IR IN] is connected.
●
To remotely control your A/V device via
this Display, refer to the IR Pass Through
connection.
5
SERIAL IN /
6
SERIAL OUT
RS232C network input / output for the loop-through
function.
7
LAN
LAN control function for remote control signals
from the control centre.
8
HDMI1 IN / HDMI2 IN
HDMI video/audio input.
9
DVI IN
DVI-D video input.
10
DVI OUT (VGA OUT)
DVI or VGA video output.
11
DisplayPort IN /
12
DisplayPort OUT
DisplayPort video input / output.
13
PC IN (D-Sub)
VGA video input.
14
COMPONENT / VIDEO IN (BNC)
Component YPbPr/YCbCr, Video input.
15
AUDIO 1 IN
Audio input for PC and DVI source (3.5mm stereo
phone).
16
AUDIO 2 IN
Audio input from external AV device (RCA).
17
AUDIO OUT
Audio output to external AV device.
18
USB PORT
Connect your USB storage device.
19
SPEAKERS OUT
Audio output to external speakers.
20
SECURITY LOCK
Used for security and theft prevention.
English
14
