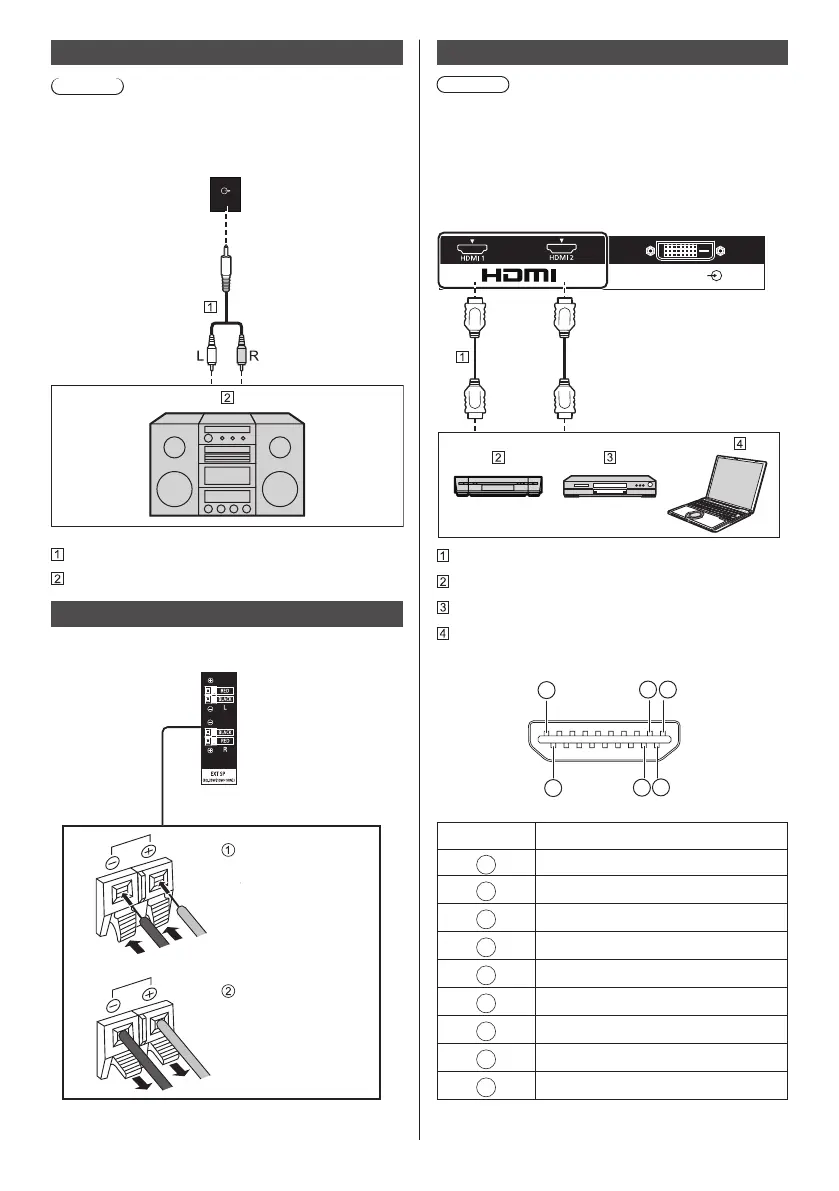

Panasonic TH-55LFV8W

AUDIO OUT connection
Notes
●
AUDIO OUT is an exclusive terminal for external
audio equipment.
●
Additional equipment and cables shown are not
supplied with this set.
AUDIO OUT
LINE in
Stereo audio cable (commercially available)
Audio equipment
Speaker connection
Pleaseusean8Ω/10Wspeaker.
Red
Black
While pressing the
lever, insert the core
wire.
Return the lever.
HDMI1, HDMI2 connection
Notes
●
Video equipment and HDMI cable shown are not
supplied with this unit.
●
Some HDMI equipment may not work with this
Display.
●
This Display does not support HDMI-CEC (HDMI
Consumer Electronics Control) (VIERA LINK).
DVI-D IN
cable (commercially available)
Video Cassette Recorder
DVD Player
PC
Pin assignments and signal names
19
3
1
4
2
18
Pin No. Signal Name
1
T.M.D.S. Data2 +
2
T.M.D.S. Data2 Shield
3
T.M.D.S. Data2 –
4
T.M.D.S. Data1 +
5
T.M.D.S. Data1 Shield
6
T.M.D.S. Data1 –
7
T.M.D.S. Data0 +
8
T.M.D.S. Data0 Shield
9
T.M.D.S. Data0 –
Shared with
COMPONENT/
RGB IN
Shared with
Video IN
Press the lever down
and insert the bared
end of the wire.
Return the lever.
Red
Black
