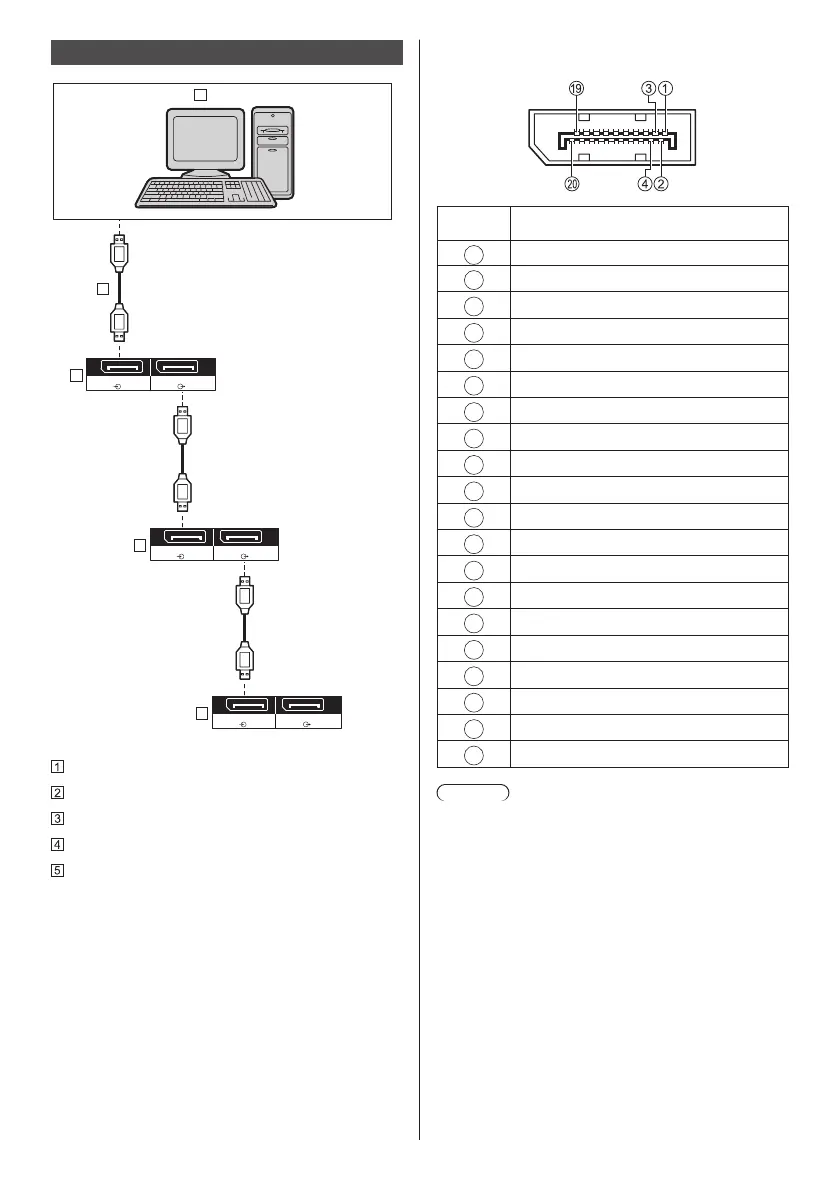

DisplayPort input/output connection
Display Port
IN
Display Port
OUT
Display Port
IN
Display Port
OUT
Display Port
IN
Display Port
OUT
3
2
1
4
5
DisplayPort cable (supplied)
PC with DisplayPort output
First display
Second display
Third display
Pin assignments and signal names for
DisplayPort
Pin No. Signal Name
1
Lane0(p)
2
GND
3
Lane0(n)
4
Lane1(p)
5
GND
6
Lane1(n)
7
Lane2(p)
8
GND
9
Lane2(n)
10
Lane3(p)
11
GND
12
Lane3(n)
13
Config1
14
Config2
15
AUX_CH (n)
16
GND
17
AUX_CH (p)
18
Hot Plug Detect
19
DP Power_Return
20
DP Power
Notes
●
DisplayPort Input supports DP++ only.
