Panasonic TH-65PB1E - Video Equipment Connection; VIDEO and COMPONENT; RGB in Connection

(8Ω,20W[10W+10W])
AUDIO
OUT
R
L
VIDEO
OUT
AUDIO
OUT
R
L
, Y , P B , P R
OUT
P
R
P B
Y
11
(8Ω,20W[10W+10W])
Connections

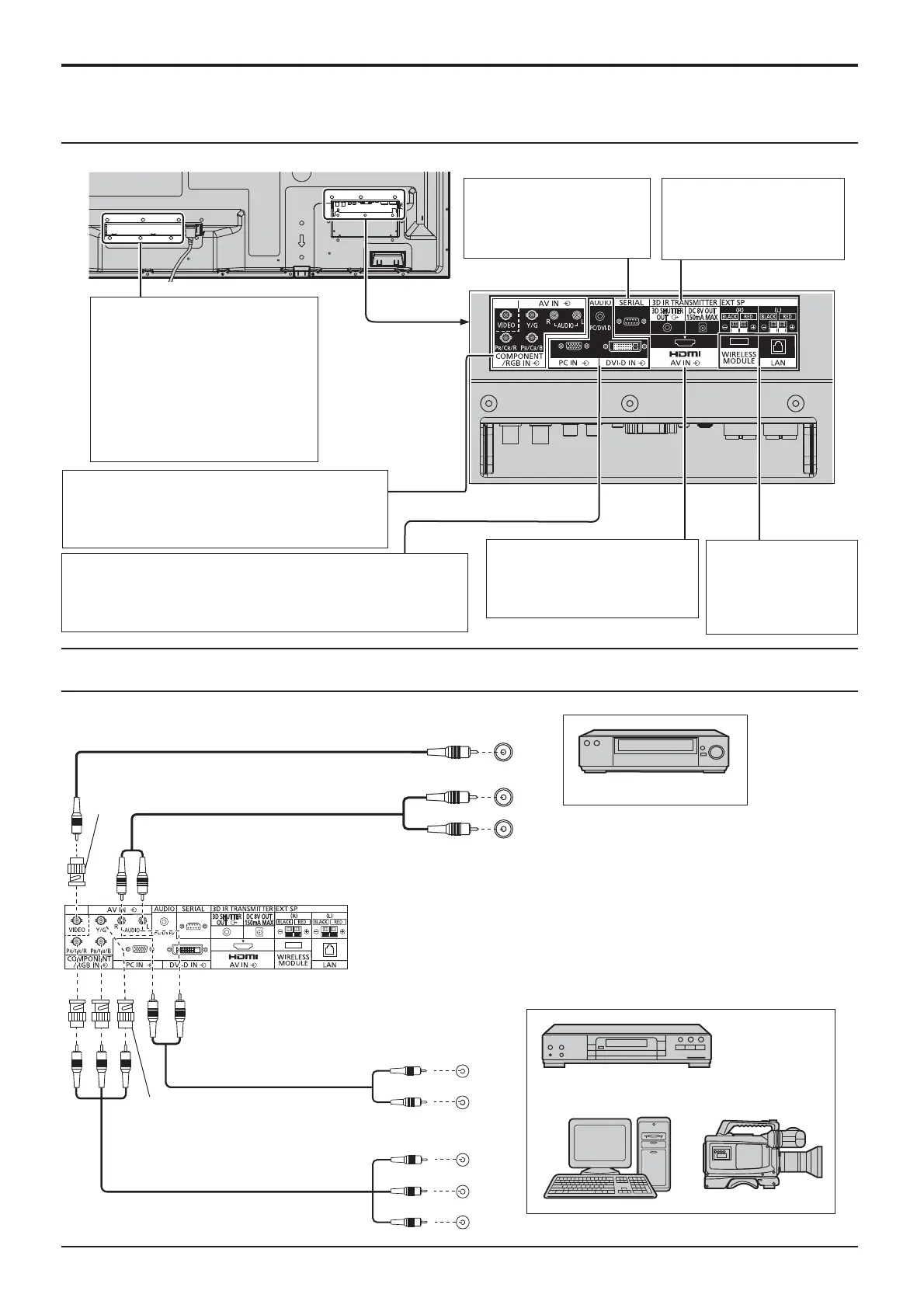

VIDEO and COMPONENT / RGB IN connection
Video equipment connection
SLOT: Terminal board (optional
accessories) insert slot
(see page 4)
Note:
The right side slot is for
terminal board with 2-slot width.
The terminal board with 1-slot
width does not function when
installed in the right side slot.
Terminals are on the bottom side of the Plasma Display.
3D IR TRANSMITTER:
Connect the 3D IR
TRANSMITTER
(optional accessory).
SERIAL: Control the
Plasma Display by
connecting to PC
(see page 14)
Notes:
• Change the “Component/RGB-in select” setting in the “Setup”
menu to “Component” (when Component signal connection) or
“RGB” (when RGB signal connection). (see page 51)
• Signals input to COMPONENT/RGB IN terminals correspond to
Sync on G or Sync on Y.
RCA-BNC
Adapter plug
AUDIO L-R:
Shared with VIDEO and
COMPONENT/RGB IN
RCA-BNC
Adapter plug
DVD Player
VCR
Computer
RGB Camcorder
Note:
Additional equipment, cables and adapter plugs
shown are not supplied with this set.
DVI-D IN: DVI-D Input Terminal (see page 12)
PC IN:
PC Input Terminal
Connect to video terminal of PC or equipment with Y,
P
B (C B ) and P R (C R ) output (see page 13).
AV IN (HDMI): HDMI Input
Terminal (see page 12)
Connect to video equipment
such as VCR or DVD player.
WIRELESS
MODULE, LAN:
Refer to “Operating
Instructions, Network
Operations”.
AV IN (VIDEO): Composite Video Input
Terminal (see below)
COMPONENT/RGB IN: Component/RGB Video
Input Terminal (see below)
