Panasonic TX-32LMD70FA - Page 39

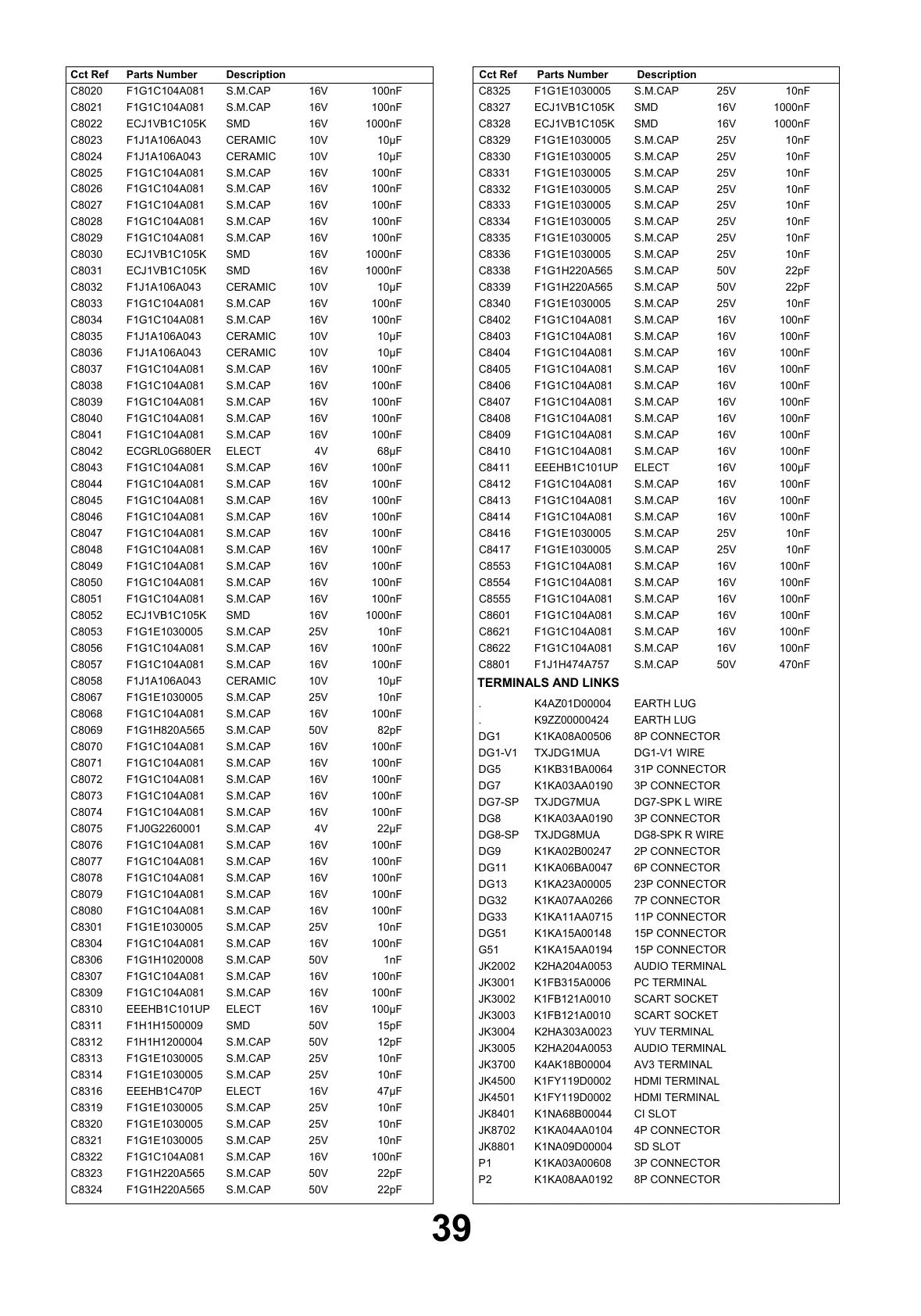

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
S.M.CAPC8020 F1G1C104A081 16V 100nF
S.M.CAPC8021 F1G1C104A081 16V 100nF
SMDC8022 ECJ1VB1C105K 16V 1000nF
CERAMICC8023 F1J1A106A043 10V 10µF
CERAMICC8024 F1J1A106A043 10V 10µF
S.M.CAPC8025 F1G1C104A081 16V 100nF
S.M.CAPC8026 F1G1C104A081 16V 100nF
S.M.CAPC8027 F1G1C104A081 16V 100nF
S.M.CAPC8028 F1G1C104A081 16V 100nF
S.M.CAPC8029 F1G1C104A081 16V 100nF
SMDC8030 ECJ1VB1C105K 16V 1000nF
SMDC8031 ECJ1VB1C105K 16V 1000nF
CERAMICC8032 F1J1A106A043 10V 10µF
S.M.CAPC8033 F1G1C104A081 16V 100nF
S.M.CAPC8034 F1G1C104A081 16V 100nF
CERAMICC8035 F1J1A106A043 10V 10µF
CERAMICC8036 F1J1A106A043 10V 10µF
S.M.CAPC8037 F1G1C104A081 16V 100nF
S.M.CAPC8038 F1G1C104A081 16V 100nF
S.M.CAPC8039 F1G1C104A081 16V 100nF
S.M.CAPC8040 F1G1C104A081 16V 100nF
S.M.CAPC8041 F1G1C104A081 16V 100nF
ELECTC8042 ECGRL0G680ER 4V 68µF
S.M.CAPC8043 F1G1C104A081 16V 100nF
S.M.CAPC8044 F1G1C104A081 16V 100nF
S.M.CAPC8045 F1G1C104A081 16V 100nF
S.M.CAPC8046 F1G1C104A081 16V 100nF
S.M.CAPC8047 F1G1C104A081 16V 100nF
S.M.CAPC8048 F1G1C104A081 16V 100nF
S.M.CAPC8049 F1G1C104A081 16V 100nF
S.M.CAPC8050 F1G1C104A081 16V 100nF
S.M.CAPC8051 F1G1C104A081 16V 100nF
SMDC8052 ECJ1VB1C105K 16V 1000nF
S.M.CAPC8053 F1G1E1030005 25V 10nF
S.M.CAPC8056 F1G1C104A081 16V 100nF
S.M.CAPC8057 F1G1C104A081 16V 100nF
CERAMICC8058 F1J1A106A043 10V 10µF
S.M.CAPC8067 F1G1E1030005 25V 10nF
S.M.CAPC8068 F1G1C104A081 16V 100nF
S.M.CAPC8069 F1G1H820A565 50V 82pF
S.M.CAPC8070 F1G1C104A081 16V 100nF
S.M.CAPC8071 F1G1C104A081 16V 100nF
S.M.CAPC8072 F1G1C104A081 16V 100nF
S.M.CAPC8073 F1G1C104A081 16V 100nF
S.M.CAPC8074 F1G1C104A081 16V 100nF
S.M.CAPC8075 F1J0G2260001 4V 22µF
S.M.CAPC8076 F1G1C104A081 16V 100nF
S.M.CAPC8077 F1G1C104A081 16V 100nF
S.M.CAPC8078 F1G1C104A081 16V 100nF
S.M.CAPC8079 F1G1C104A081 16V 100nF
S.M.CAP
C8080 F1G1C104A081 16V 100nF
S.M.CAPC8301 F1G
1E1030005 25V 10nF
S.M.CAPC8304 F1G1C104A081 16V 100nF
S.M.CAPC8306 F1G1H1020008 50V 1nF
S.M.CAPC8307 F1G1C104A081 16V 100nF
S.M.CAPC8309 F1G1C104A081 16V 100nF
ELECTC8310 EEEHB1C101UP 16V 100µF
SMDC8311 F1H1H1500009 50V 15pF
S.M.CAPC8312 F1H1H1200004 50V 12pF
S.M.CAPC8313 F1G1E1030005 25V 10nF
S.M.CAPC8314 F1G1E1030005 25V 10nF
ELECTC8316 EEEHB1C470P 16V 47µF
S.M.CAPC8319 F1G1E1030005 25V 10nF
S.M.CAPC8320 F1G1E1030005 25V 10nF
S.M.CAPC8321 F1G1E1030005 25V 10nF
S.M.CAPC8322 F1G1C104A081 16V 100nF
S.M.CAPC8323 F1G1H220A565 50V 22pF
S.M.CAPC8324 F1G1H220A565 50V 22pF
S.M.CAPC8325 F1G1E1030005 25V 10nF
SMDC8327 ECJ1VB1C105K 16V 1000nF
SMDC8328 ECJ1VB1C105K 16V 1000nF
S.M.CAPC8329 F1G1E1030005 25V 10nF
S.M.CAPC8330 F1G1E1030005 25V 10nF
S.M.CAPC8331 F1G1E1030005 25V 10nF
S.M.CAPC8332 F1G1E1030005 25V 10nF
S.M.CAPC8333 F1G1E1030005 25V 10nF
S.M.CAPC8334 F1G1E1030005 25V 10nF
S.M.CAPC8335 F1G1E1030005 25V 10nF
S.M.CAPC8336 F1G1E1030005 25V 10nF
S.M.CAPC8338 F1G1H220A565 50V 22pF
S.M.CAPC8339 F1G1H220A565 50V 22pF
S.M.CAPC8340 F1G1E1030005 25V 10nF
S.M.CAPC8402 F1G1C104A081 16V 100nF
S.M.CAPC8403 F1G1C104A081 16V 100nF
S.M.CAPC8404 F1G1C104A081 16V 100nF
S.M.CAPC8405 F1G1C104A081 16V 100nF
S.M.CAPC8406 F1G1C104A081 16V 100nF
S.M.CAPC8407 F1G1C104A081 16V 100nF
S.M.CAPC8408 F1G1C104A081 16V 100nF
S.M.CAPC8409 F1G1C104A081 16V 100nF
S.M.CAPC8410 F1G1C104A081 16V 100nF
ELECTC8411 EEEHB1C101UP 16V 100µF
S.M.CAPC8412 F1G1C104A081 16V 100nF
S.M.CAPC8413 F1G1C104A081 16V 100nF
S.M.CAPC8414 F1G1C104A081 16V 100nF
S.M.CAPC8416 F1G1E1030005 25V 10nF
S.M.CAPC8417 F1G1E1030005 25V 10nF
S.M.CAPC8553 F1G1C104A081 16V 100nF
S.M.CAPC8554 F1G1C104A081 16V 100nF
S.M.CAPC8555 F1G1C104A081 16V 100nF
S.M.CAPC8601 F1G1C104A081 16V 100nF
S.M.CAPC8621
F1G
1C104A081 16V 100nF
S.M.CAPC8622 F1G1C104A081 16V 100nF
S.M.CAPC8801 F1J1H474A757 50V 470nF
TERMINALS AND LINKS
EARTH LUG . K4AZ01D00004
EARTH LUG . K9ZZ00000424
8P CONNECTOR DG1 K1KA08A00506
DG1-V1 WIRE DG1-V1 TXJDG1MUA
31P CONNECTOR DG5 K1KB31BA0064
3P CONNECTOR DG7 K1KA03AA0190
DG7-SPK L WIRE DG7-SP TXJDG7MUA
3P CONNECTOR DG8 K1KA03AA0190
DG8-SPK R WIRE DG8-SP TXJDG8MUA
2P CONNECTOR DG9 K1KA02B00247
6P CONNECTOR DG11 K1KA06BA0047
23P CONNECTOR DG13 K1KA23A00005
7P CONNECTOR DG32 K1KA07AA0266
11P CONNECTOR DG33 K1KA11AA0715
15P CONNECTOR DG51 K1KA15A00148
15P CONNECTOR G51 K1KA15AA0194
AUDIO TERMINAL JK2002 K2HA204A0053
PC TERMINAL JK3001 K1FB315A0006
SCART SOCKET JK3002 K1FB121A0010
SCART SOCKET JK3003 K1FB121A0010
YUV TERMINAL JK3004 K2HA303A0023
AUDIO TERMINAL JK3005 K2HA204A0053
AV3 TERMINAL JK3700 K4AK18B00004
HDMI TERMINAL JK4500 K1FY119D0002
HDMI TERMINAL JK4501 K1FY119D0002
CI SLOT JK8401 K1NA68B00044
4P CONNECTOR JK8702 K1KA04AA0104
SD SLOT JK8801 K1NA09D00004
3P CONNECTOR P1 K1KA03A00608
8P CONNECTOR P2 K1KA08AA0192
