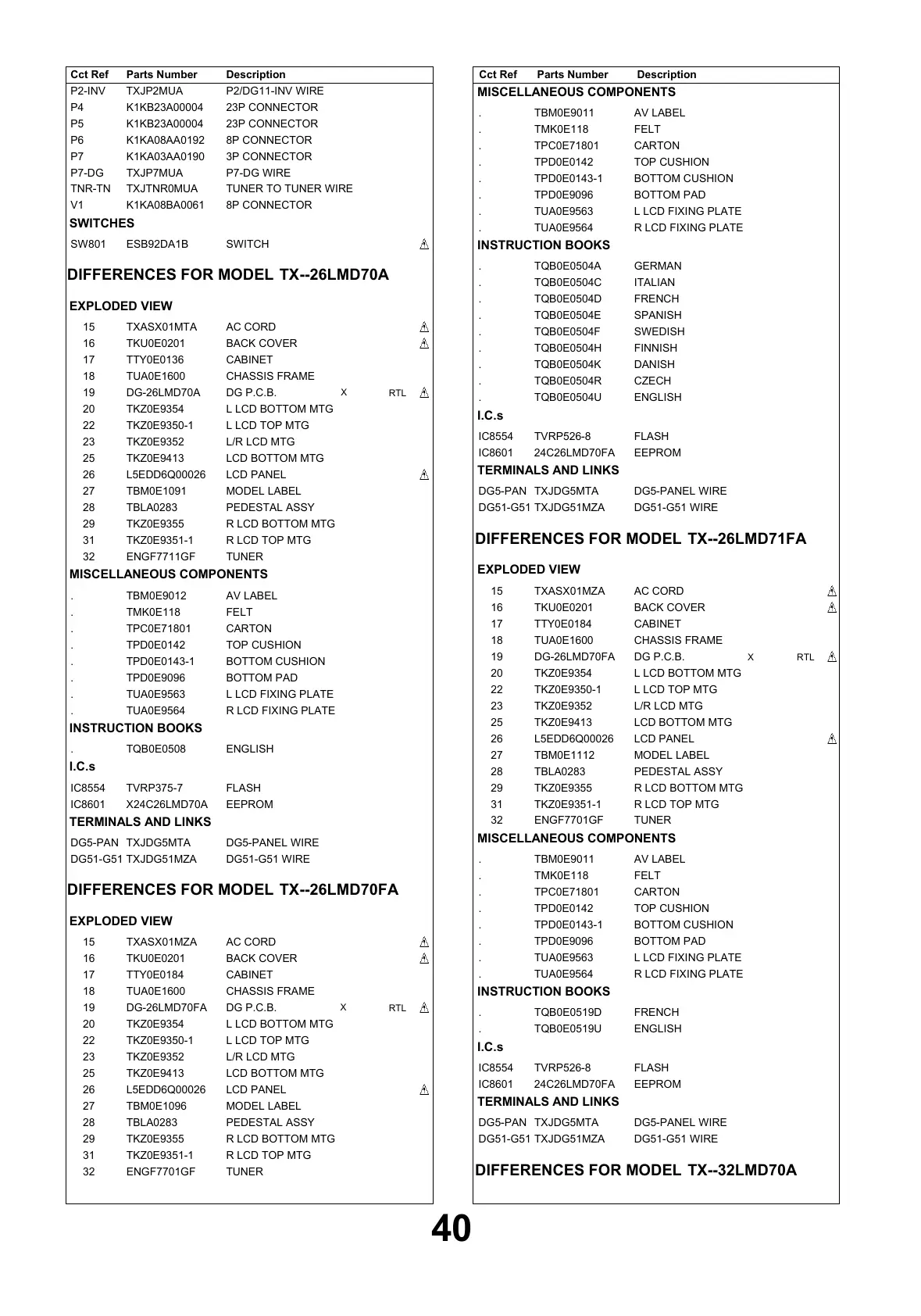

Panasonic TX-32LMD70FA - Page 40

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
P2/DG11-INV WIREP2-INV TXJP2MUA
23P CONNECTOR P4 K1KB23A00004
23P CONNECTOR P5 K1KB23A00004
8P CONNECTOR P6 K1KA08AA0192
3P CONNECTOR P7 K1KA03AA0190
P7-DG WIRE P7-DG TXJP7MUA
TUNER TO TUNER WIRETNR-TN TXJTNR0MUA
8P CONNECTOR V1 K1KA08BA0061
SWITCHES
SWITCH SW801 ESB92DA1B
DIFFERENCES FOR MODEL TX--26LMD70A
EXPLODED VIEW
AC CORD 15 TXASX01MTA
BACK COVER 16 TKU0E0201
CABINET 17 TTY0E0136
CHASSIS FRAME 18 TUA0E1600
DG P.C.B. 19 DG-26LMD70A
L LCD BOTTOM MTG 20 TKZ0E9354
L LCD TOP MTG 22 TKZ0E9350-1
L/R LCD MTG 23 TKZ0E9352
LCD BOTTOM MTG 25 TKZ0E9413
LCD PANEL 26 L5EDD6Q00026
MODEL LABEL 27 TBM0E1091
PEDESTAL ASSY 28 TBLA0283
R LCD BOTTOM MTG 29 TKZ0E9355
R LCD TOP MTG 31 TKZ0E9351-1
TUNER 32 ENGF7711GF
MISCELLANEOUS COMPONENTS
AV LABEL . TBM0E9012
FELT . TMK0E118
CARTON . TPC0E71801
TOP CUSHION . TPD0E0142
BOTTOM CUSHION . TPD0E0143-1
BOTTOM PAD . TPD0E9096
L LCD FIXING PLATE. TUA0E9563
R LCD FIXING PLATE. TUA0E9564
INSTRUCTION BOOKS
ENGLISH . TQB0E0508
I.C.s
FLASH IC8554 TVRP375-7
EEPROM IC8601 X24C26LMD70A
TERMINALS AND LINKS
DG5-PANEL WIRE DG5-PAN TXJDG5MTA
DG51-G51 WIRE DG51-G51 TXJDG51MZA
DIFFERENCES FOR MODEL TX--26LMD70FA
EXPLODED VIEW
AC CORD 15 TXASX01MZA
BACK COVER 16 TKU0E0201
CABINET 17 TTY0E0184
CHASSIS FRAME 18 TUA0E1600
DG P.C.B. 19 DG-26LMD70FA
L LCD BOTTOM MTG 20 TKZ0E9354
L LCD TOP MTG 22 TKZ0E9350-1
L/R LCD MTG 23 TKZ0E9352
LCD BOTTOM MTG 25 TKZ0E9413
LCD PANEL 26 L5EDD6Q00026
MODEL LABEL 27 TBM0E1096
PEDESTAL ASSY 28 TBLA0283
R LCD BOTTOM MTG 29 TKZ0E9355
R LCD TOP MTG 31 TKZ0E9351-1
TUNER 32 ENGF7701GF
MISCELLANEOUS COMPONENTS
AV LABEL . TBM0E9011
FELT . TMK0E118
CARTON . TPC0E71801
TOP CUSHION . TPD0E0142
BOTTOM CUSHION . TPD0E0143-1
BOTTOM PAD . TPD0E9096
L LCD FIXING PLATE. TUA0E9563
R LCD FIXING PLATE. TUA0E9564
INSTRUCTION BOOKS
GERMAN . TQB0E0504A
ITALIAN . TQB0E0504C
FRENCH . TQB0E0504D
SPANISH . TQB0E0504E
SWEDISH . TQB0E0504F
FINNISH . TQB0E0504H
DANISH . TQB0E0504K
CZECH . TQB0E0504R
ENGLISH . TQB0E0504U
I.C.s
FLASH IC8554 TVRP526-8
EEPROM IC8601 24C26LMD70FA
TERMINALS AND LINKS
DG5-PANEL WIRE DG5-PAN TXJDG5MTA
DG51-G51 WIRE DG51-G51 TXJDG51MZA
DIFFERENCES FOR MODEL TX--26LMD71FA
EXPLODED VIEW
AC CORD 15 TXASX01MZA
BACK COVER 16 TKU0E0201
CABINET 17 TTY0E0184
CHASSIS FRAME 18 TUA0E1600
DG P.C.B. 19 DG-26LMD70FA
L LCD BOTTOM MTG 20 TKZ0E9354
L LCD TOP MTG 22 TKZ0E9350-1
L/R LCD MTG 23 TKZ0E9352
LCD BOTTOM MTG 25 TKZ0E9413
LCD PANEL 26 L5EDD6Q00026
MODEL LABEL 27 TBM0E1112
PEDESTAL ASSY 28 TBLA0283
R LCD BOTTOM MTG 29 TKZ0E9355
R LCD TOP MTG 31 TKZ0E9351-1
TUNER 32 ENGF7701GF
MISCELLANEOUS COMPONENTS
AV LABEL . TBM0E9011
FELT . TMK0E118
CARTON . TPC0E71801
TOP CUSHION . TPD0E0142
BOTTOM CUSHION . TPD0E0143-1
BOTTOM PAD . TPD0E9096
L LCD FIXING PLATE. TUA0E9563
R LCD FIXING PLATE. TUA0E9564
INSTRUCTION BOOKS
FRENCH . TQB0E0519D
ENGLISH . TQB0E0519U
I.C.s
FLASH IC8554 TVRP526-8
EEPROM IC8601 24C26LMD70FA
TERMINALS AND LINKS
DG5-PANEL WIRE DG5-PAN TXJDG5MTA
DG51-G51 WIRE DG51-G51 TXJDG51MZA
DIFFERENCES FOR MODEL TX--32LMD70A
40
RTL
RTL
RTL
X
X
X
