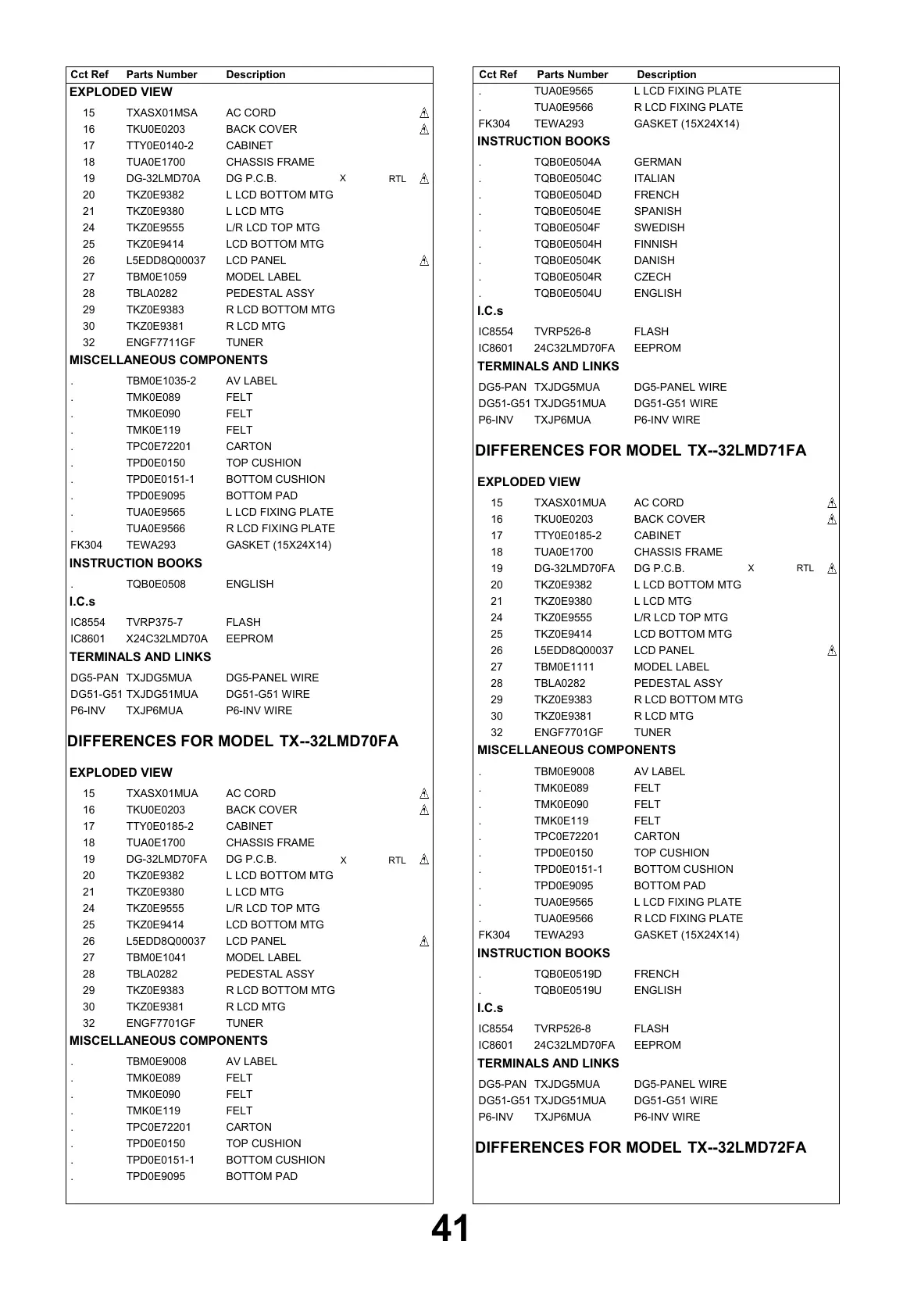

Panasonic TX-32LMD70FA - Page 41

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
EXPLODED VIEW
AC CORD 15 TXASX01MSA
BACK COVER 16 TKU0E0203
CABINET 17 TTY0E0140-2
CHASSIS FRAME 18 TUA0E1700
DG P.C.B. 19 DG-32LMD70A
L LCD BOTTOM MTG 20 TKZ0E9382
L LCD MTG 21 TKZ0E9380
L/R LCD TOP MTG 24 TKZ0E9555
LCD BOTTOM MTG 25 TKZ0E9414
LCD PANEL 26 L5EDD8Q00037
MODEL LABEL 27 TBM0E1059
PEDESTAL ASSY 28 TBLA0282
R LCD BOTTOM MTG 29 TKZ0E9383
R LCD MTG 30 TKZ0E9381
TUNER 32 ENGF7711GF
MISCELLANEOUS COMPONENTS
AV LABEL . TBM0E1035-2
FELT . TMK0E089
FELT . TMK0E090
FELT . TMK0E119
CARTON . TPC0E72201
TOP CUSHION . TPD0E0150
BOTTOM CUSHION . TPD0E0151-1
BOTTOM PAD . TPD0E9095
L LCD FIXING PLATE. TUA0E9565
R LCD FIXING PLATE. TUA0E9566
GASKET (15X24X14)FK304 TEWA293
INSTRUCTION BOOKS
ENGLISH . TQB0E0508
I.C.s
FLASH IC8554 TVRP375-7
EEPROM IC8601 X24C32LMD70A
TERMINALS AND LINKS
DG5-PANEL WIRE DG5-PAN TXJDG5MUA
DG51-G51 WIRE DG51-G51 TXJDG51MUA
P6-INV WIRE P6-INV TXJP6MUA
DIFFERENCES FOR MODEL TX--32LMD70FA
EXPLODED VIEW
AC CORD 15 TXASX01MUA
BACK COVER 16 TKU0E0203
CABINET 17 TTY0E0185-2
CHASSIS FRAME 18 TUA0E1700
DG P.C.B. 19 DG-32LMD70FA
L LCD BOTTOM MTG 20 TKZ0E9382
L LCD MTG 21 TKZ0E9380
L/R LCD TOP MTG 24 TKZ0E9555
LCD BOTTOM MTG 25 TKZ0E9414
LCD PANEL 26 L5EDD8Q00037
MODEL LABEL 27 TBM0E1041
PEDESTAL ASSY 28 TBLA0282
R LCD BOTTOM MTG 29 TKZ0E9383
R LCD MTG 30 TKZ0E9381
TUNER 32 ENGF7701GF
MISCELLANEOUS COMPONENTS
AV LABEL . TBM0E9008
FELT . TMK0E089
FELT . TMK0E090
FELT . TMK0E119
CARTON . TPC0E72201
TOP CUSHION . TPD0E0150
BOTTOM CUSHION . TPD0E0151-1
BOTTOM PAD . TPD0E9095
L LCD FIXING PLATE. TUA0E9565
R LCD FIXING PLATE. TUA0E9566
GASKET (15X24X14)FK304 TEWA293
INSTRUCTION BOOKS
GERMAN . TQB0E0504A
ITALIAN . TQB0E0504C
FRENCH . TQB0E0504D
SPANISH . TQB0E0504E
SWEDISH . TQB0E0504F
FINNISH . TQB0E0504H
DANISH . TQB0E0504K
CZECH . TQB0E0504R
ENGLISH . TQB0E0504U
I.C.s
FLASH IC8554 TVRP526-8
EEPROM IC8601 24C32LMD70FA
TERMINALS AND LINKS
DG5-PANEL WIRE DG5-PAN TXJDG5MUA
DG51-G51 WIRE DG51-G51 TXJDG51MUA
P6-INV WIRE P6-INV TXJP6MUA
DIFFERENCES FOR MODEL TX--32LMD71FA
EXPLODED VIEW
AC CORD 15 TXASX01MUA
BACK COVER 16 TKU0E0203
CABINET 17 TTY0E0185-2
CHASSIS FRAME 18 TUA0E1700
DG P.C.B. 19 DG-32LMD70FA
L LCD BOTTOM MTG 20 TKZ0E9382
L LCD MTG 21 TKZ0E9380
L/R LCD TOP MTG 24 TKZ0E9555
LCD BOTTOM MTG 25 TKZ0E9414
LCD PANEL 26 L5EDD8Q00037
MODEL LABEL 27 TBM0E1111
PEDESTAL ASSY 28 TBLA0282
R LCD BOTTOM MTG 29 TKZ0E9383
R LCD MTG 30 TKZ0E9381
TUNER 32 ENGF7701GF
MISCELLANEOUS COMPONENTS
AV LABEL . TBM0E9008
FELT . TMK0E089
FELT . TMK0E090
FELT . TMK0E119
CARTON . TPC0E72201
TOP CUSHION . TPD0E0150
BOTTOM CUSHION . TPD0E0151-1
BOTTOM PAD . TPD0E9095
L LCD FIXING PLATE. TUA0E9565
R LCD FIXING PLATE. TUA0E9566
GASKET (15X24X14)FK304 TEWA293
INSTRUCTION BOOKS
FRENCH . TQB0E0519D
ENGLISH . TQB0E0519U
I.C.s
FLASH IC8554 TVRP526-8
EEPROM IC8601 24C32LMD70FA
TERMINALS AND LINKS
DG5-PANEL WIRE DG5-PAN TXJDG5MUA
DG51-G51 WIRE DG51-G51 TXJDG51MUA
P6-INV WIRE P6-INV TXJP6MUA
DIFFERENCES FOR MODEL TX--32LMD72FA
41
RTL
RTL
RTLX
X
X
