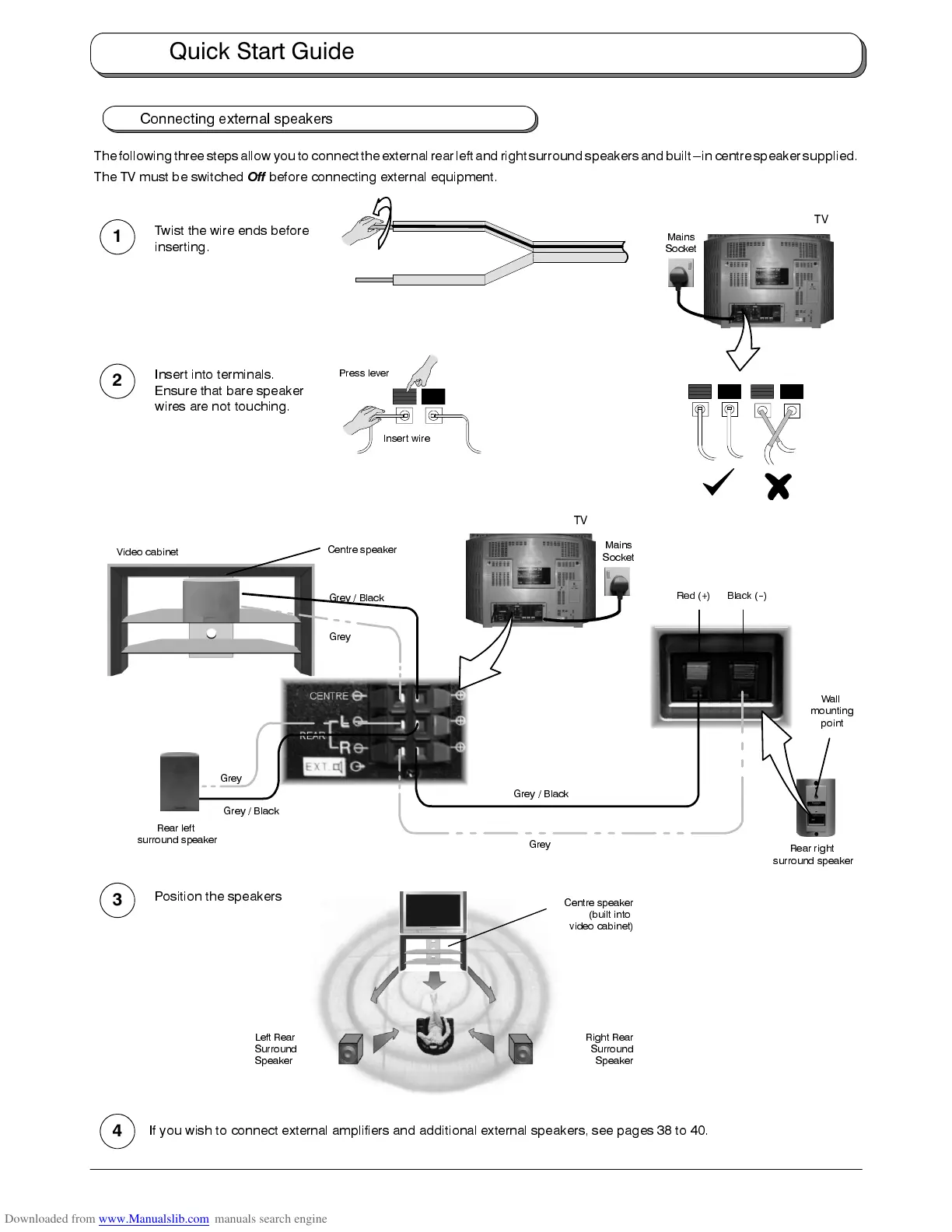

Connecting external speakers
The followingthree stepsallow you toconnect theexternal rear leftand rightsurround speakersand built---in centrespeaker supplied.
The TV must be switched
Off
before connecting external equipment.
Wall
mounting
point
Grey / Black
Grey
Black (--)Red (+)
Rear right
surround speaker
Rear left
surround speaker
Centre speaker
Grey
Grey
Grey / Black
Grey / Black
Press lever
Insert wire
Twist the wire ends before
inserting.
Insert into terminals.
Ensure that bare speaker
wires are not touching.
1
2
Position the speakers
Right Rear
Surround
Speaker
Left Rear
Surround
Speaker
Centre speaker
(built into
video cabinet)
3
Mains
Socket
TV
Mains
Socket
TV
Video cabinet
If you wish to connect external amplifiers and additional external speakers, see pages 38 to 40.
4
Quick Start Guide
