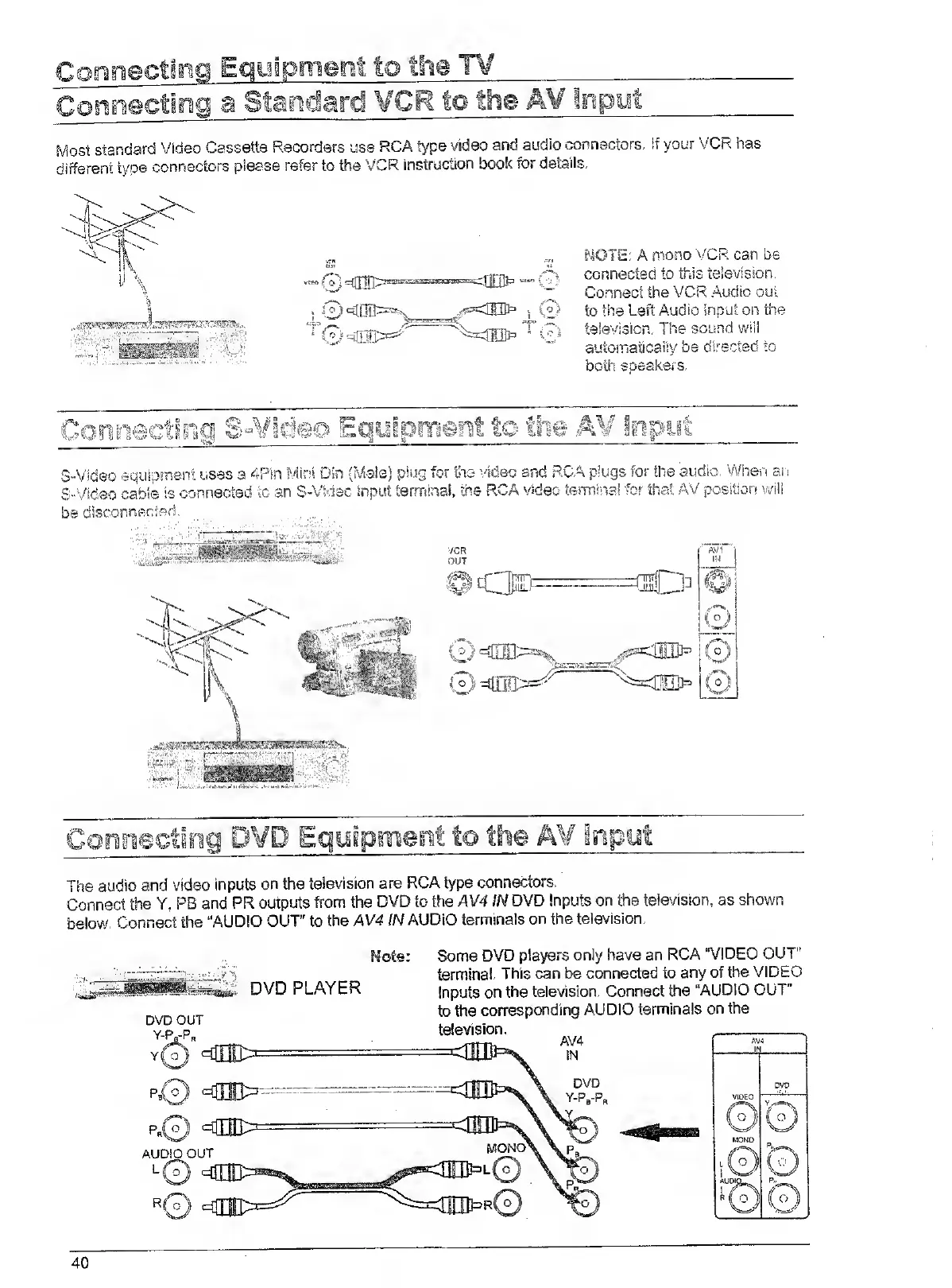

Most standard Video Cassette Recorders use RCA type video and audio connectors. If your VCR has
different type connectors please refer to the V^CR instrucdon book for details.
MOTE: A mono VCR can be
connected to this television.
Connect the VCR Audio out
« ©<nrh=^ @ to the Left Audio input on the
“•’0 €» tstevision. The sound will
' ■ autoiTiabcaiiy be directed to
both speakers.
.. ^
/MAI/ Atnvv^r
The audio and video inputs on the television are RCA type connectors.
Connect the Y, PB and PR outputs from the DVD to the AV4 IN DVD Inputs on the television, as shown
below. Connect the “AUDIO OUT” to the AV4 //V AUDIO terminals on the television.
Some DVD players only have an RCA "ViDEO OUT”
terminal. This can be connected to any of the VIDEO
Inputs on the television. Connect the “AUDIO OUT”
