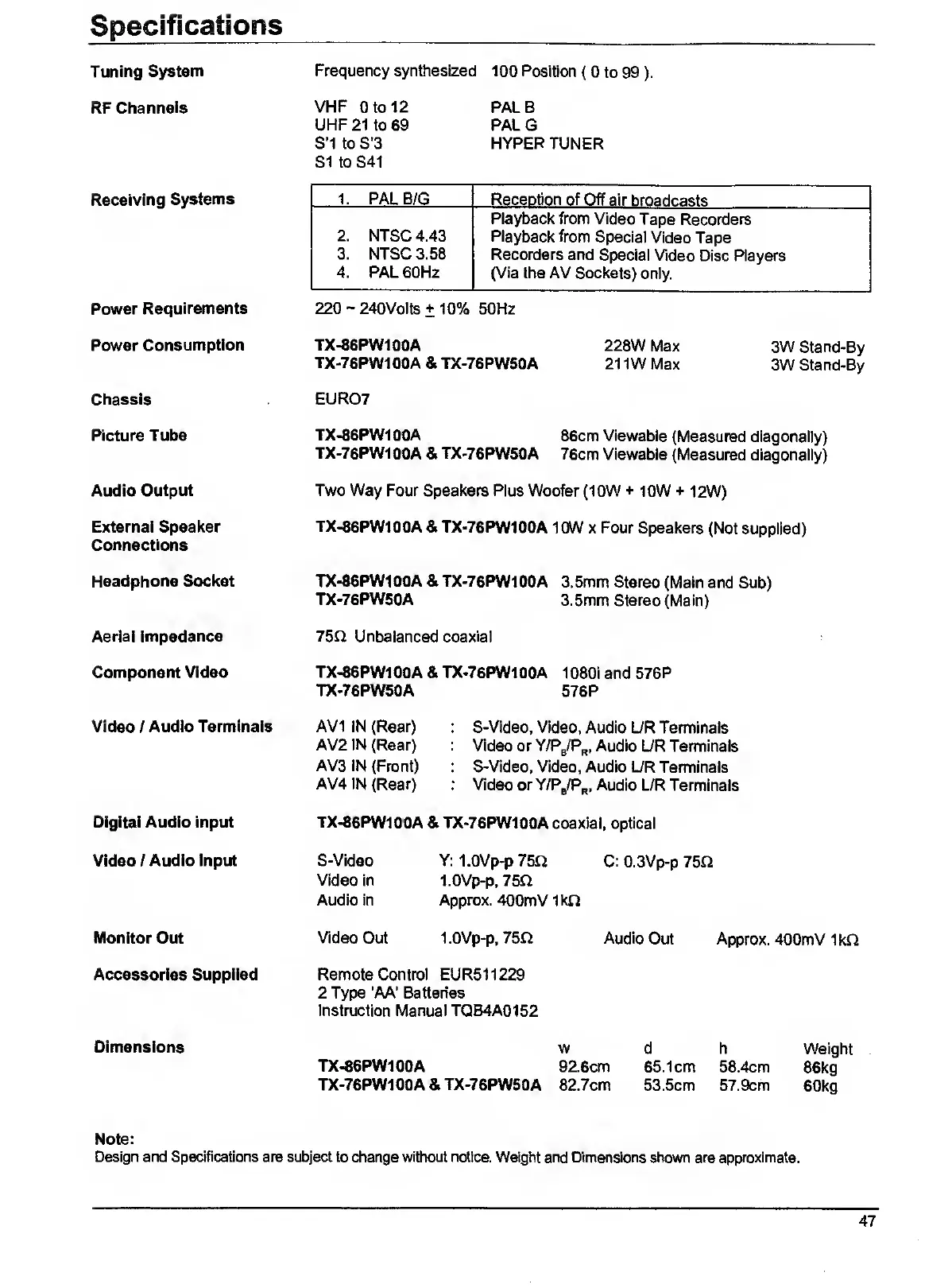

Panasonic TX-86PW100A - Page 47

cations
Tuning System
RF Channels
Receiving Systems
Power Requirements
Power Consumption
Chassis
Picture Tube
Audio Output
External Speaker
Connections
Headphone Socket
Aerial Impedance
Component Video
Video / Audio Terminals
Digital Audio input
Video / Audio Input
Monitor Out
Accessories Supplied
Dimensions
Frequency synthesized 100 Position {0 to 99 ).
VHF 0to12
UHF21 to 69
S’1 toS’3
SI toS41
PALB
PALG
HYPER TUNER
1. PALB/G
2. NTSC 4.43
3. NTSC 3.58
4. PAL 60Hz
Reception of Off air broadcasts _
Playback from Video Tape Recorders
Playback from Special Video Tape
Recorders and Special Video Disc Players
(Via the AV Sockets) only.
220-240Volts + 10% 50Hz
TX-86PW100A
TX-76PW100A & TX-76PW50A
EUR07
228W Max
211WMax
3W Stand-By
3W Stand-By
TX-86PW100A 86cm Viewable (Measured diagonally)
TX-76PW100A & TX-76PW50A 76cm Viewable (Measured diagonally)
Two Way Four Speakers Plus Woofer (10W + 10W + 12W)
TX-86PW100A & TX-76PW100A 10W x Four Speakers (Not supplied)
TX-86PW100A & TX-76PW100A 3.5mm Stereo (Main and Sub)
TX-76PW50A 3.5mm Stereo (Main)
75G Unbalanced coaxial
TX-86PW100A & TX-76PW100A 1080i and 576P
TX-76PW50A 576P
AVI IN (Rear) : S-Video, Video, Audio UR Terminals
AV2 IN (Rear) : Video or Y/Pg/P^^, Audio UR Terminals
AV3 IN (Front) S-Video, Video, Audio UR Terminals
AV4 IN (Rear) Video or YfPJP^, Audio L/R Terminals
TX-86PW100A & TX-76PW100A coaxial, optical
S-Video Y:1,0Vp-p75n C:0.3Vp-p75n
Video in I.OVp-p, 75n
Audio in Approx. 400mV Ikf^
Video Out I.OVp-p, 750 Audio Out Approx. 400mV IkO
Remote Control EUR511229
2 Type 'AA' Batteries
Instruction Manual TQB4A0152
w d h Weight
TX-86PW100A 92,6cm 65.1cm 58.4cm 86kg
TX-76PW100A&TX-76PW50A 82.7cm 53.5cm 57.9cm 60kg
Note:
Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.
47
