Panasonic WJ-HD220

14

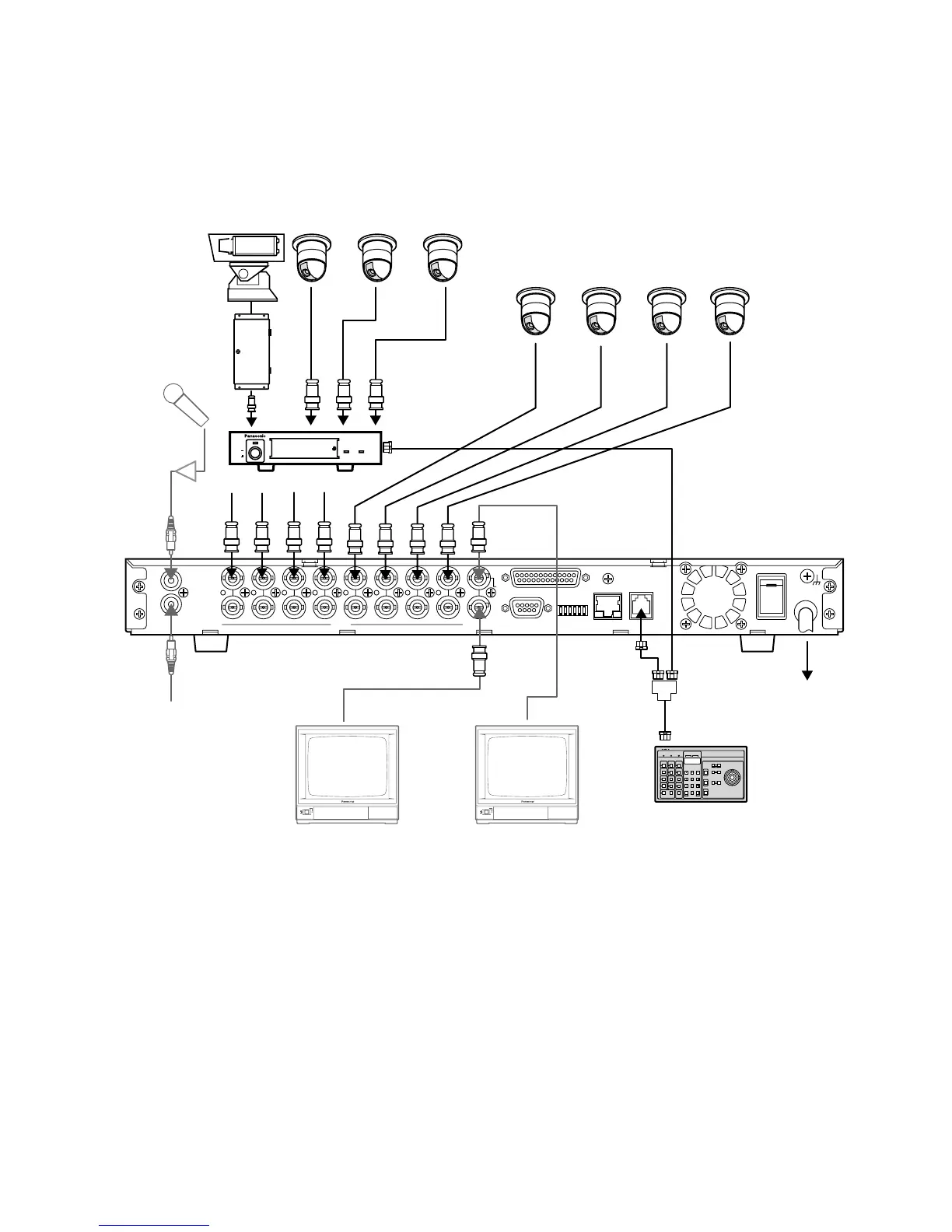

<PS
•
Data System>
Cameras equipped with data multiplex function are connected in combination with the system controllers and multiplex unit
compatible with PS
•
Data.
Note: Set DATA to ON in the CAMERA SYSTEM SETUP menu when connecting combination cameras to VIDEO IN 1-4.
SIGNAL GND
POWER
DATA10/100BASE-TMODERS-232C
MULTI
SCREEN OUT
SPOT
OUT
1
1
ALARM/REMOTE
OFF
ON
2
2
3
3
4
4
5
5
6
6
7
7
8
8
OUT
VIDEO
OUT
AUDIO
IN
IN
AC 120 V 60 Hz
Speakers via Amplifier
System Controller
System Controller
Compatible with PS-Data
Multiscreen Monitor Spot Monitor
POWER
ON
OFF
ALARM
Data Multiplex Unit WJ-MP204
ALARM
SUSPEND
Combination Cameras
Pan/Tilt Table
Receiver
Data Multiplex Unit
RS485 Cable
(WV-CA48)
Microphone
Amplifier
Combination Cameras
