■ Alarm List

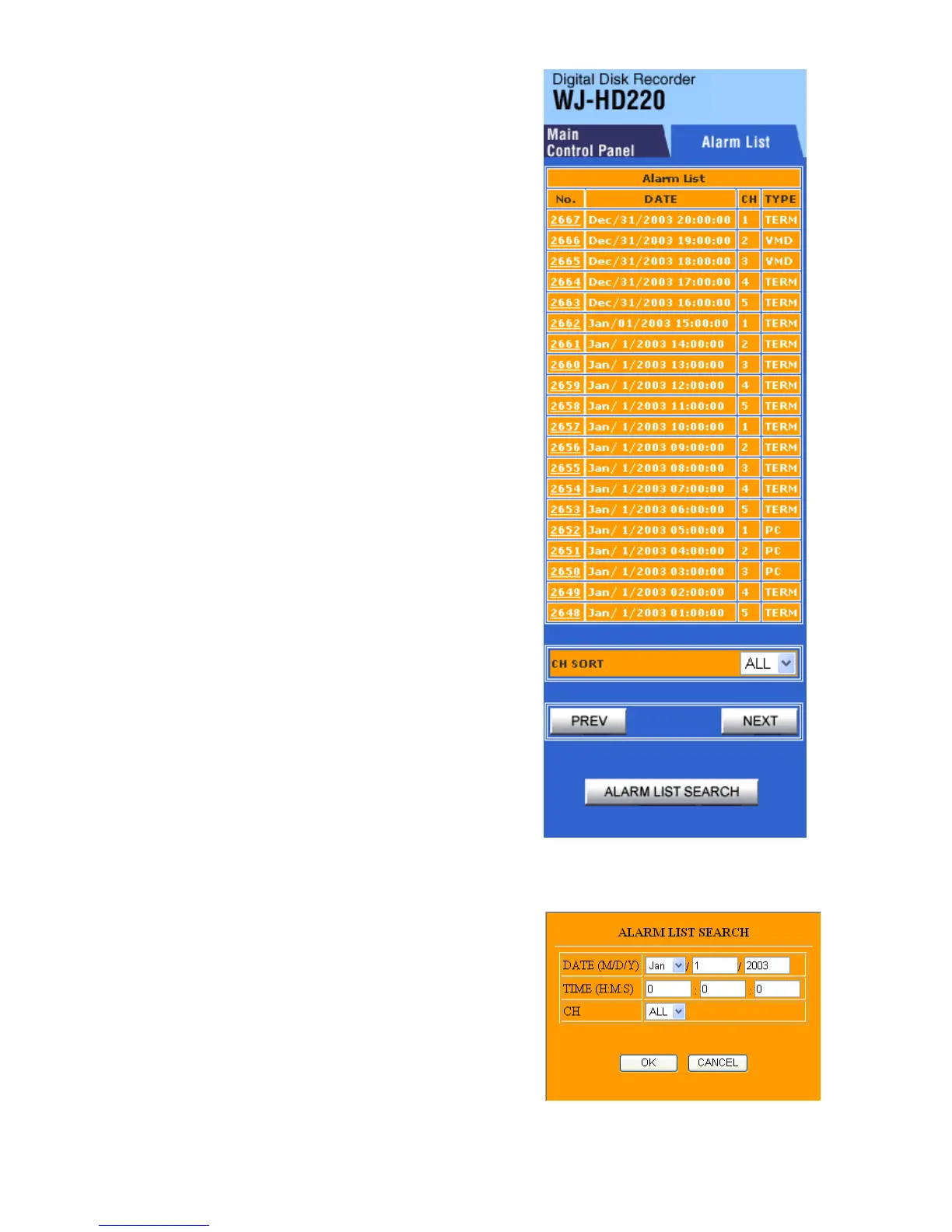

Clicking the alarm list tab on the main control panel opens
the list.
Alarm events are listed with event numbers, dates, channel
numbers, and event types.
Click a line to play back the recorded image of the event.
CH SORT rearranges the listing order to start with the
camera channel you specified. The listing will be sorted
by date and time if ALL is specified.
PREV button returns the list page to previous one.
NEXT button opens the next page.
Alarm List Search button opens the search dialog.
Event types are abbreviated as follows in the list.
TERM: The alarm terminal on the rear of the WJ-HD220
is activated.
VMD: The built-in Video Motion Detector operates.
PC: The recorder received an alarm from a PC.
Specify the month, day, year, and time of the event you
wish to search. If other than ALL is selected, only images of
the specified channel will be displayed.
Click the [OK] button. The dialog box disappears, and the
closest event will be displayed.
Note: Searching may take 18 seconds at worst particularly
when the recorder runs simultaneous recording and
playback, and/or when the targeted image is of small
size.
