80

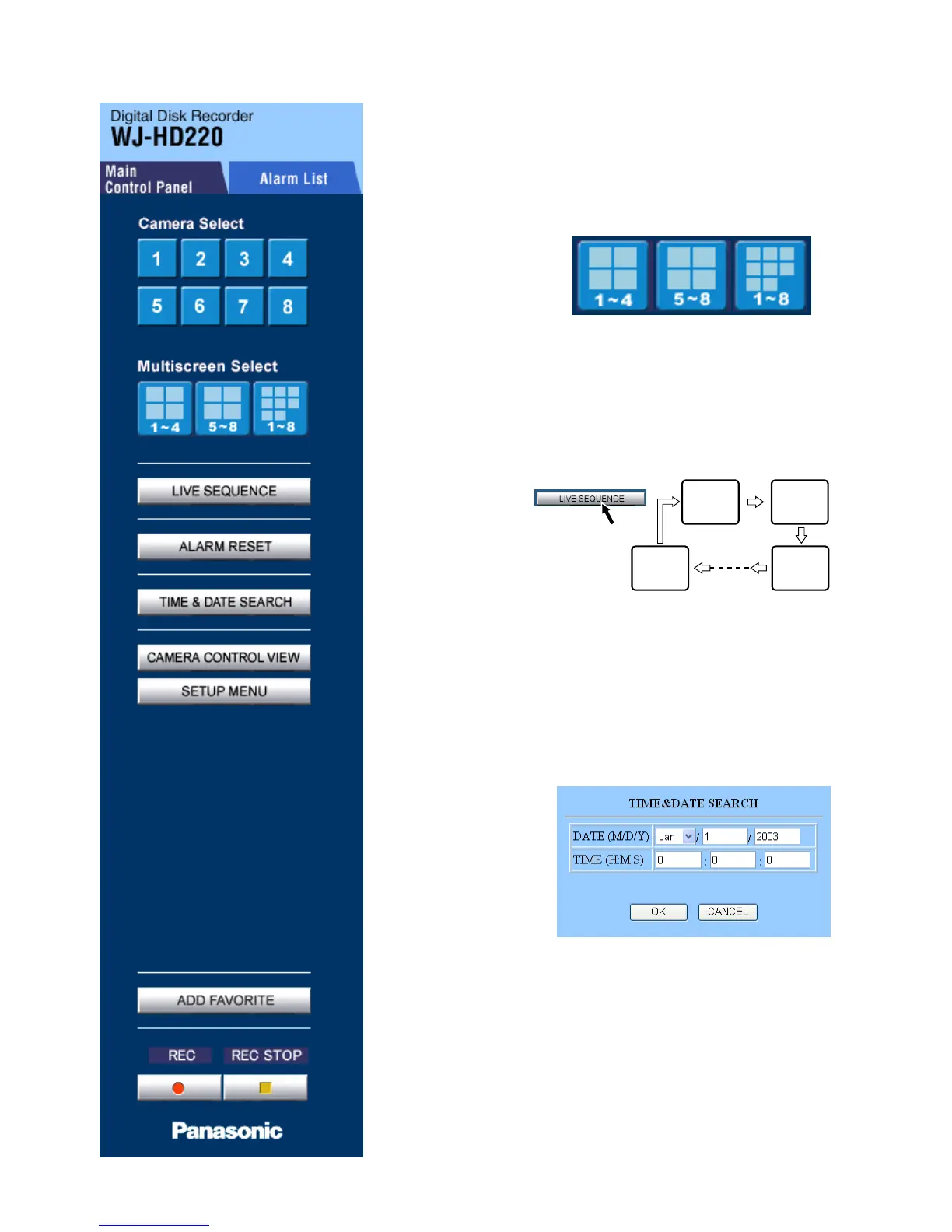

■ Main Control Panel
8 Camera Selection Button (Camera Select)
Click any of the buttons.
The selected camera channel will be displayed in the
image area.
8 Multiscreen Selection Button (Multiscreen Select)
Clicking the button displays the respective multiscreen.
8 Live Sequence Button (LIVE SEQUENCE)
Clicking the [LIVE SEQUENCE] button runs a series of
live images in the preset sequence and for the preset
display time.
8 Alarm Reset Button (ALARM RESET)
The activated alarm event is reset.
8 Time & Date Search Button (TIME&DATE
SEARCH)
Clicking the button will display the time and date search
dialog.
1. Specify the date and time.
2. Click the [OK] button.
The image will be searched, and displayed in the
image area.
Note: Searching may take 18 seconds at worst particu-
larly when the recorder runs simultaneous recording
and playback, and/or when the targeted image is of
small size.
