Panasonic WJ-HD220

20
DIP Switch Setting

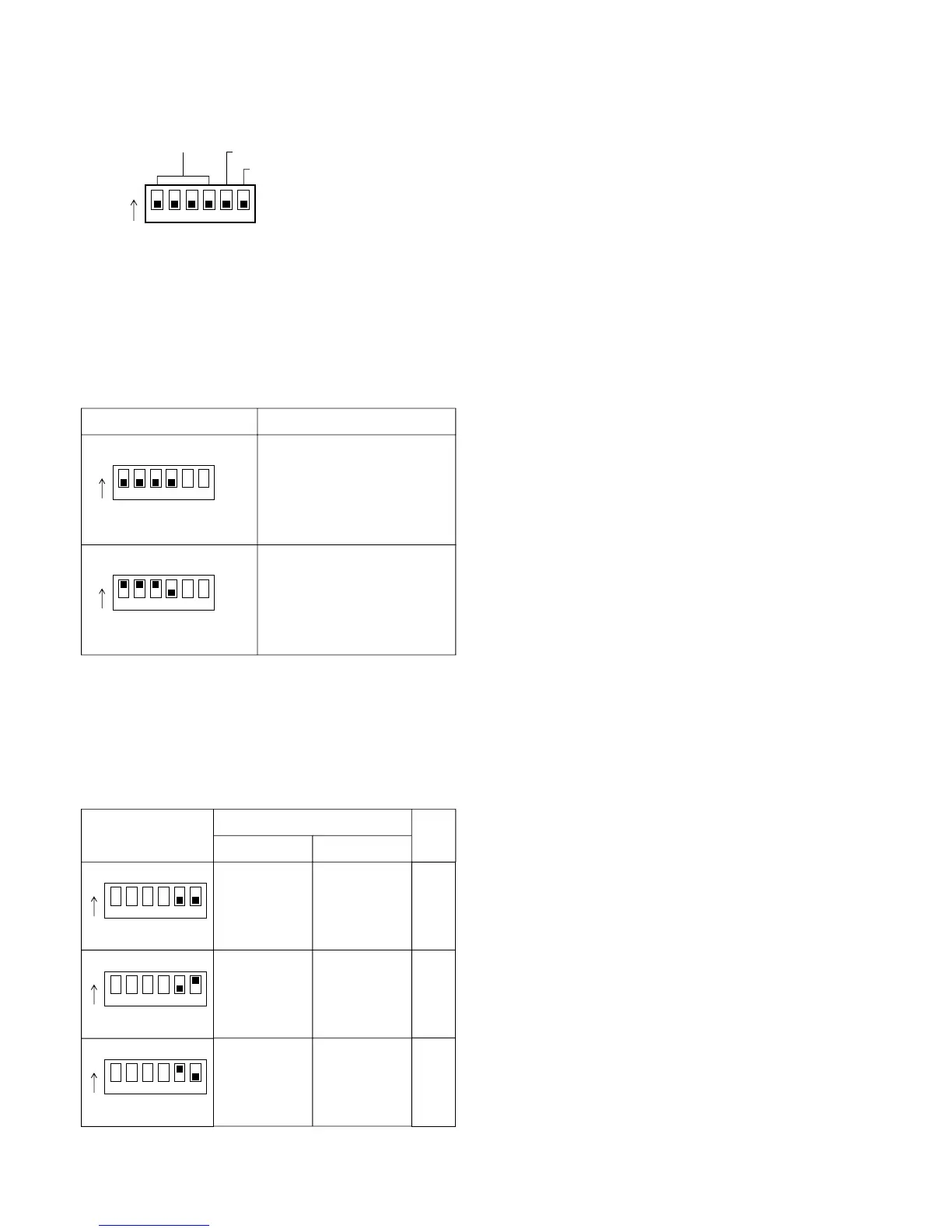

The 6-bit DIP switch is used as follows.
#1 through #4: System mode setup
#5 and #6: DATA port termination
■ System Mode
■ DATA Port Termination
Termination switch positions depend on the system compo-
sition.
MODE
1 2 3 4 5 6
ON
Termination 2
Termination 1
System Mode
Setup
MODE
1 2 3 4 5 6
ON
MODE
1 2 3 4 5 6
ON
Switch Position Mode
Normal operation mode
Initializing HTML contents
MODE
1 2 3 4 5 6
ON
MODE
1 2 3 4 5 6
ON
MODE
1 2 3 4 5 6
ON
Switch Position
System Composition with:
System Controller
Yes
Yes
<Case 1>
Other System
Devices
Note
Yes
No
<Case 2>
No
Yes
<Case 3>
Note: Use only the switch combinations shown in the table
above.
