Panasonic WJ-HD220

16

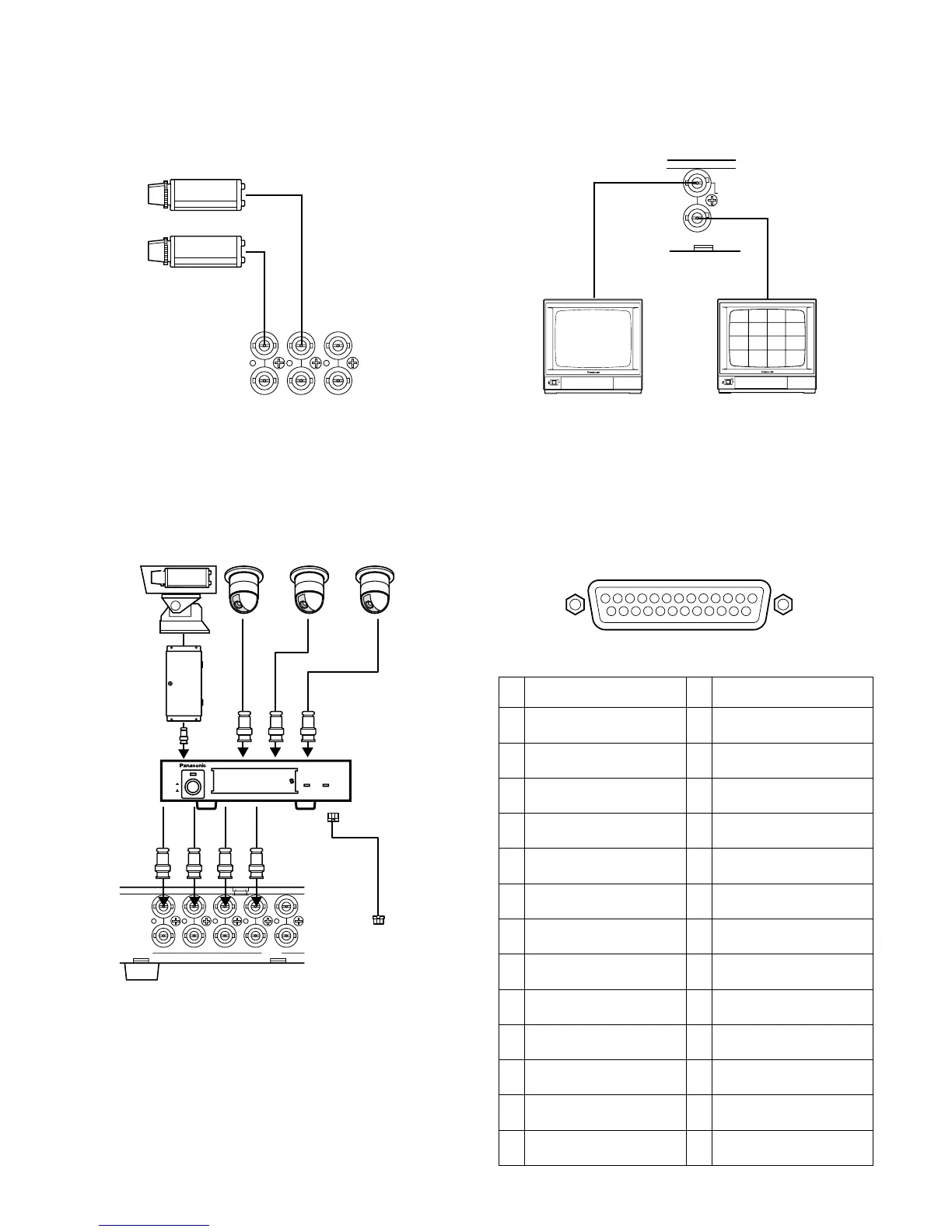

■ Connection with the Camera
Site
● System Camera Connection
Connect system cameras to VIDEO IN 5-8.
● Data-multiplex Camera Connection
Connect combination cameras directly to VIDEO IN 1-4.
When connecting to VIDEO IN 5-8, use a Data Multiplex
Unit as shown below.
■ Connection with the Monitors
Connect the spot and multiscreen monitors.
■ ALARM/REMOTE Connection
A 25-pin connector is used to accept and supply control
signals.
4
4
5
5
6
6
7
7
8
8
OUT
VIDEO
IN
DATA
RS485 Cable
POWER
ON
OFF
ALARM
Data Multiplex Unit WJ-MP204
ALARM
SUSPEND
Combination Cameras
Pan/Tilt Table
Receiver
Data Multiplex
Unit
6
6
7
7
8
8
OUT
IN
ON
OFF
POWER
ON
OFF
POWER
Spot Monitor
Multiscreen Monitor
Disk Recorder
WJ-HD220
MULTI
SCREEN OUT
SPOT
OUT
Pin
#
1
13
14
25
ALARM/REMOTE
Designation
1
2
3
4
5
6
7
8
9
10
11
12
13
Alarm Reset In
Alarm In 1
Alarm In 2
Alarm Recovery Out *1
Alarm Recovery Out 2
Alarm Out 1
Alarm Out 2 *2
Disk End Out
Warning Out
Alarm In 3
Alarm In 4
REC Status Out
Time Adjust In
Pin
#
14
15
16
17
18
19
20
21
22
23
24
25
Designation
Time Adjust Out
Alarm In 5
Alarm In 6
Alarm In 7
Alarm In 8
Signal GND
Signal GND
Play Status Out
EXT REC MODE In
No Connection
Sequence In
Sequence Out
